OMB.5900 Barracuda 10dBi 5.9GHz C-V2X Omnidirectional Outdoor Antenna

OMB.5900.B10F21

5.9GHz C-V2X Omnidirectional, Collinear Dipole Antenna
5850MHz to 5925MHz
10dBi Peak Gain
Robust IP65 Rated Enclosure
Connector: N-type Female
Wall/Pole Mount Bracket Included
Dimensions: 550 * ø24mm
Weight: 245g
RoHS & REACH Compliant

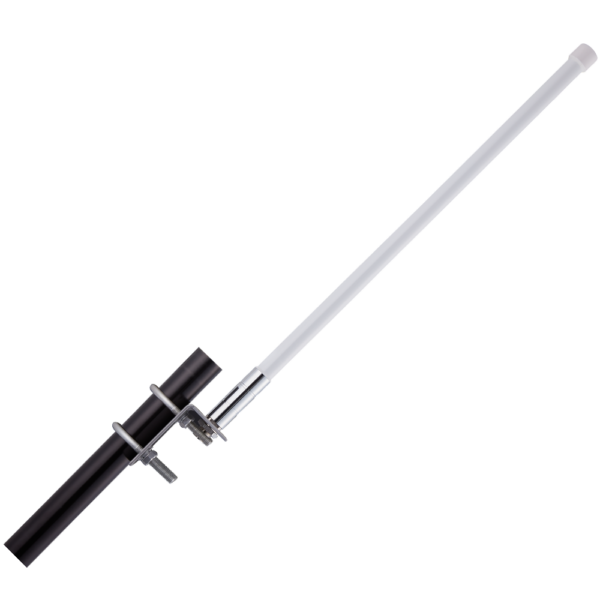

Image OMB.5900.B10F21

OMB.5900.B10F21

OMB.5900 Barracuda 10dBi 5.9GHz C-V2X Omnidirectional Outdoor Antenna

Overview
C-V2X Omnidirectional Antenna

The OMB.5900.B10F21 is a C-V2X (Cellular Vehicle to X) Antenna. It is a fibreglass omnidirectional outdoor antenna designed to operate in the 5.9 GHz band. This antenna’s collinear dipole design allows it to radiate uniformly in the azimuth with a high gain (10dBi peak gain), providing coverage over long distances and minimizing the number of cells or nodes needed in a network.

The OMB.5900 is designed for C-V2X, the communications medium of choice for active safety V2V systems and also covers DSRC (Dedicated Short Range Communications) and supports high speed, low latency, and short-range V2V/V2X wireless communications.

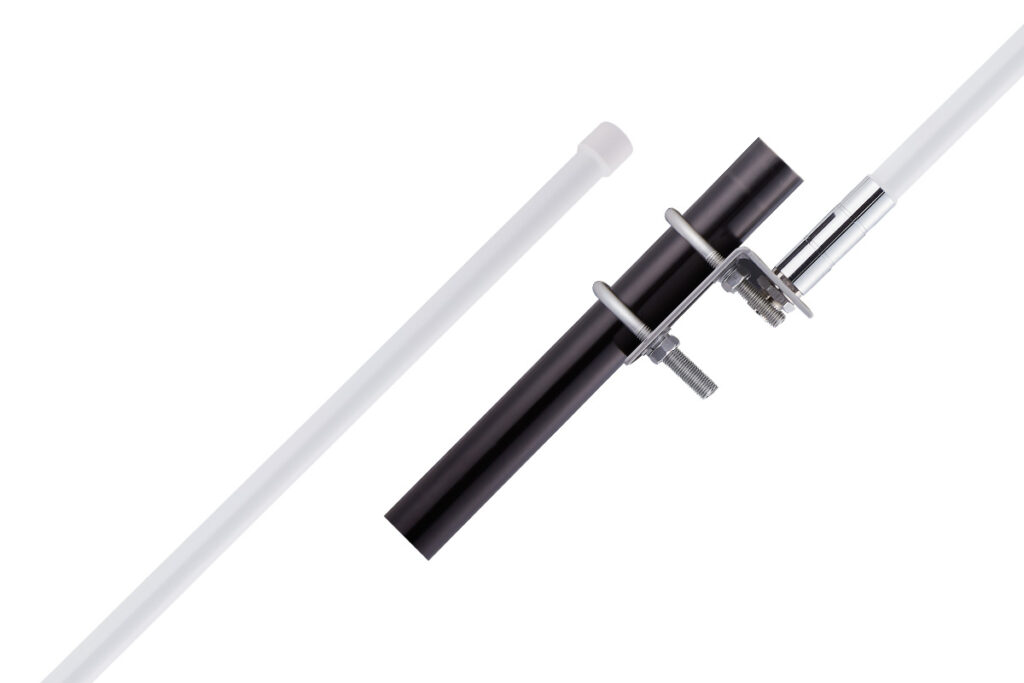

The UV-resistant fibreglass housing makes the OMB.5900 more robust and safer than the traditional whip antenna and allows it to operate in a variety of harsh environments. It is also designed to withstand high wind load. The integrated aluminium mounting bracket is perfect for directly mounting the antenna onto a pole or a wall.

The connector is an industry-standard N-type female. The connector can be customized subject to MOQ. Other frequencies and gains are available. Contact Taoglas regional sales office for more details.

Technical Specification
Name Value
Antenna Type C-V2X
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall/Pole
Termination Style Connector
Antenna Connector Type N Type
Cable Type None
Connector Body Style Straight
Polarity Vertical
Frequency Range 5850MHz To 5925MHz
Connector Polarity Normal
Packaging Tube, Carbon
VSWR 1.3
IP Rating IP65
RoHS Yes
Gain 10.2
Length (mm) 24
Width (mm) 24
Height (mm) 550
Weight (g) 245
