Barracuda OMB.915.B12F21 915MHz 10dBi Omni Antenna with N Type Female Connector and U-Bolt

OMB.915.B12F21

Suitable to use in Robust Outdoor Environment
Dimensions: Height 2240mm
N-Type Female Connector
Wall and Pole Mount
RoHS and REACH Compliant

Image OMB.915.B12F21

OMB.915.B12F21

Barracuda OMB.915.B12F21 915MHz 10dBi Omni Antenna with N Type Female Connector and U-Bolt

Overview
Sigfox, LoRa Omnidirectional Outdoor Antenna

The Barracuda OMB.915.B12F21 is a fiberglass Sigfox, LoRa omnidirectional outdoor antenna, operating in the 915MHz ISM band and is designed to offer long-distance coverage. The antenna is designed for applications such as metering, industrial & environmental monitoring, remote asset monitoring and mesh network applications. The 915MHz band is one of the most widely used license-free ISM bands. Typical applications are in SigFox, LoRa and LPWA networks.

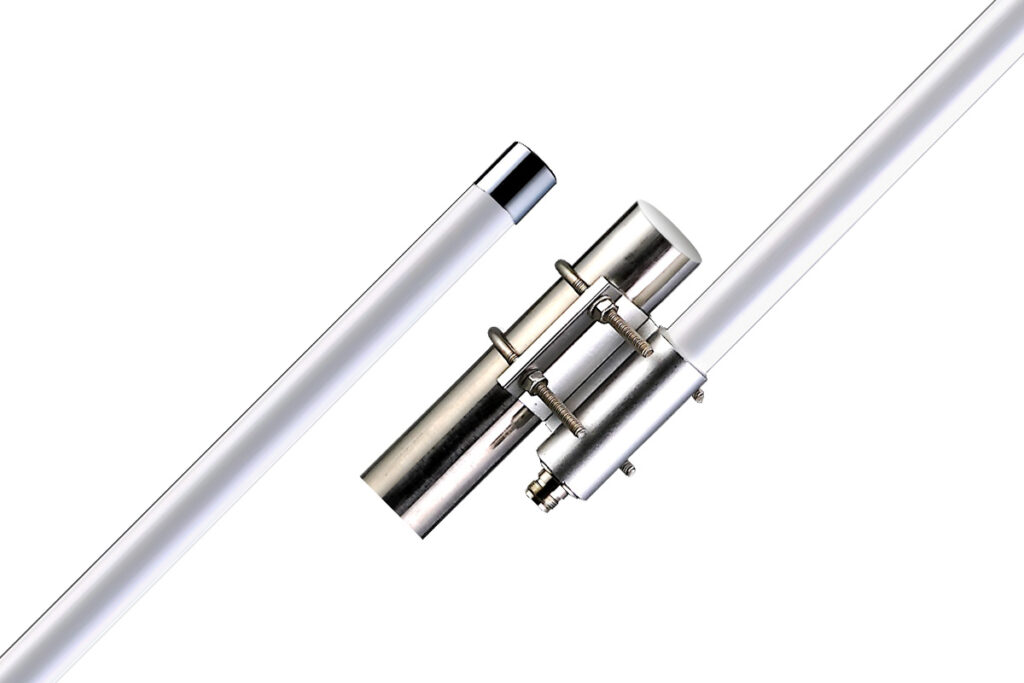

With a 10dBi peak gain, the OMB.915.B12F21 omnidirectional antenna radiates uniformly in the azimuth. This collinear design characteristic provides the best performance, giving optimized coverage and therefore longer range in the horizontal plane over 360 degrees, thus minimizing the number of nodes needed for a mesh network. The UV resistant fiberglass housing enables the OMB antenna to be utilized in all kinds of harsh environments making it more robust and safer than traditional whip antennas. It can be connected directly to the access point or telemetry unit or can be mounted on the wall or device surface via the N-type connector and a pole-mount and wall-mount bracket is included. For more information please contact your regional customer services team.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall/Pole
Termination Style Connector
Antenna Connector Type N Type
Connector Body Style Straight
Polarity Linear
Frequency Range 902-928MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Tube, Carton
VSWR 0
RoHS Yes
Gain (Max) 3.6
Length (mm) 26
Width (mm) 26
Height (mm) 2240
Weight (g) 994
