PA.740.A Wideband Ceramic Antenna for 5G/4G Bands

PA.740.A

High-Efficiency Wideband Antenna
Covering LTE & FR1 5GNR Bands for China
Fallback to 3G/2G
Surface Mount Distribution
Manufactured in our IATF16949 Certified Facility
Dimensions: 40 x 5 x 6mm
RoHS & REACH Compliant

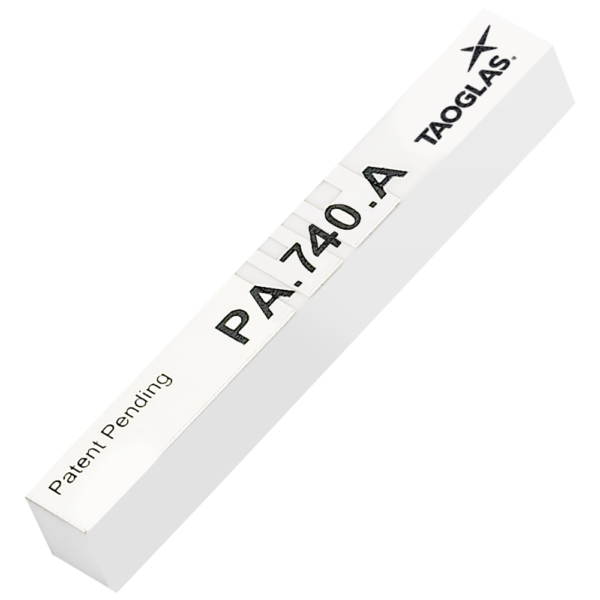

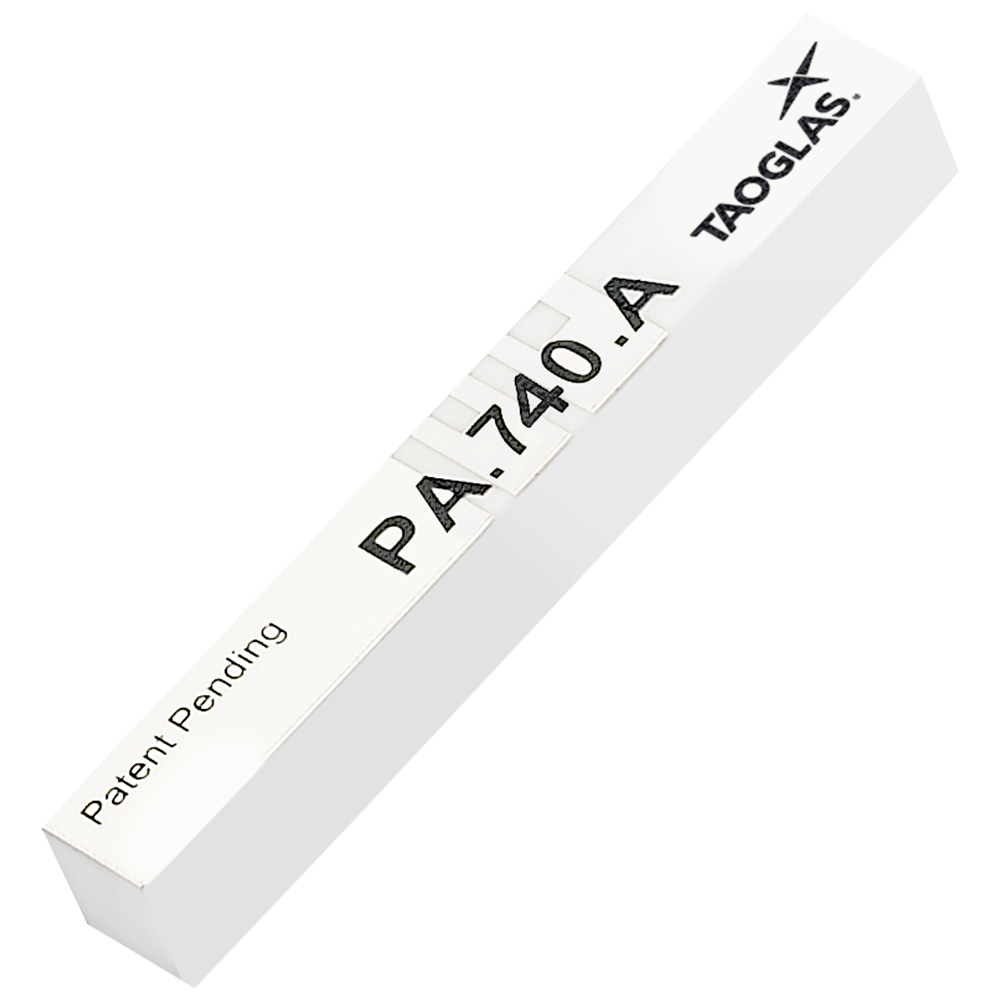

Image PA.740.A

PA.740.A

PA.740.A Wideband Ceramic Antenna for 5G/4G Bands

Overview
5GNR & LTE High-Efficiency SMD Ceramic Antenna

The Taoglas, Warrior X PA.740.A is a patent-pending, high-efficiency, wideband SMD ceramic antenna, designed to cover worldwide 5G NR FR1 and 4G bands for China (4800~4900MHz). It uses high-grade custom ceramic material and new design techniques to deliver the highest efficiencies on all bands when mounted on the device’s main PCB. The PA.740 is backward compatible for global 3G/2G applications. The PA.740 is delivered on tape and reel and mounted securely during the device PCB reflow process. The PA.740 also operates with great efficiency on worldwide NB-IoT and CAT-M frequency bands.

Typical applications include:
  • Transportation
  • Robotics
  • Wearables
  • Autonomous/UAVs
  • Industrial IoT

The PA.740 is more resistant to detuning compared to other antenna integrations. If tuning is required it can be tuned for the device environment using a matching circuit, or other techniques on the main PCB itself. There is no need for new tooling, thereby saving money if customization is required. The Material is highly reliable and robust, the PA.710.A, on which this antenna’s design is based, is currently used by world-leading automotive manufacturers in extremely challenging environments. The PA.740 has a small profile, 40*6*5mm, allows for ease of integration.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, Cellular
Mechanical Style PCB
Gain (Max) 1.88
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style SMD/SMT
Termination Style SMD/SMT
Connector Body Style Straight
Polarity Linear
Frequency Range 698 - 5925MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Tape & Reel
VSWR 0
Length (mm) 40
Width (mm) 6
Height (mm) 5
Weight (g) 2
