Pantheon MA750 White 5-in-1 Permanent Mount GNSS 5G/4G 2xMIMO Wi-Fi 2xMIMO Antenna Ø145*82mm

MA750.W.A.ABICG.003

2 x 5G/4G 600-6000MHz Antennas (MIMO)
1 x GPS/GLONASS/Galileo 1575.42/1602MHz Active Antenna
2 x Wi-Fi 2.4GHz/5.8GHz Antennas (MIMO)
IP67 Waterproof
Front End SAW Filter
High Efficiency / Peak Gain Outdoor Antenna
Dimensions: Ø143.2 x 82.4mm
Fully Customizable Cable and Connectors
RoHs & Reach Compliant

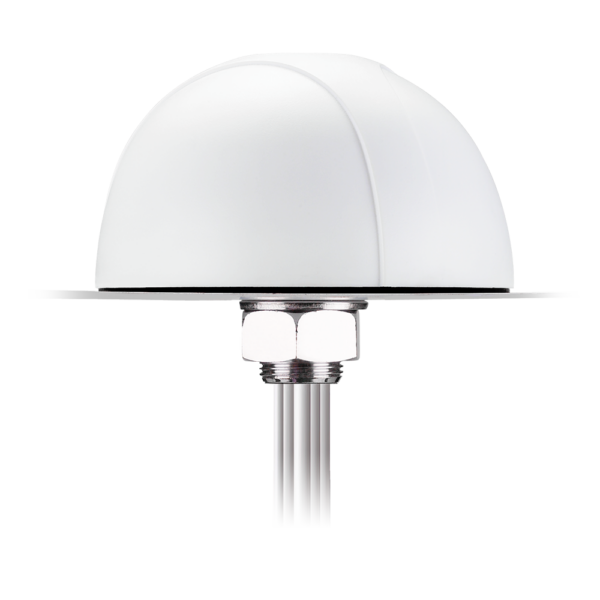

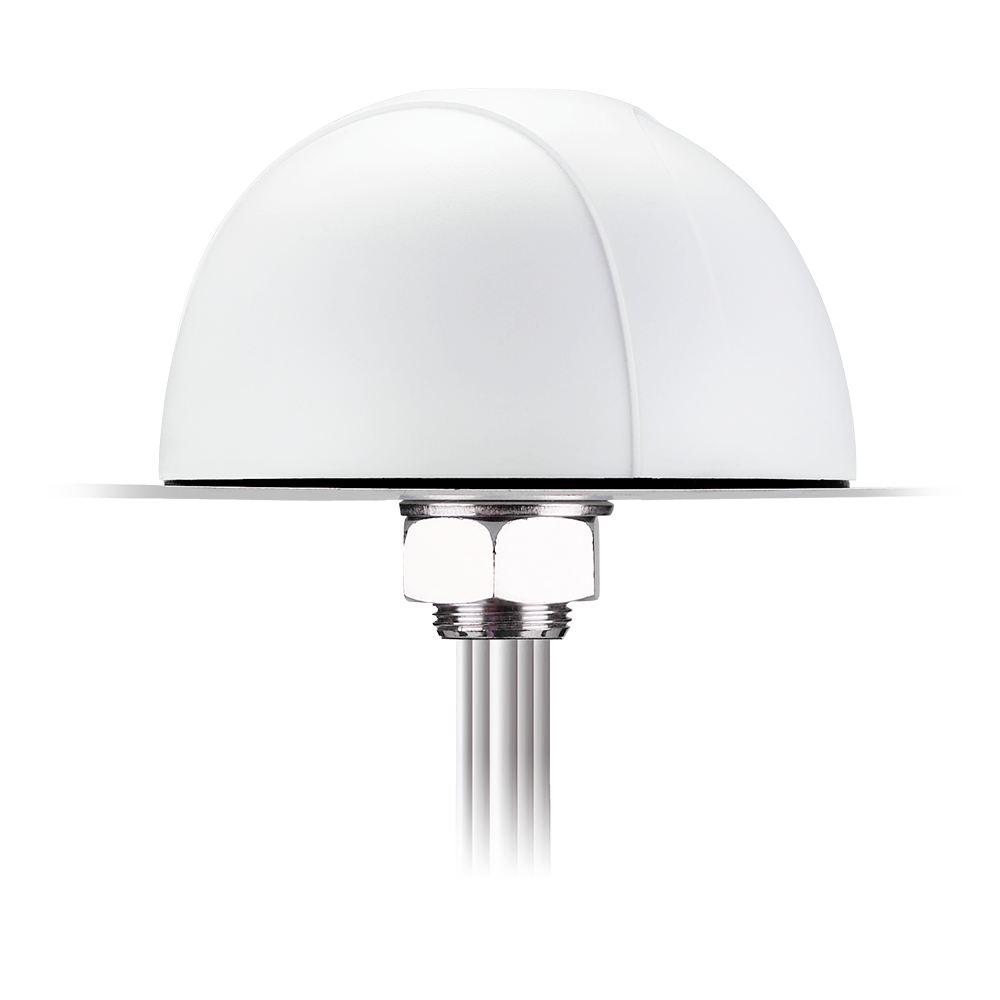

Image MA750.W.A.ABICG.003

MA750.W.A.ABICG.003

Pantheon MA750 White 5-in-1 Permanent Mount GNSS 5G/4G 2xMIMO Wi-Fi 2xMIMO Antenna Ø145*82mm

Overview

Pantheon MA750 White 5-in-1 Permanent Mount Antenna

The Taoglas MA750.W Pantheon 5-in-1 antenna is an omnidirectional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation, and remote monitoring applications. This unique antenna delivers powerful MIMO antenna technology for 5G/4G Cellular and Wi-Fi, plus GNSS for next-generation multiple wireless technology systems. The GNSS antenna covers the GPS/GLONASS/Galileo bands and includes a Front End SAW Filter for improved performance.

The Pantheon MA750.W covers all 5G bands from 600-6000MHz, exhibiting excellent performance at key 5G bands such as band 71(617MHz) and the repurposed CBRS and C-band frequencies from 3400-4200MHz. This ensures the Pantheon is prepared for mission critical applications.

Typical Applications Include:
– Public Safety
– Passenger Bus and Rail Services
– Digital Signage
– Commerical Transportation and Fleet Management

All five high-performance antennas are integrated into an extremely robust IP67 permanent mount compact antenna package measuring just 82.4mm in height and 143.2mm in diameter.

The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance. The cables are low loss allowing for lengths of up to 10 meters (32′ and 9.70″), critical for buses, trains, and other commercial transport applications.

Customized cables and connector version available. Contact your regional sales team for more info.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging Box, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 2.37
Length (mm) 145.19
Width (mm) 143.19
Height (mm) 82.4
Weight (g) 1290
