- Covering 700-6000Mhz bands
- High Efficiency
- 164.9mm Φ1.37 coaxial cable with IPEX connector
- Dimensions: 80 x 20.8 x 1mm
- Low profile
- With 3M adhesive, easy stick-on client enclosure
- RoHS and REACH Compliant

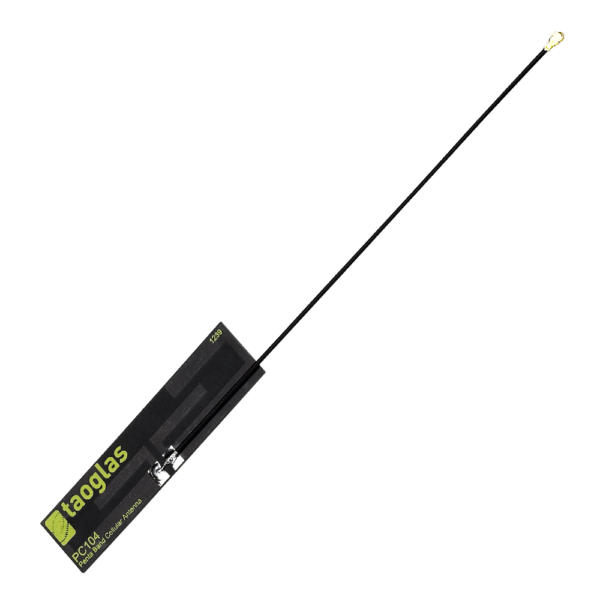

PC104 Wideband Cellular FR4 PCB Antenna, 165mm Ø1.37
PC104.07.0165C
PC104.07.0165C
PC104 Wideband Cellular FR4 PCB Antenna, 165mm Ø1.37
Overview
The high-efficiency PC104 Penta-band PCB antenna’s slim-line design allows for convenient installation inside the customer device. Omni-directional gain across all bands ensures constant reception and transmission. With its unique dipole design, the PC104 has exceptional industry performance characteristics considering its very low profile at 2.4mm and has a compact size 80mm*20mm. It is suitable for clients that appreciate the highest performance at a lower price. This antenna has 3M adhesive on the back, and is tuned and designed to be mounted on 2mm thickness plastic (not on metal). Cable lengths and connectors are fully customizable. However, for good efficiency performance, the shortest cable length should not be less than 100mm, for requirements with shorter cable lengths the alternative product the FXP.14 can be used.
Technical Specification
| Name | Value |
|---|---|
| Technology | Embedded Antennas, Cellular |
| Mechanical Style | FR4 PCB |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector Mount |
| Connector Type | I-PEX MHF I |
| Length (mm) | 80 |
| Width (mm) | 20.8 |
| Height (mm) | 1 |
| Cable Type | 1.37 mm Micro Coax Black |
| Connector Body Style | Right Angle |
| Polarization | Linear |
| Frequency Range | 600 - 6000 MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 165 |
| VSWR | 1.76 |
| Weight (g) | 6 |
| RoHS | Yes |
| Gain (Max) | 2.13 |
