PC23 3G/2G Circular FR4 PCB Antenna, I-PEX MHF® I, 100mm Ø1.13

PC23.07.0100A

I-PEX MHF® I Connector – 100mm, Ø1.13 cable
Quad-band 850/900/1800/1900MHz
Dims: H: 0.8mm, Ø:42mm

Image PC23.07.0100A

PC23.07.0100A

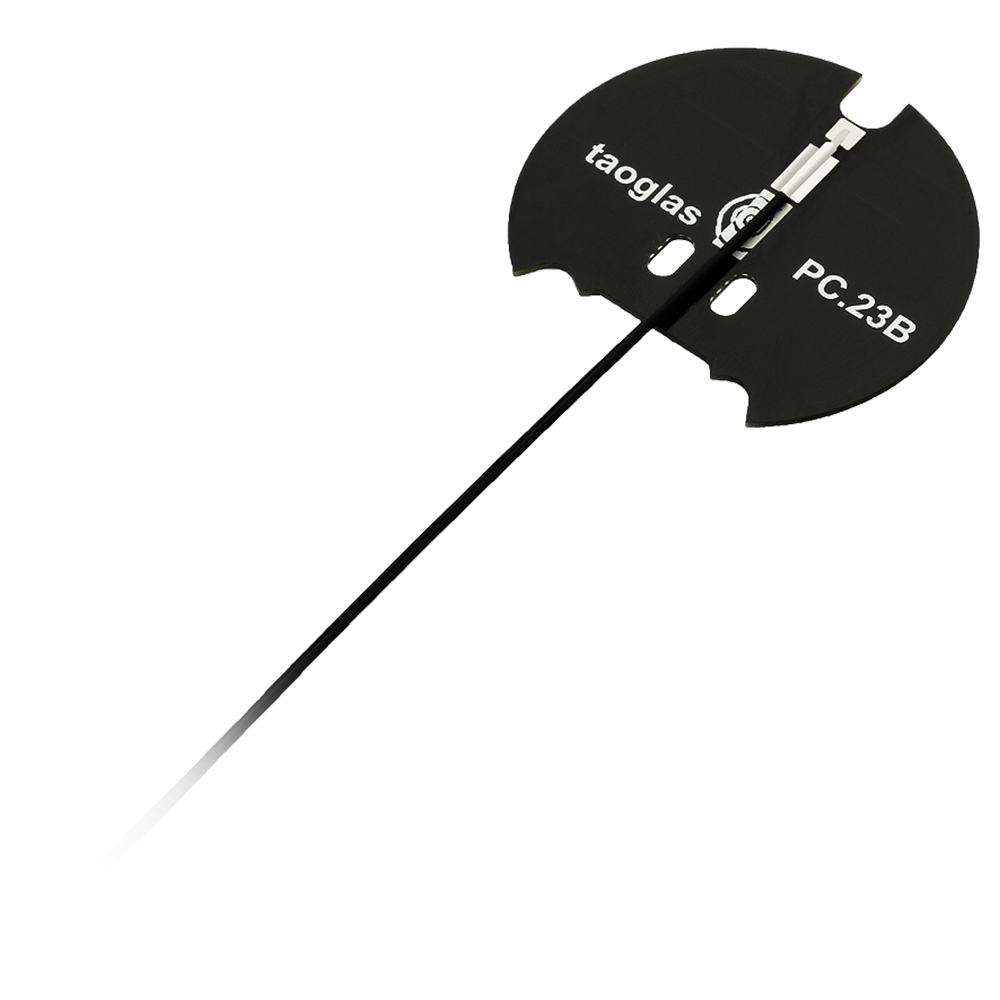

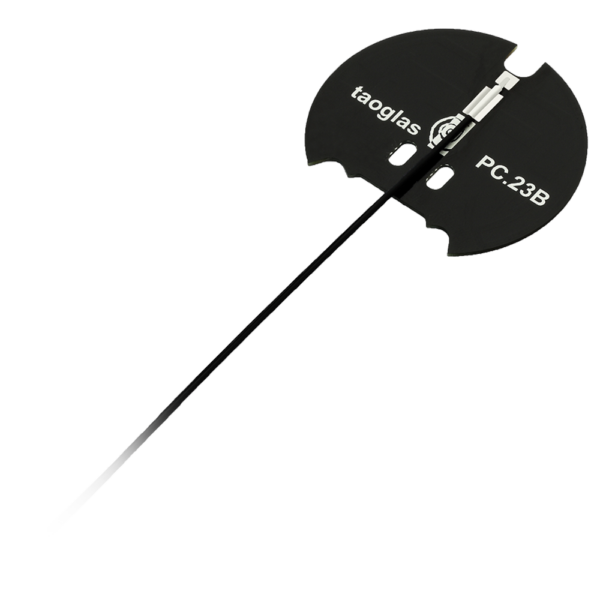

PC23 3G/2G Circular FR4 PCB Antenna, I-PEX MHF® I, 100mm Ø1.13

Overview

The PC23 Internal PCB Antenna is a circular Quad-band GSM antenna for incorporation antennas and transceiver modules worldwide. Omni-directional high gain across all bands ensures constant reception and transmission. Cables and connectors are fully customizable.

Technical Specification
Name Value
RoHS Yes
Antenna Type Cellular
Mechanical Style PCB
Gain 1
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 105°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type IPEX MHFI (U.FL)
Cable Type 1.13 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 824MHz To 1880MHz
Connector Polarity Normal
Cable Length (mm) 100
Packaging Carton
VSWR 3.59
Length (mm) 42
Width (mm) 42
Height (mm) 0.8
Weight (g) 3
