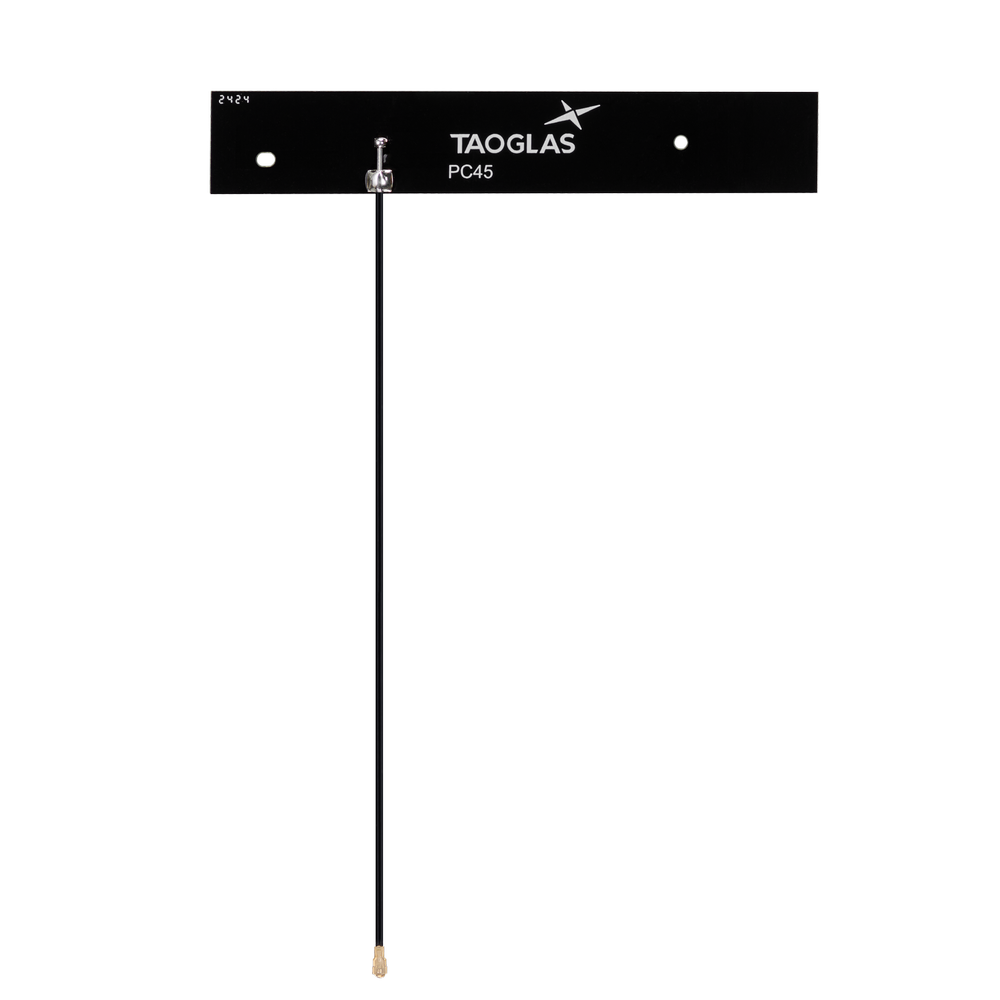

Wideband 5G/4G 600-6000MHz Cellular PCB Antenna (120x20mm) with 150mm Black 1.37 Cable and I-PEX MHF1
The Taoglas PC45 is a high-performance PCB antenna specifically designed for 5G/4G cellular IoT devices and applications. Its small footprint and super slim design offer exceptional integration capabilities. At just 120 x 20mm, it is easily installed with minimal design requirements. Engineered for seamless integration, either on or off the main device PCB, the 3M peel and stick adhesive on the back makes it easy to integrate. The design eliminates the need for complex matching or tuning, allowing for quick and easy installation, minimizing your overall design cycle.
This antenna features a 1.37mm diameter RF cable equipped with an I-PEX MHF1 connector, ensuring reliable and robust connection to the device. With a frequency range of 600-6000MHz, the antenna supports a wide range of 5G, LTE, and other global cellular bands, delivering high efficiency to assist with PTCRB certification.
Typical applications for the PC45 antenna include:
- Network devices, Gateways and Routers
- Remote Monitoring and CCTV Cameras
- Point of Sale Terminals
- Digital Signage
The antenna’s compact design includes a 150mm perpendicular (90-degree) cable feed, making it an ideal solution for applications where space is limited without compromising on performance. Whether for IoT devices, cellular modules, or other wireless communication products, this antenna ensures optimized performance across a wide range of frequencies.
Contact your regional Taoglas customer support team for samples or for further information.
