PCB.SMAFRPST.HT – SMA(F)ST RP for PCB Mount Gold Plating

PCB.SMAFRPST.HT

Circular PCB Mount Reverse Polarity SMA Female Straight Connector
Gold Plated
RoHS and REACH Compliant

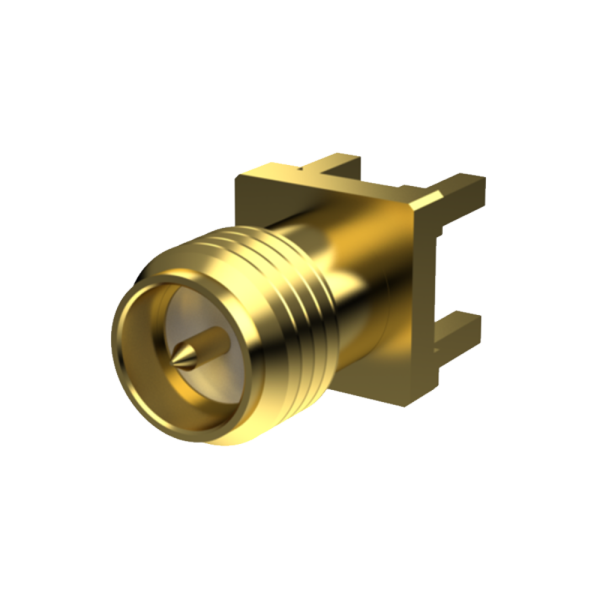

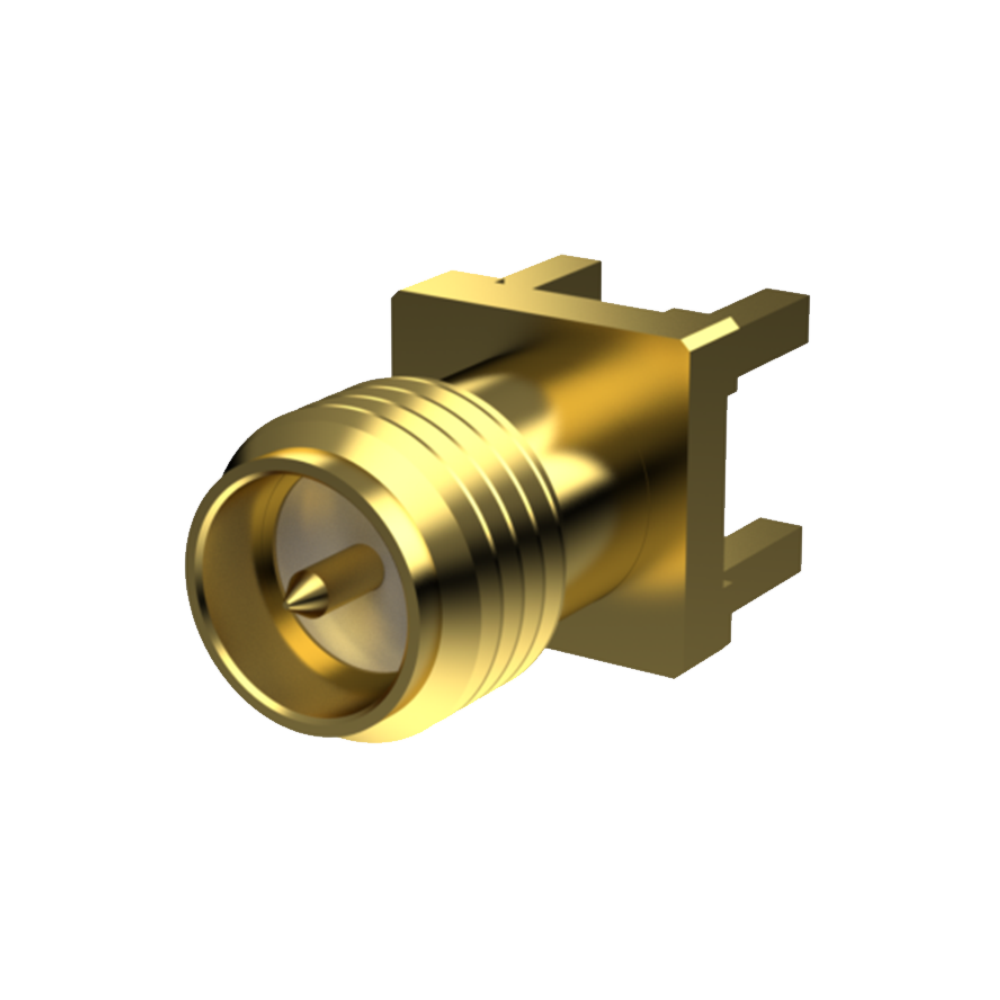

Image PCB.SMAFRPST.HT

PCB.SMAFRPST.HT

PCB.SMAFRPST.HT – SMA(F)ST RP for PCB Mount Gold Plating

Overview

Taoglas Connector Series

Taoglas is a leading provider of advanced technology for a smarter world. Our solutions include advanced components and technologies and help OEMs, enterprises, and communities to resolve the complexities of bringing digital transformation solutions to market quickly and cost effectively. Focused on best-in-class, high-performance antenna and RF design with advanced positioning, imaging, audio and artificial intelligence technologies, Taoglas understands the importance of high-performance connections.

Taoglas connectors, adaptors and receptacles are designed to provide superior performance. They are thoroughly tested and come in all mounting types including PCB, panel, and cable, providing the most flexibility for your design and we make all our 3D and 2D drawings available to help you with integration. Our portfolio of products include SMA, FAKRA, MMCX and NMO cable mount connectors for a variety of cable types and for PCB mount requirements, we have SMA, MCX and MMCX connectors.

As 5G development continues, the diversity of applications such as high-speed communications, satellite communications, military and aerospace, alongside the ever-changing demands for higher-frequency test systems are driving coaxial cable assemblies and connectors to the next level. Our series of 2.92 connectors and adaptors, which are all cross-mateable to other industry standard connectors, support DC and up to 40GHz frequencies.

For more information or for configurations not listed here, we can provide solutions based on your requirements pending an MOQ, please contact your local customer services department to discuss further.

Technical Specification
Name Value
Connector Style Straight
Connector Type SMA
Contact Termination PCB
Shield Termination F
Impedance 50
Mounting Type Through-Hole
Frequency - Max (GHz) 18
Number of Ports 1
Housing Color Gold
Length (mm) n/a
Width (mm) n/a
Height (mm) n/a
Weight (g) n/a
