PCUWB01.01.0500G Ultra Wide Band FR4 Antenna 3-5GHz 6-10.3GHz with 500mm TGC-200 SMA(M)ST

PCUWB01.01.0500G

Omnidirectional
For European and USA UWB Applications
In Channels 1-15
Frequency: 3-5GHz, 6-10.3GHz
IP67 Rating
Adhesive Mount on Plastic
Low Loss 0.5M TGC200 Cable
SMA(M) ST Connector
Customizable Cable Type, Length, Connector
Dimensions: 36*10*10mm
RoHS and REACH compliant

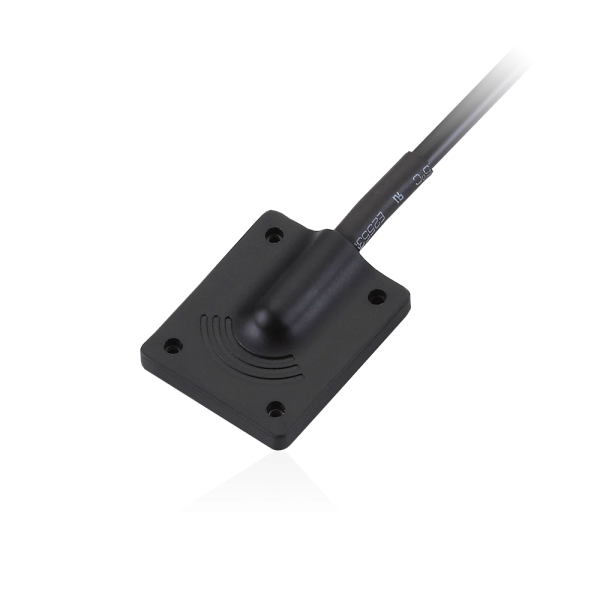

Image PCUWB01.01.0500G

PCUWB01.01.0500G

PCUWB01.01.0500G Ultra Wide Band FR4 Antenna 3-5GHz 6-10.3GHz with 500mm TGC-200 SMA(M)ST

Overview

Ultra Wide Band FR4 Antenna 3-5GHz 6-10.3GHz

The PCUWB.01 is an  Ultra Wide Band FR4 Antenna 3-5GHz 6-10.3GHz. Ultra Wide Band, (UWB) is a low power digital wireless technology for transmitting large amounts of digital data over a wide spectrum of frequency bands typically spanning more than 500MHz with very low power for short distances.

The low power requirements of UWB mean increased battery life of sensors and tags leading to a reduction in overall operational costs. PCUWB.01 is one of several Taoglas-developed antennas designed for seamless integration with the recently launched Decawave ScenSor DW1000 module as well as compatibility with any other UWB sensor modules on the market.

Cable and connectors for the PCUWB.01 are customizable. Contact your regional Taoglas sales office for support.

Applications and Uses

  • Precision surveying
  • Smart home and entertainment systems
  • Position Location and Tracking applications
Technical Specification
Name Value
Antenna Type External Antennas, UWB
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 3000-10000MHz
Connector Polarity Normal
Cable Length (mm) 500
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 7.5
Length (mm) 36
Width (mm) 10
Height (mm) 10
Weight (g) 50
