Raptor II MA1130 6-in-1 Dual Fin External Antenna with GNSS, LTE MIMO, Wi-Fi MIMO & AM/FM


4G/3G/2G MIMO Antennas
Dual Band Wi-Fi MIMO Antennas
AM/FM Antenna
IP67 Waterproof
Front End SAW Filter
High Efficiency/Peak Gain Outdoor Antenna
SMA(M) Connectors as standard (Fakra Optional)
0.3m RG-316 Cable as standard

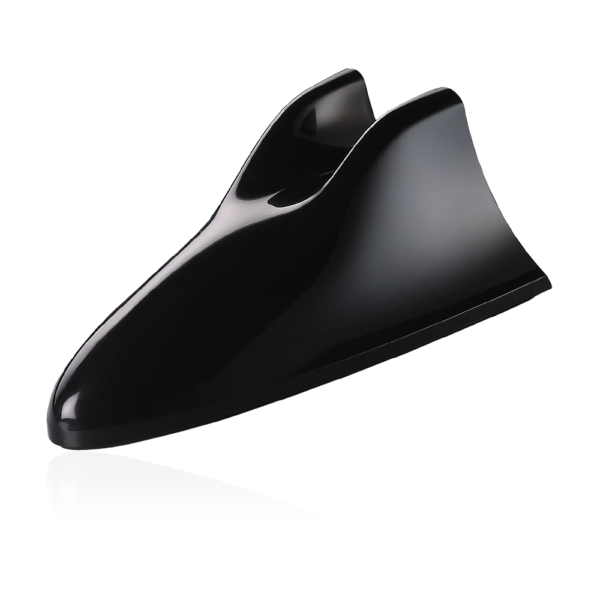

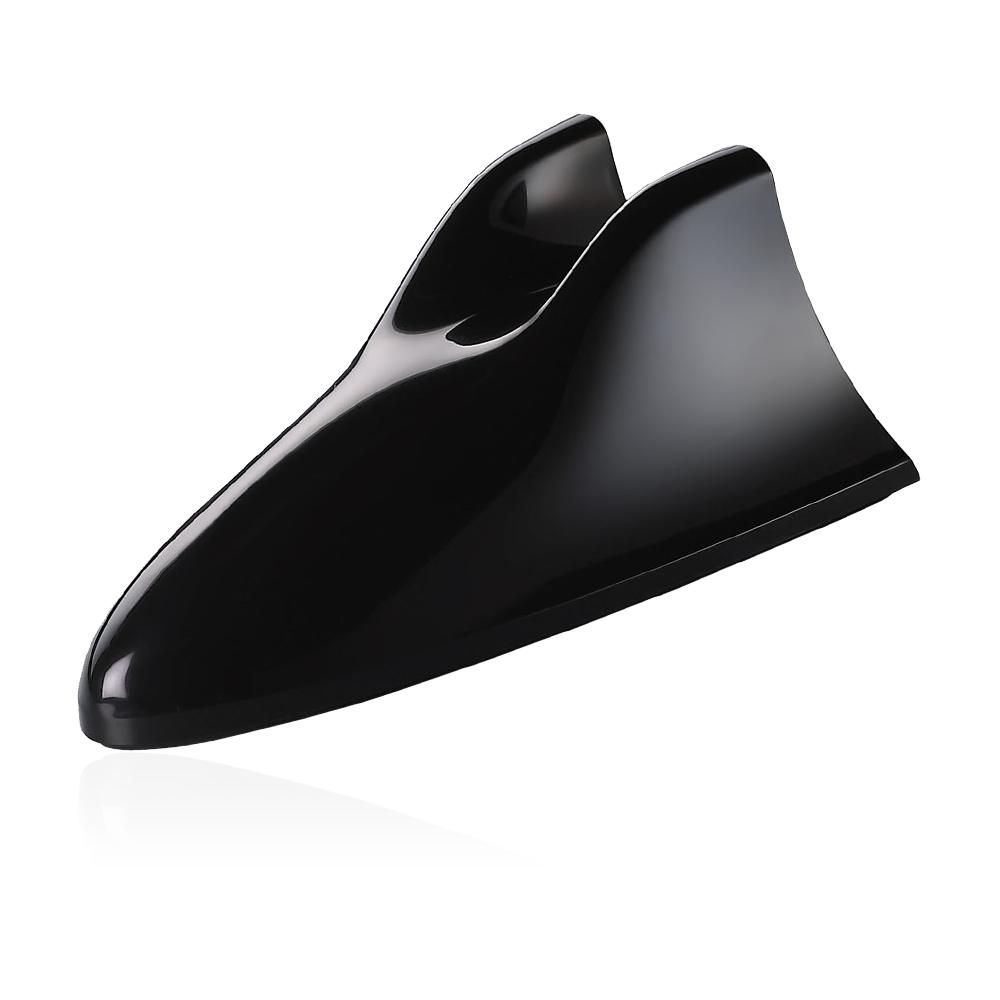

Image MA1130.A.LBICGT.002


Raptor II MA1130 6-in-1 Dual Fin External Antenna with GNSS, LTE MIMO, Wi-Fi MIMO & AM/FM


The Raptor II MA1130 is a 6-in-1 next generation, dual fin, permanent screw mount antenna for vehicle roof applications. It is fully IP67 waterproof with a distinct quality dual fin high gloss finish housing that has passed highest automotive hardness testing levels to help prevent scratching. The 6 separate antennas inside support frequency bands in LTE, GPS/GLONASS/GALILEO/BeiDou, Wi-Fi, 4G/3G/2G and AM/FM radio.

This outstanding, patent pending, antenna delivers powerful MIMO antenna technology for LTE, Wi-Fi 2.4/5.8GHz 802.11n and the emerging 802.11ac, plus a high gain omnidirectional DSRC (V2V/V2X) 5.9GHz antenna, and an optimized GPS/GLONASS/GALILEO/BeiDou patch antenna for location.

The LTE antennas also include backward compatibility to work at most worldwide 3G and 2G bands.

Applications include:
  • Next generation OEM car connectivity
  • Multimedia, navigation and telematics systems
  • V2V and V2X applications
  • Fleet management
  • Real-time HD video streaming
  • E-Call

Examples of new uses that require such a highly sophisticated antenna are real-time streaming applications that demand high speed video uplink and downlink into the cabin of the car. These challenges are resolved by the highly efficient, high gain MIMO antennas, with high isolation, which is necessary to achieve the required signal to noise ratio and throughput.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 300
Packaging PE Bag, Carton
IP Rating IP67
RoHS Yes
Gain (Max) 3.3
Length (mm) 176
Width (mm) 85
Height (mm) 72
Weight (g) 390
