Shockwave 868/915MHz Robust Permanent Mount External Antenna

TLS.90.205111

Mechanically robust for indoor/outdoor applications
Vandal Resistant
Permanent Mount
Height: 79.45mm (3.13″)
Diameter: 42mm (1.65″)
IP67 Waterproof
Connector: SMA Male
Cable: 2m Low loss TGC-200
RoHS and REACH Compliant

Image TLS.90.205111

TLS.90.205111

Shockwave 868/915MHz Robust Permanent Mount External Antenna

Overview
Shockwave 868/915MHz Permanent Mount External Antenna

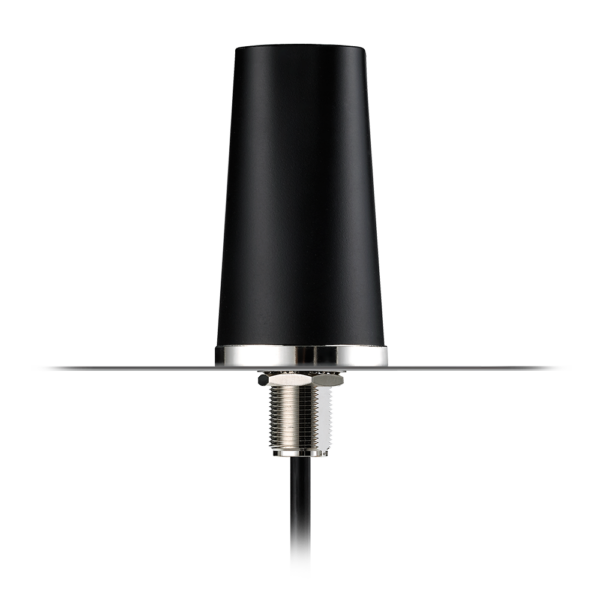

The Shockwave TLS.90.205111 is a mechanically robust, waterproof, external antenna operating at 868MHz and 915MHz with 2 meter of low loss TGC-200 and SMA(M) connector. It has been designed to be used on a Ground Plane.

Typical applications include:
  • Public safety
  • Smart meters
  • Mesh networks
  • Transportation

The antenna has greater than 60% efficiency and 1.58dBi peak gain at 868MHz 64% efficiency and 1.9dBi peak gain at ISM 915MHz on a 30×30 cm ground plane. Stable radiation patterns over low angles provide a consistent gain in the horizontal plane, meaning that it is especially suitable for mesh networks or hot spots.

A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location while tightening up the nut beneath the metal panel. Waterproof O-rings around the bottom base prevent water from leaking under the antenna. The TLS.90 antenna is IP67 waterproof resistant against high-pressure water jets in commercial cleaning environments, which makes the antenna ideal for 868 & 915MHz applications in harsh outdoor environments.

Technical Specification
Name Value
Antenna Type ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Direct
Termination Style Connector
Antenna Connector Type IPEX MHFHT
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 860-928MHz
Connector Polarity Normal
Packaging Reel
VSWR 2:1
IP Rating IP67
RoHS Yes
Length (mm) 41.06
Width (mm) 42
Height (mm) 79.45
Weight (g) 245
