Shockwave UHF Permanent Mount Antenna
450~470MHz
Efficiency over 41%
IP67 Waterproof
N Type Male Connector
Height 79.45mm Diameter 42mm

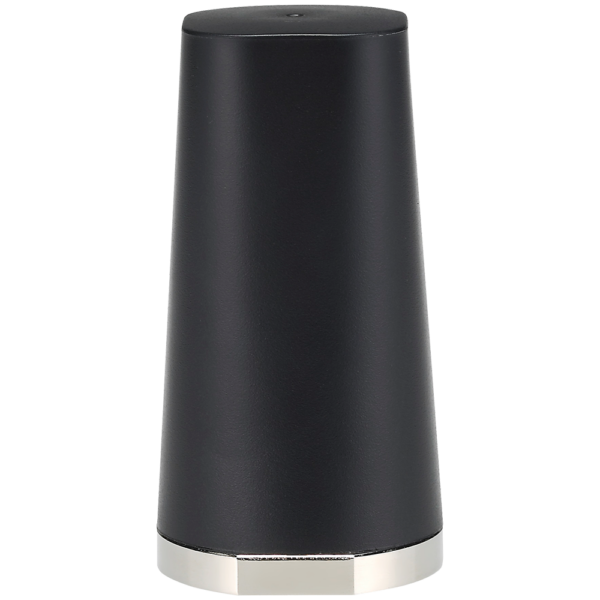

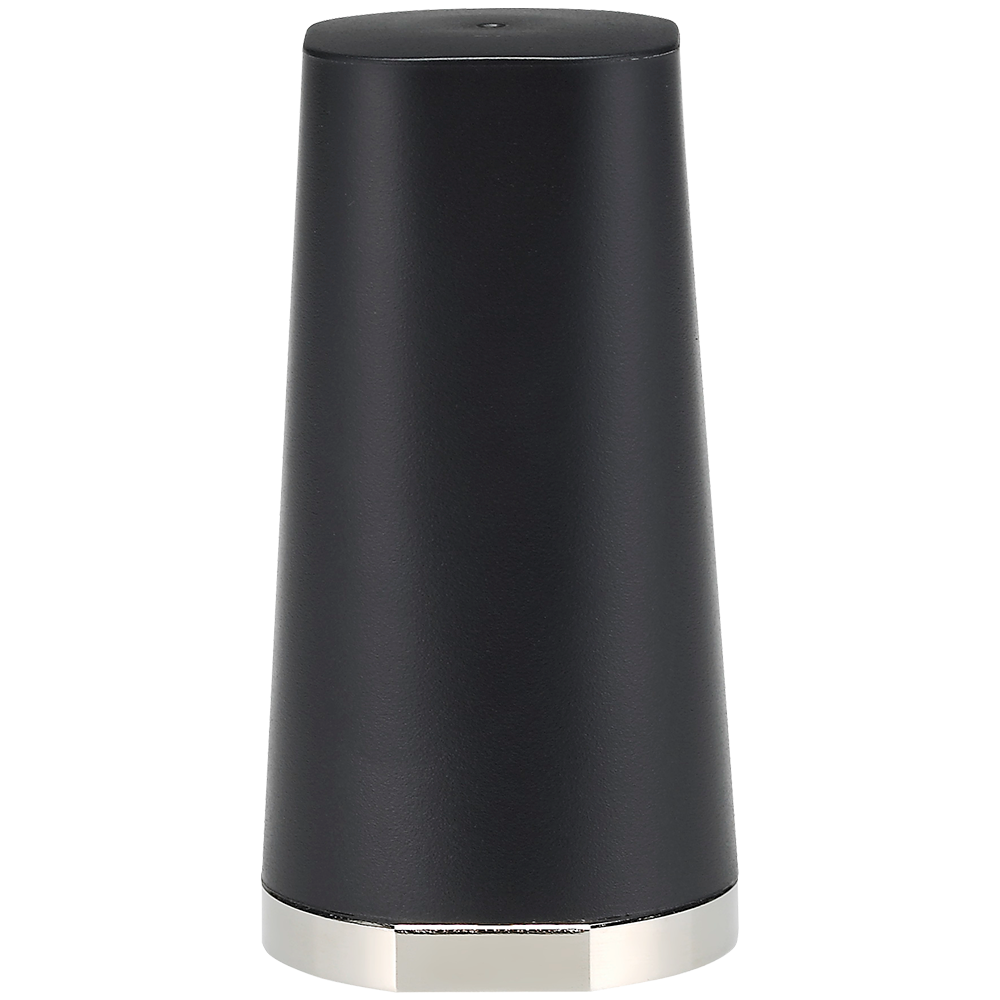

Shockwave TLS.20 450-470MHz Terminal Antenna, N Type(M)
TLS.20.1F11
TLS.20.1F11
Shockwave TLS.20 450-470MHz Terminal Antenna, N Type(M)
Overview
The Shockwave TLS.20.1F11 is a mechanically robust, waterproof, external antenna operating at 450-470MHz with 1 meter of low loss CFD/TGC-200 and SMA(M) connector. It has been designed to be used on a Ground Plane.
Common applications are, for instance:
- Public safety
- Smart meters
- Mesh networks
- Transportation
The antenna has greater than 41% efficiency and -1.38 dBi peak gain within the application band on a 30×30 cm ground plane. Stable radiation patterns over low angles provide consistent gain in the horizontal plane, meaning that it is especially suitable for mesh networks or hot spots. A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location, where an N type female connector juts out from a metal panel. Waterproof O-rings around the bottom base prevent water from leaking under the antenna. The TLS.20 antenna is IP67 waterproof resistant against high-pressure water jets in commercial cleaning environments, which makes the antenna ideal for 450-470MHz applications in harsh outdoor environments.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, ISM/LoRA |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Direct |
| Termination Style | Connector |
| Antenna Connector Type | N Type |
| Length (mm) | 41.06 |
| Width (mm) | 42 |
| Height (mm) | 79.45 |
| Connector Body Style | Straight |
| Polarity | Vertical |
| Frequency Range | 450MHz - 470MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | n/a |
| VSWR | 2:1 |
| Weight (g) | 130 |
| RoHS | Yes |
| Gain (Max) | -1.16 |
