Spartan MA600 White 3in1 Permanent Mount GPS/GLONASS/GALILEO & 3G/2G & Wi-Fi, SMA(M) Ø145.6*36mm


Spartan – GPS/GLONASS/GALILEO, Wi-Fi, Cellular/GSM – White Version
GPS/GLONASS/GALILEO – 1575-1602MHz – 3M RG-174 SMA(M)
4dBic+ Gain/50% Efficiency
Cellular 824-2170MHz – 3M CFD-200 SMA(M)
2dBi+ Gain/37%+ Efficiency
Wi-Fi/Public Safety/Zigbee 2.4/4.9~6GHz – 3M CFD-200 SMA(M)
2dBi+ Gain/48%+ Efficiency
No Ground Plane Required
Diameter 145.6mm * Height(profile) 35.1mm
Waterproof IP67 Rated
RoHS & REACH Compliant

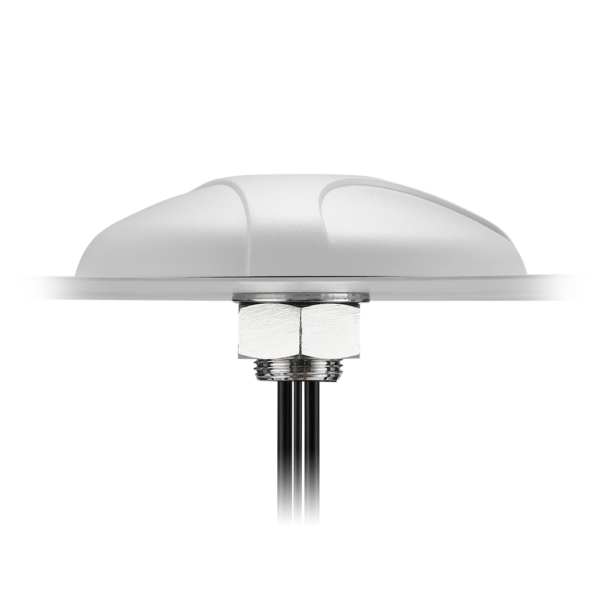

Image MA600.W.A.ABC.001


Spartan MA600 White 3in1 Permanent Mount GPS/GLONASS/GALILEO & 3G/2G & Wi-Fi, SMA(M) Ø145.6*36mm


The Spartan MA600.W antenna is a white, heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications. The Spartan is unique in the market because it combines a 3in1 GPS/GLONASS/GALILEO, Cellular (2G and 3G) and Wi-Fi, heavy-duty antenna with high efficiency in a compact format. The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted with a metal bracket. The white color is ideal for mounting on white truck roofs or cabs or industrial equipment. For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, the Spartan provides a robust, rugged antenna that is durable, even in extreme environments.

All while still maintaining 20dB isolation between antennas. It uses high-shielded PTFE dielectric ultra low-loss cables that maintain low attenuation at all frequency bands, with an average 0.3dB per meter (0.1dB per foot), compared to 0.7dB for RG58 and 1.2dB for RG174. Because of this, the Spartan maximizes chances of passing PTCRB and network approvals first time. The Spartan also has excellent GPS/GLONASS/GALILEO reception without need to attach to an external ground-plane due to coupling to its unique own metal base. Note: for ground-isolation antennas use the MA605 version with Isolation Gaskets. Also available in Black.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 824 - 2170MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging Box, Carton
IP Rating IP67
RoHS Yes
Gain (Max) 4
Length (mm) 145.6
Width (mm) 145.6
Height (mm) 39.5
Weight (g) 940
