Spartan MA602 3in1 Permanent Mount GPS/GLONASS/GALILEO & 3G/2G & Iridium Ø145.6*36mm

MA602.A.ABJ.002

GPS/GLONASS/GALILEO – 1575-1602MHz – 1M RG-174 SMA(M)
3dBic /2.5dBic Gain >70% Efficiency
Cellular 824-2170MHz – 1M CFD-200 SMA(M)
4dBi Gain/>>53%+ Efficiency
Iridium 1616~1626.5MHz – 1M CFD-200 SMA(M)
3.5dBic+ Gain/90%+ Efficiency
No Ground Plane Required
Diameter 145.6mm(5.73″) * Height(profile) 35.1mm(1.38″)
Waterproof IP67 Rated
RoHS & REACH Compliant

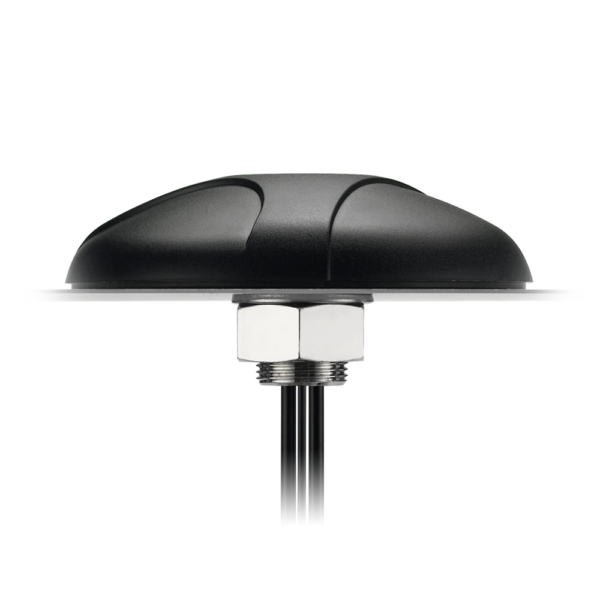

Image MA602.A.ABJ.002

MA602.A.ABJ.002

Spartan MA602 3in1 Permanent Mount GPS/GLONASS/GALILEO & 3G/2G & Iridium Ø145.6*36mm

Overview

The Spartan MA602 antenna is a heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications. The Spartan is unique in the market because it combines a 3in1 GPS/GLONASS/GALILEO, Cellular (3G and 2G) and IRIDIUM, heavy-duty antenna with high efficiency in a compact format. The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted with a metal bracket. For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, the Spartan provides a robust, rugged antenna that is durable, even in extreme environments. Customized cables and connectors version available.

Technical Specification
Name Value
Antenna Type Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style SMD/SMT
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 824MHz To 2170MHz
Connector Polarity Normal
Cable Length (mm) 1000
Packaging Box, Carton
VSWR 1.92:1
IP Rating IP67
RoHS Yes
Gain 3
Length (mm) 145.6
Width (mm) 145.6
Height (mm) 39.5
Weight (g) 1030
