Spartan MA603 3in1 Permanent Mount GPS/GLONASS/GALILEO & 3G/2G & 915MHz Ø145.6*36mm

MA603.A.ABK.001

Spartan – GPS/GLONASS/GALILEO-Cellular/GSM-915MHz
GPS/GLONASS/GALILEO – 1575-1602MHz – 3M RG-174 SMA(M)
4dBic /5dBic Gain 50% Efficiency
Cellular 824-2170MHz – 3M CFD-200 SMA(M)
2dBi+ Gain/>33%+ Efficiency
915MHz – 3M CFD-200 SMA(M)
2.3dBi+ Gain/>42%+ Efficiency
No Ground Plane Required
Diameter 145.6mm(5.73″) * Height(profile) 35.1mm(1.38″)
Waterproof IP67 Rated
RoHS & REACH Compliant

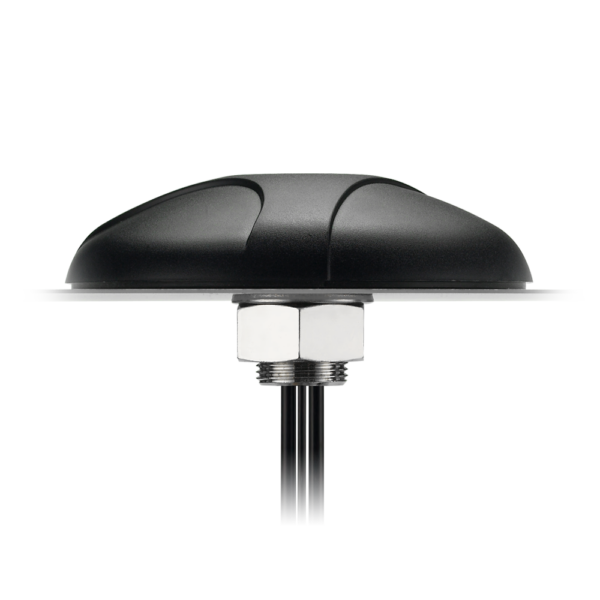

Image MA603.A.ABK.001

MA603.A.ABK.001

Spartan MA603 3in1 Permanent Mount GPS/GLONASS/GALILEO & 3G/2G & 915MHz Ø145.6*36mm

Overview

The Spartan MA603 antenna is a low profile, heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications. The Spartan MA603 antenna is unique in the market because it combines 3in1 GPS/GLONASS/GALILEO, Cellular (3G/2G) and 915MHz antennas in a heavy-duty structure with high efficiency in a low profile compact format at 35mm (1.38”) profile Height. The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted. For industries such as commercial vehicle telematics, remote monitoring, smart meter systems, construction equipment, at only 35mm high, the Spartan provides an unobtrusive, robust, rugged antenna that is durable even in extreme environments.

Custom designed integrated wall-mounted and pole-mounted brackets are available for the Spartan antennas. These patent-pending mounts allow for 180 degrees freedom of movement of the antennas for ease of positioning while also preventing access to the cables so they cannot be cut by vandals or thieves and also protecting the cables from long term weather exposure. The removal of unsightly cables also leads to a cleaner more professional installation and look, and makes the antenna less identifiable and more unobtrusive. Customized cable sleeves can be supplied for extra protection where required.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 80°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 902MHz To 1602MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging Box, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain 2.9
Length (mm) 145.6
Width (mm) 145.6
Height (mm) 35.1
Weight (g) 1164.5
