Spartan MA650 2in1 GPS/GLONASS/GALILEO & 3G/2G Permanent Mount Ø145.6*36mm

MA650.A.AB.002

Spartan GPS/GLONASS/GALILEO-Cellular/GSM Antenna
GPS/GLONASS/GALILEO: 1575-1602MHz, RG-174 SMA(M) 4dBic Gain 50% Efficiency
Cellular 824-2170MHz – CFD-200 SMA(M) 2dBi+ Gain >33%+ Efficiency
Long cable length 10M
No Ground Plane Required
Dims: Ø: 145.6mm(5.73″),  H: 35.1mm(1.38″)
Waterproof IP67 Rated
RoHS & REACH Compliant

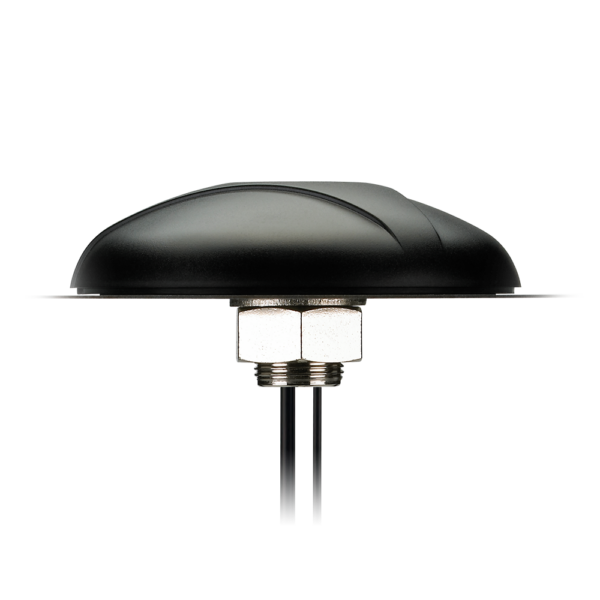

Image MA650.A.AB.002

MA650.A.AB.002

Spartan MA650 2in1 GPS/GLONASS/GALILEO & 3G/2G Permanent Mount Ø145.6*36mm

Overview

The Spartan MA650 antenna is a low profile, heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications. With a standard length of 10 meters of very low loss cable it is specially designed suitable for e-Bus or train telematics applications where long cable lengths are needed. The Spartan MA650 antenna is unique in the market because it combines 2in1 GPS/GALILEO, Cellular (3G and 2G) antennas in a heavy-duty structure with high efficiency in a low profile compact format. The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted. The antennas are designed to be isolated from each other to prevent cross-interference. For industries such as commercial vehicle telematics, remote monitoring, smart meter systems, construction equipment, at only 40mm high, the Spartan provides an unobtrusive, robust, rugged antenna that is durable even in extreme environments.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style SMD/SMT
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 824MHz To 2170MHz
Connector Polarity Normal
Cable Length (mm) 10000
Packaging Box, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain 4
Length (mm) 147.31
Width (mm) 145.6
Height (mm) 36
Weight (g) 720
