Storm MA412 2-in-1 Permanent Mount 4G/3G/2G 2xMIMO 0.3M CFD-200, Fakra Code D

MA412.A.BI.001

Storm 2in1 ā€“ 4G/3G/2G LTE MIMO Screwmount Antenna
2 x 4G/3G/2G LTE MIMO Antenna
(698~960MHz,1710~2170MHz,2490~2700MHz)
2*MIMO 0.3M CFD-200 Fakra Code D Jack
NO GROUND PLANE REQUIRED
IP67 Enclosure
Aerodynamic, Super Low-profile Vandal Resistant Housing
Dims: 216.24*93.25*30.95mm

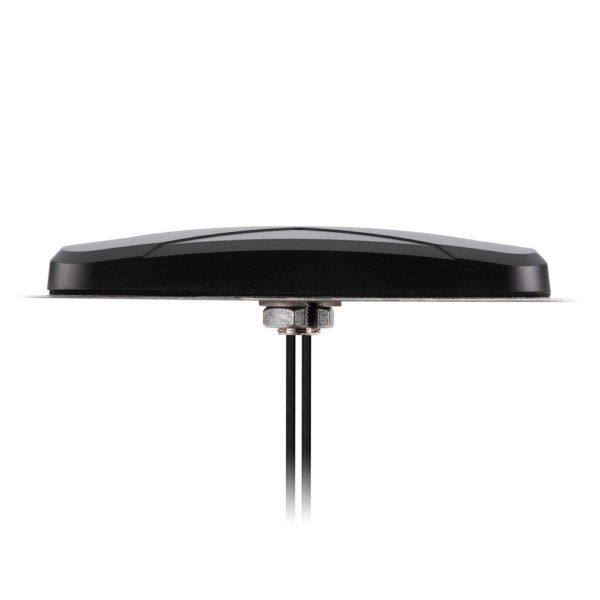

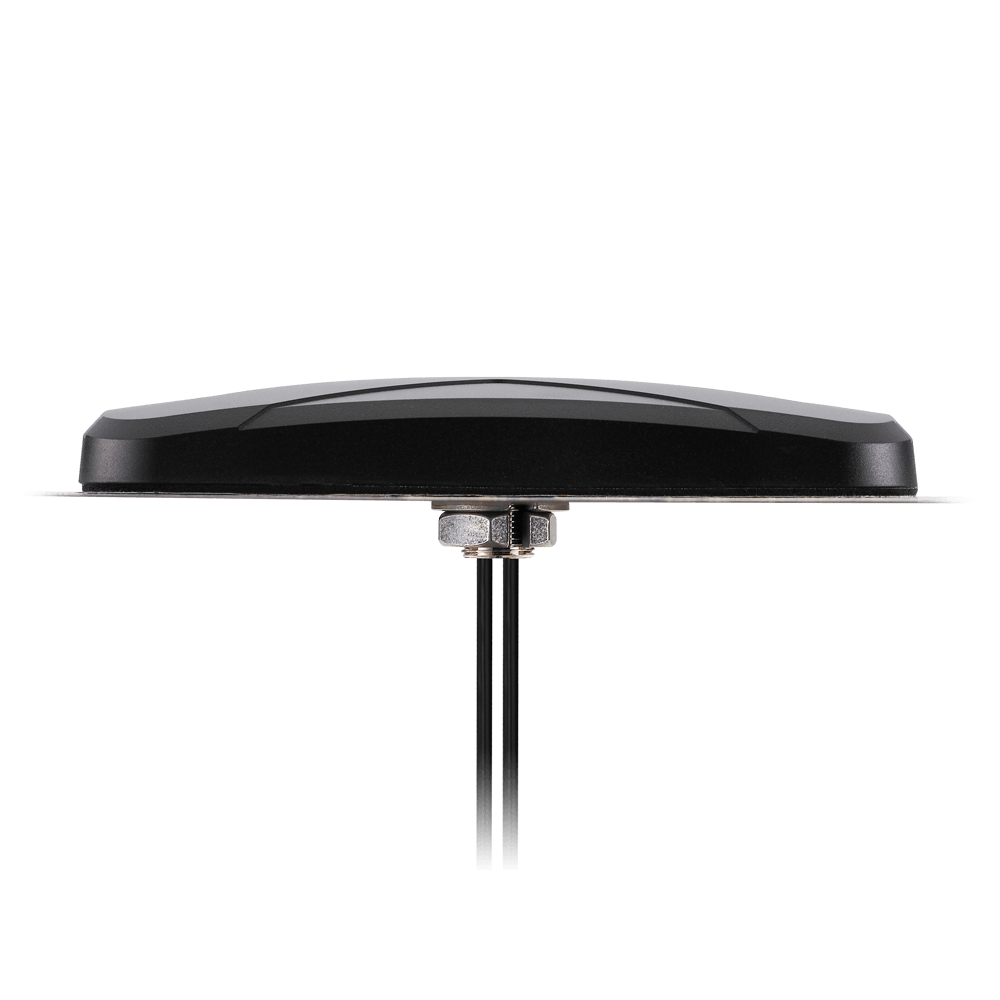

Image MA412.A.BI.001

MA412.A.BI.001

Storm MA412 2-in-1 Permanent Mount 4G/3G/2G 2xMIMO 0.3M CFD-200, Fakra Code D

Overview

The Storm MA412 LTE MIMO antenna is a low profile, heavy-duty, fully IP67 waterproof external M2M antenna for use in worldwide telematics applications which require best in class LTE performance. This unique product, only 30mm high, delivers powerful worldwide 4G LTE MIMO antenna technology at 700/800/900/1700/1800M/1900M/2600MHz.

Typical applications
  • HD Video over LTE
  • First Responder and Emergency Services
  • Intelligent Transport Systems
  • Internet of Things (IoT market)
  • High Definition Video Broadcast Systems
  • Wireless LTE MIMO M2M Devices
  • Digital Signage

LTE 4G applications demand high speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two MIMO antennas to prevent self-interference. The MA412 does not require a ground plane. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller MIMO antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and may indeed not make a system connection at all. We have a version with SMA(M) also as standard MA412.A.BI.003. Cable length and connector types are customizable. Conformity is declared under the following standard: Conformity is declared under the following standard: EN55022 Class B. This is to declare that the product listed above conform to the EMC directive 2014/30/EU.

Technical Specification
Name Value
Antenna Type External Antennas, Combination, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type FAKRA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 300
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 5
Length (mm) 216.24
Width (mm) 93.25
Height (mm) 30.95
Weight (g) 400
