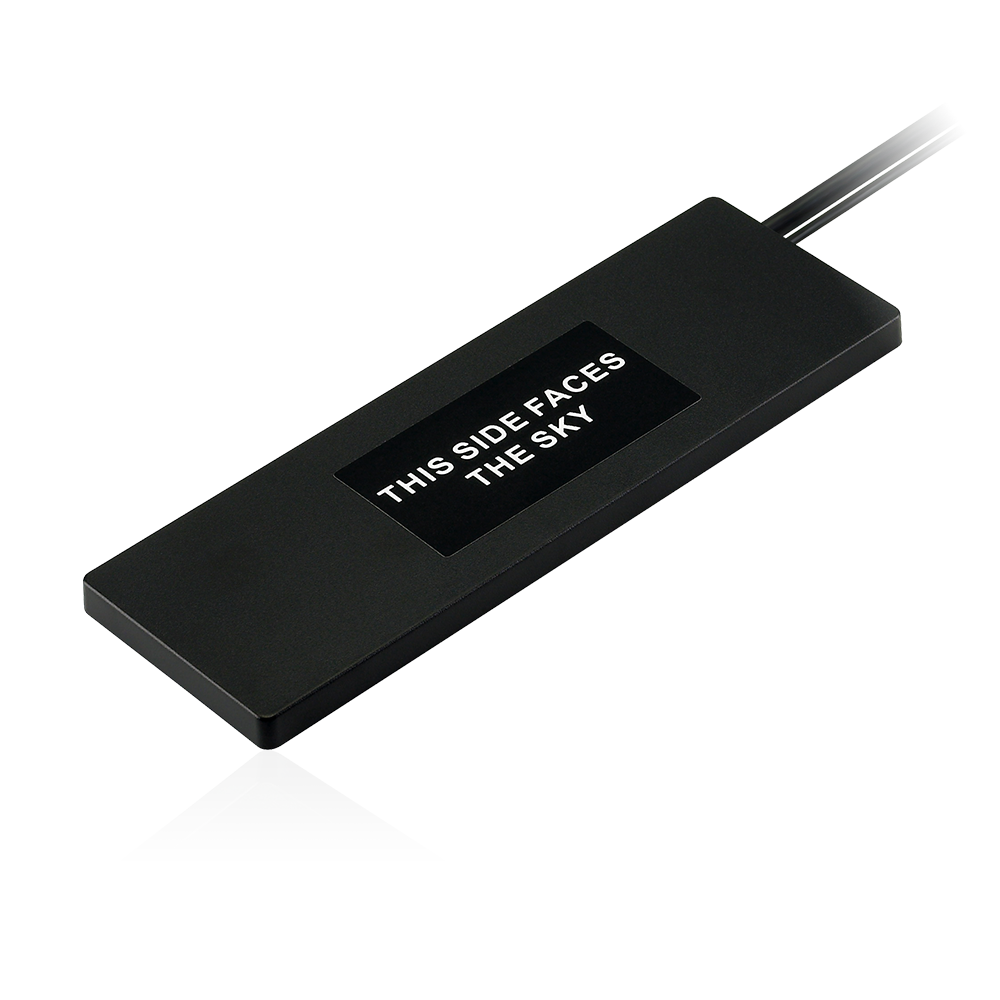

Stream MA208 2-in-1 GPS/Galileo & 4G/3G/2G Adhesive Mount Antenna, SMA (M)

MA208.A.AB.001

Stream – Adhesive Glass Mount
GPS 1575MHz 3M RG-174 SMA(M)
Gain 3.5dBic Typ. @ Zenith
2G/3G/4G 700MHz-960MHz/1710MHz-2200MHz 3M CFD-200 SMA(M)
700-960Mhz Gain:- Peak 2.16dBi – Avg. -3.03dBi – Efficiency 60%(avg)
1710-2200MHz Gain:- Peak 0.43dBi – Avg. -4.34dBi – Efficiency 48%(avg)
High Grade 3M Double Sided Tape
200.5*66.5*9mm

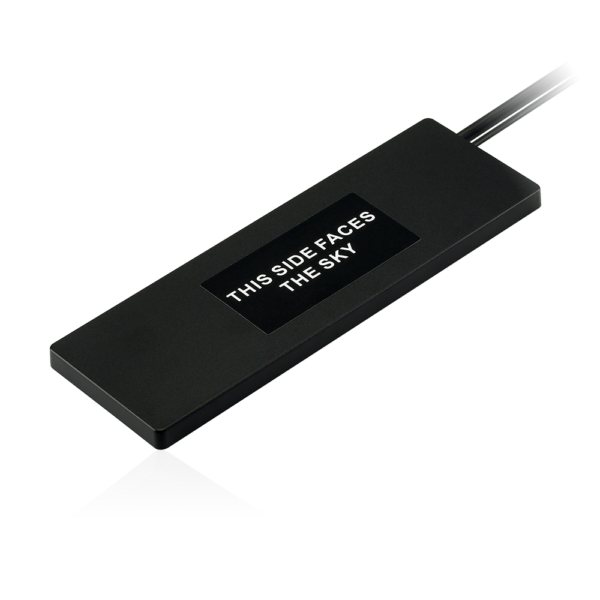

Image MA208.A.AB.001

MA208.A.AB.001

Stream MA208 2-in-1 GPS/Galileo & 4G/3G/2G Adhesive Mount Antenna, SMA (M)

Overview

The Stream MA208 GPS/GALILEO/LTE Cellular antenna is a low profile, heavy-duty, fully IP67 waterproof external M2M antenna for use by RF professionals in telematics, transportation and remote monitoring applications. The Stream is unique in the market as it combines the highest possible efficiency and peak gain for GPS and all cellular bands in 4G/3G/2G in a low profile compact format for mounting via high-quality first tier automotive approved 3M adhesive foam. The patent pending design incorporates internally a custom Taoglas 35mm patch antenna on an extended integral ground-plane to deliver more than 3.5dBiC gain. A front-end SAW filter dramatically reduces radiated spurious emissions. The extended ground-plane used with an innovative internal cellular PIFA also enables the unique wide-band 4G/3G/2G response to deliver the highest performance possible, at 3 meters cable length.

Nothing else out there comes close in terms of consistency of efficiency and peak gain at all cellular bands, with an awesome 70%+ at the LTE 700MHz band, again including 3 meters of cable loss. High antenna efficiencies are absolutely critical in today’s 3G and 4G systems to achieving targeted data-speeds and coverage. All this is done while still maintaining 20dB isolation between antennas. The Stream uses high-shielded PTFE dielectric ultra low-loss cables that maintain low attenuation at all frequency bands, and high noise rejection, with an average loss of only 0.3dB per meter (0.1dB per foot), compared to 0.7dB for RG58 and 1.2dB for RG174. Because of this, the Stream maximizes chances of passing PTCRB and network approvals first time. The Stream works best when attached to plastic or glass, but can also be used on metal if some foam spacing is added. The Stream comes packaged with a separate 3M first tier automotive approved adhesive which can be attached to either the bottom of the top of the product, for easy mounting directly on glass, or on plastic.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 700 - 5900MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 2
Length (mm) 200.5
Width (mm) 66.5
Height (mm) 9
Weight (g) 180
