MA1504.AK.001 – Synergy 4-in-1 Next-Generation Combination 4*5G/4G MIMO Permanent Mount Antenna with 5m Braided Cable Assembly

MA1504.AK.001

4 x 5G/4G MIMO Antenna
IP67 Rated Waterproof
High Efficiency/Peak Gain Outdoor Antenna
Cable: 300mm RG-174 with 4700mm TGC-200
Connectors: SMA(M)
RoHS & REACH Compliant

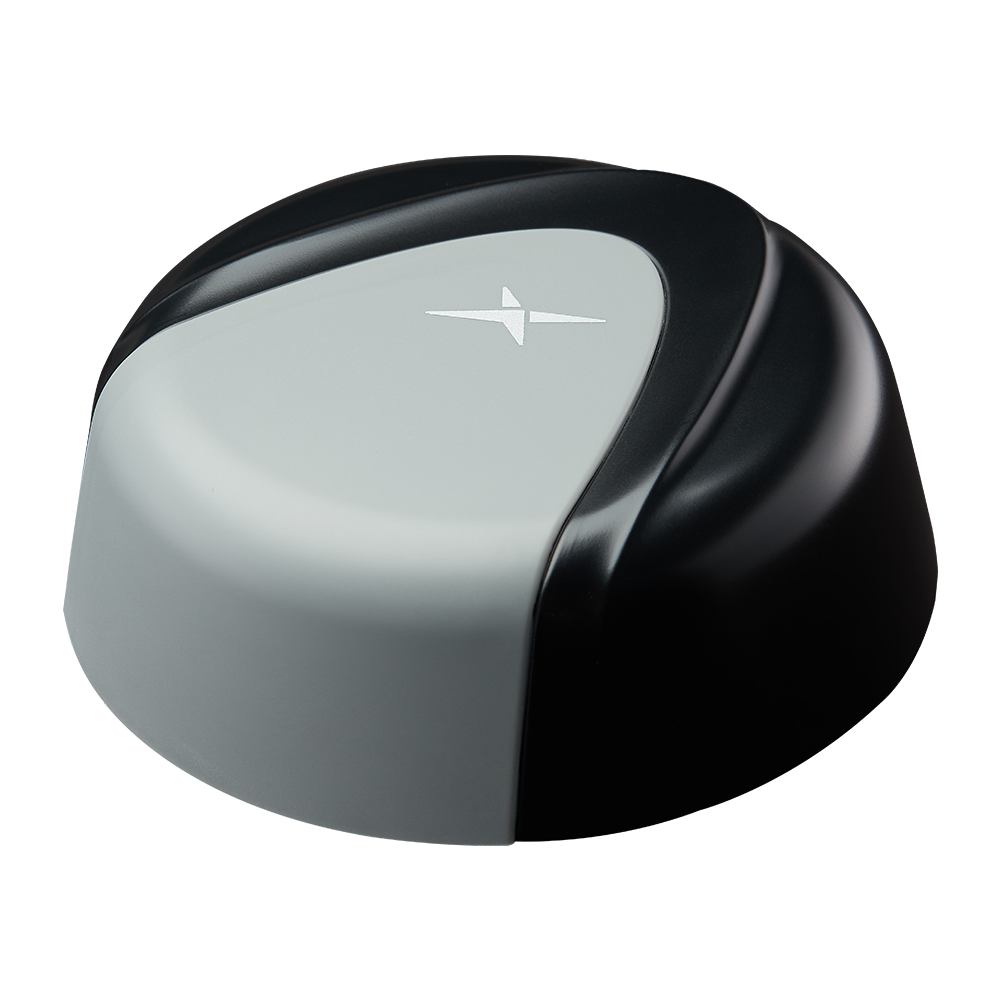

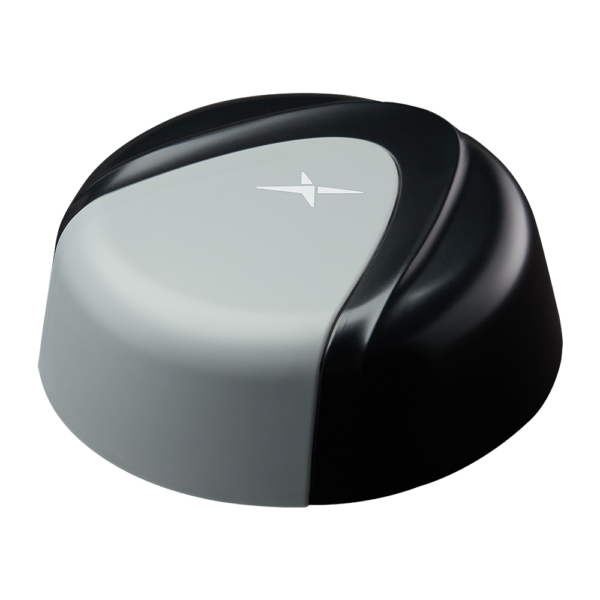

Image MA1504.AK.001

MA1504.AK.001

MA1504.AK.001 – Synergy 4-in-1 Next-Generation Combination 4*5G/4G MIMO Permanent Mount Antenna with 5m Braided Cable Assembly

Overview

Synergy 4-in-1 Next-Generation Combination 4*5G/4G MIMO Permanent Mount Antenna

The Taoglas Synergy MA1504 is a 4-in-1 next-generation permanent mount antenna for vehicle roof applications. It has a fully IP67 rated waterproof robust ABS enclosure and base. The 4 antennas inside support 600-6000MHz 5G/4G. This outstanding patent-pending antenna delivers powerful MIMO antenna technology for 5G/4G. The 5G/4G antennas also include backward compatibility to work at most worldwide 2G and 3G bands.

Typical Applications:
– Next Generation OEM Automotive Connectivity
– Multimedia, Navigation and Telematics Systems
– V2V, V2X and Fleet Management Applications
– Real-time HD Video Streaming
– First Net Responder Routers

The MA1504 is ideal for applications that require highly sophisticated antennas for real-time streaming applications that demand high-speed video uplink and downlink into the cabin of the vehicle. These challenges are resolved by the highly efficient, high gain MIMO antennas, with high isolation, all of which is necessary to achieve the required signal to noise ratio and throughput.

The MA1504 can also be customized for your particular wireless application and frequency band, subject to NRE and MOQ. There are 4x 300mm RG-316 cables, terminating in SMA(M) connectors for 5G/4G MIMO 4X4.

All cable lengths and connector types are customizable. The Synergy MA1504 can be supplied with low loss TGC-200 cable extensions for longer cable runs. Contact your regional Taoglas customer services team for details and support.

Technical Specification
Name Value
Antenna Type External Antennas, Combination, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 5000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 3.31
Length (mm) 160
Width (mm) 160
Height (mm) 57.47
Weight (g) 2000
