T-Bar GSA.8822 4G/3G/2G LTE Adhesive Antenna, SMA(M), 3m RG-174


4G/3G/2G LTE T-bar Adhesive Antenna
3m RG-174 SMA(M)
First Tier Automotive Approved

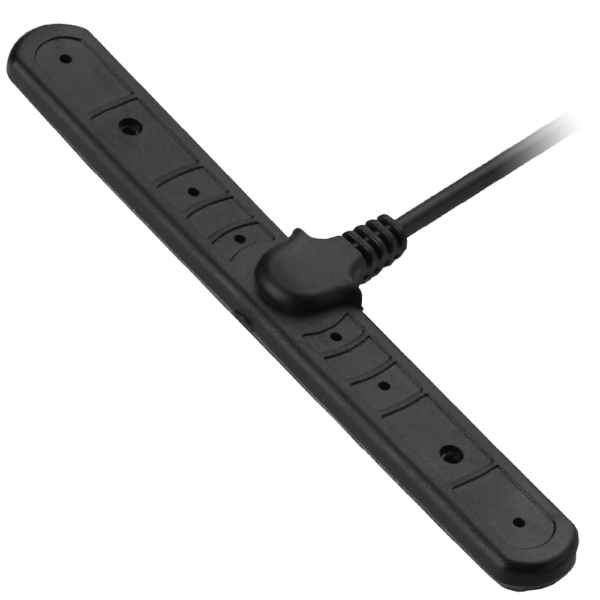

Image GSA.8822.B.301111


T-Bar GSA.8822 4G/3G/2G LTE Adhesive Antenna, SMA(M), 3m RG-174

GSA.8822 4G/3G/2G LTE T-bar Adhesive Antenna

The GSA.8822.B.301111 T-Bar antenna is an external adhesive mount solution for covert and convenient installation in the automotive and telematics industry, making it ideal for tracking systems and cellular car kits. It covers 700MHz/850MHz/900MHz/1800MHz/1900MHz/2100MHz/2600MHz and design to mount on glass or plastic, also it has exceptional industry performance characteristics considering its low profile at 6.7mm and has a compact size of 106*13mm.

Typical applications include:
  • Vehicle tracking and telematics
  • Metering
  • Internet of Things

The GSA8822.B T bar is a fully over-molding with strain relief for IP67 waterproof external antenna, Strain relief provides the greatest amount of bend relief, protecting the electrical terminations to connect with cable coaxial. It comes with strong 3M double-sided adhesive for a permanent and secure fix to your vehicle interior the cable lengths and connectors can be customized upon request subject to MOQ. Contact your regional Taoglas sales office for support.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity Linear
Frequency Range 824 - 2170MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
IP Rating IP65
RoHS Yes
Gain (Max) 2
Length (mm) 106
Width (mm) 13
Height (mm) 6.7
Weight (g) 40
