New Released Nov 12, 2024

TFMD.115A – Evaluation Board for TFM.115A

TFMD.115A

Vin = +1.8 to +5.5 VDC
Evaluation Board for TFM.115A
Dimensions: 50 x 45 x 3mm
RoHS & Reach Compliant

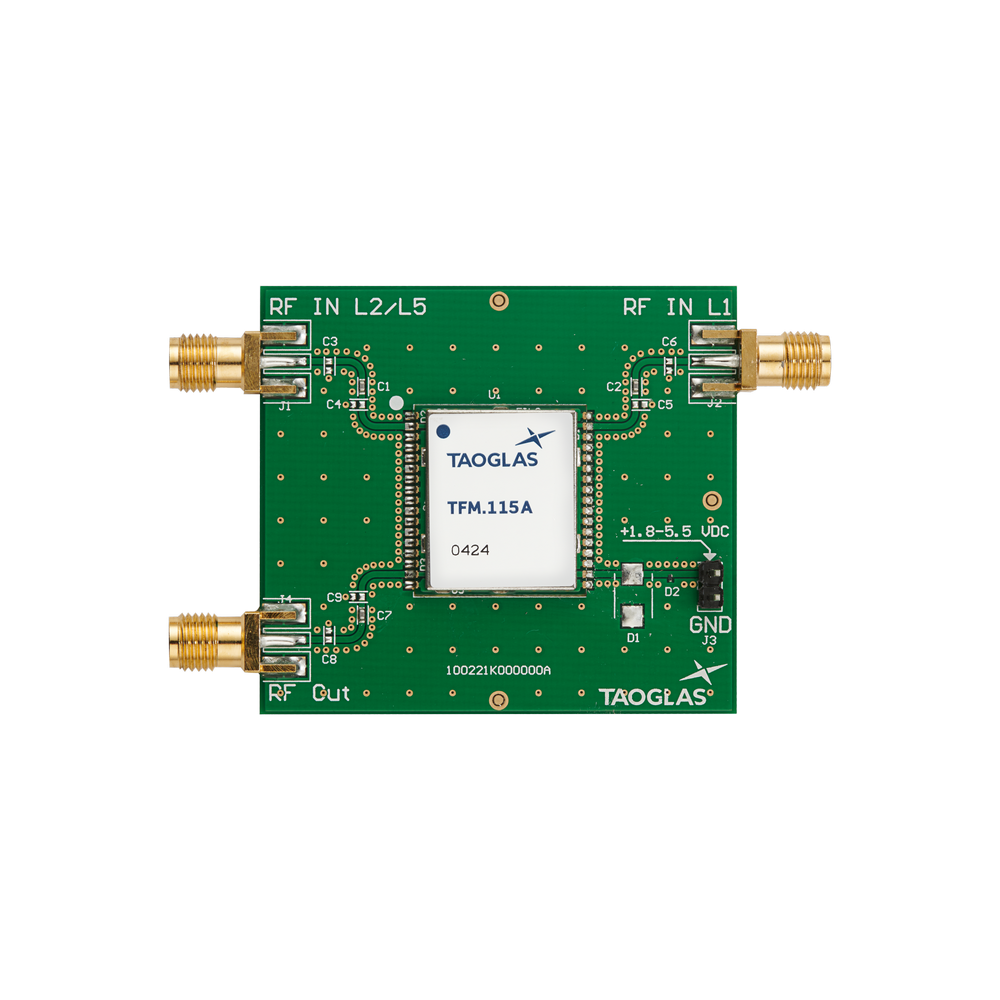

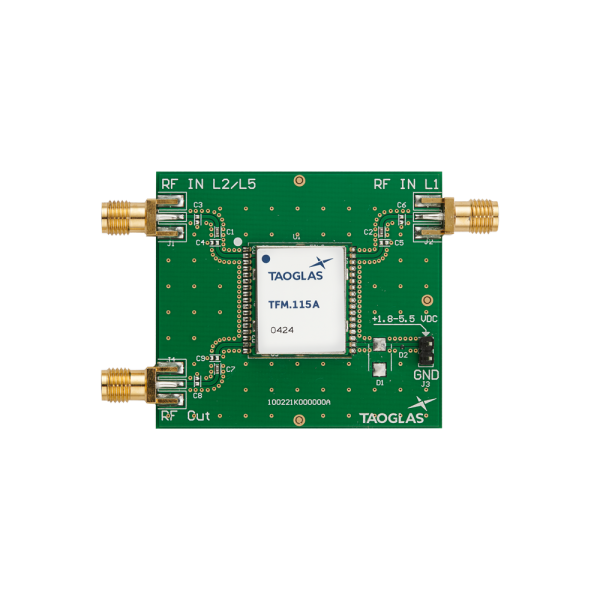

Image TFMD.115A

TFMD.115A

TFMD.115A – Evaluation Board for TFM.115A

Overview

Evaluation Board for surface mount GNSS front-end module covering L1+B1+G1/L5+L-band

The Taoglas TFM.115A is a surface-mount GNSS front-end which covers L1+B1+G1/L5+L-band for multiband high-precision applications that require the full spectrum of GNSS constellations. The TFM.115A is a dual input single output and features a SAW/LNA/SAW/LNA topology in both the low and high band signal paths to prevent unwanted out-of-band interference from overdriving the GNSS LNAs or receiver. The SAW filters have been carefully selected and placed to provide excellent out-of-band rejection while also maintaining low noise figure.

Many currently available dual-band GNSS receivers require additional RF circuits between the antenna and the receiver to properly set the overall system noise figure. This requires additional development time for an otherwise simple module integration. Many organizations don’t have the RF expertise to effectively design such a solution. The TFM.115AA captures the required additional RF circuits in modular form, allowing the designer to simply place the TFM.115AA between their GNSS antenna and GNSS receiver.

The TFM.115A offers > 25 dB gain across all applicable bands while maintaining a high Input P1dB of -25 dBm or better. Noise Figure is < 3.5 dB in the low bands in the high bands. A wide input voltage of +1.8 to +5.5 VDC allows for easy integration in most GNSS systems.

TFM.115A Features and Benefits:

  • Ease-of-integration – Single-package solution combines impedance matching, filter efficiency and low noise design for easy, drop-in use with any antenna or GNSS receiver
  • Low-noise System Design – Integrated pre-filters deliver exceptional out-of-band rejection across multiple band configurations and neighboring interference to properly set noise figure
  • Dual-gain Stage Architecture – Cascaded LNAs, pre-filters and optimized impedance matching deliver sufficient gain to the GNSS receiver without signal-to-noise overload
  • Low-profile Form Factor – Small footprint and low-profile design saves valuable real estate without the need for external components and routing
  • Accelerated Development Cycles – 2+ years of development by antenna and RF design experts, delivering the highest levels of integration, manufacturability and robustness in a single package
Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas
Mechanical Style Evaluation Board
Gain (Max) 4.41
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style SMD/SMT
Termination Style Connector
Antenna Connector Type SMA
Frequency Range 1176.45 - 1602MHz
Cable Length (mm) None
Packaging Bag
VSWR 0
GNSS Bands L1/L5/L-Band
Length (mm) 50
Width (mm) 45
Height (mm) 3
Weight (g) 15
