TG.09 4G Terminal Hinged SMA(M) Mount Monopole Antenna

TG.09.0113

Covering Worldwide 4G Bands between 700-3800MHz
Also Covers Several New 5G Sub 6GHz Bands
Rotatable Hinge Design for Optimal reception
SMA Male Connector as Standard
Dimensions: 72mm Ø10mm
RoHS & REACH Compliant

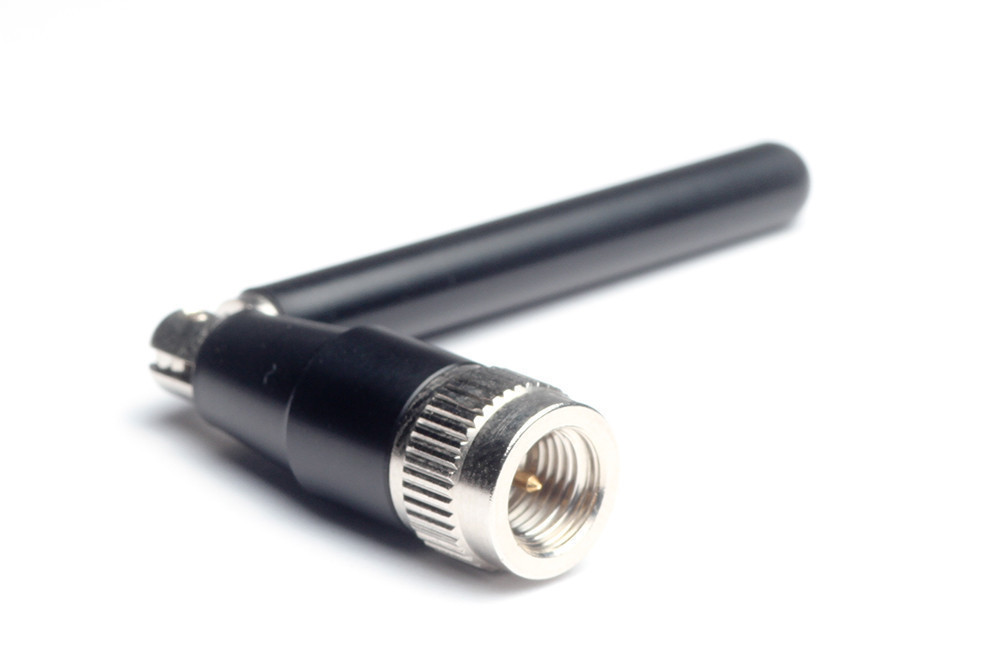

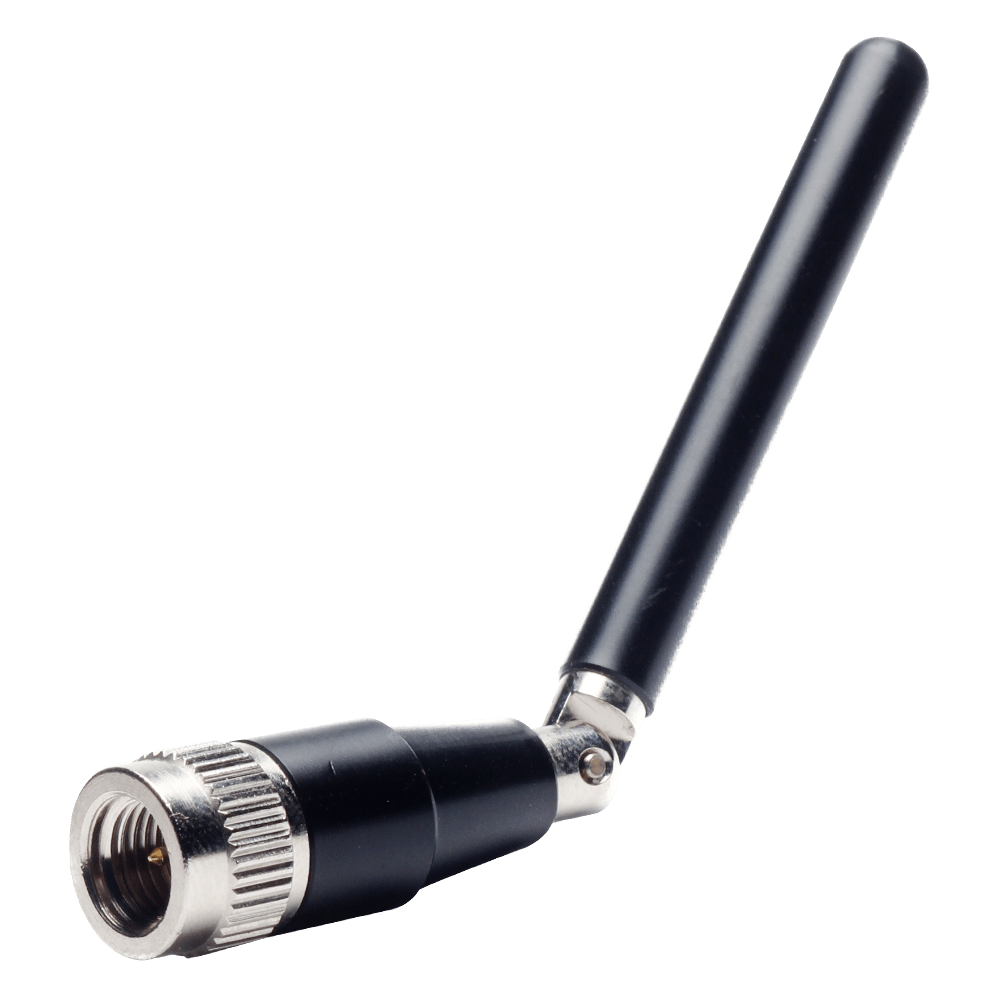

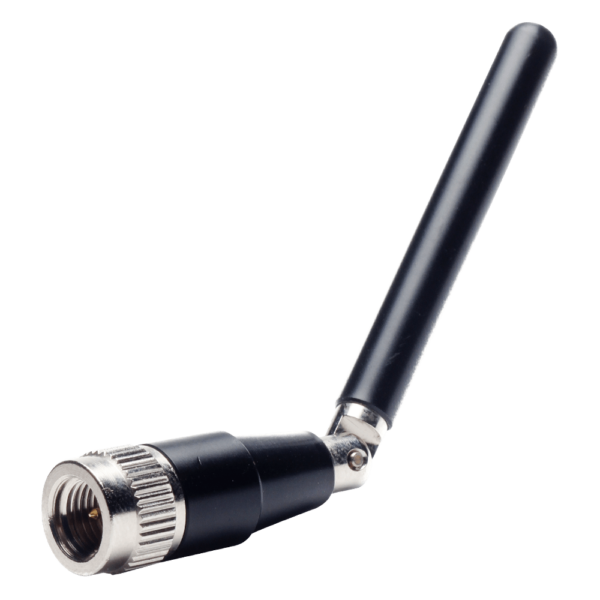

Image TG.09.0113

TG.09.0113

TG.09 4G Terminal Hinged SMA(M) Mount Monopole Antenna

Overview

High-Efficiency, Cellular, Hinged, Rotatable SMA Antenna

The Taoglas TG.09 Terminal Mount Cellular Hinged Rotatable SMA Antenna is a high efficiency monopole antenna. Compared to other much larger antennas on the market, it has superior wide-band high efficiency characteristics over worldwide 4G frequency bands. The TG.09 can also be compatible with some 5G Sub 6GHz cellular bands between 3500-3800MHz.

The unique rotatable hinge design enables the user to rotate the antenna to the best angle to optimize cellular signal reception. As the upper antenna element can move in any direction, it also reduces damage from impact force from any angle to the antenna, compared to traditional hinged right angle or fixed fight angle designs or straight antennas.

The small form factor of this antenna, coupled with excellent RF performance and an aesthetic high-end design, make it the ideal cellular antenna for routers, vehicle tracking devices, telematics devices, remote monitoring systems, and POS devices.

The TG.09, as do all monopole antennas, works best when connected directly to the ground-plane of the device main-board. Taoglas offers support services to characterize antenna efficiency on your individual device ground-plane.

The TG.09 antenna also supports LTE 700MHz band applications when it is directly connected to ground-planes with dimensions greater than 60mm.

Please contact Taoglas regional support center first if you wish to do PTCRB or network approvals with this antenna attached to your device, so we can check RF integration is correct and do a pre-test first to ensure optimized passive and active performance and a smooth and quick certification approval process.

The TG.09 is also available with a white enclosure – TG.09.0113W.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Connector Body Style Hinged
Polarity Linear
Frequency Range 700-3600MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging PE Bag, Carton
VSWR 0
RoHS Yes
Gain (Max) 1.2
Length (mm) 10
Width (mm) 10
Height (mm) 72
Weight (g) 8
