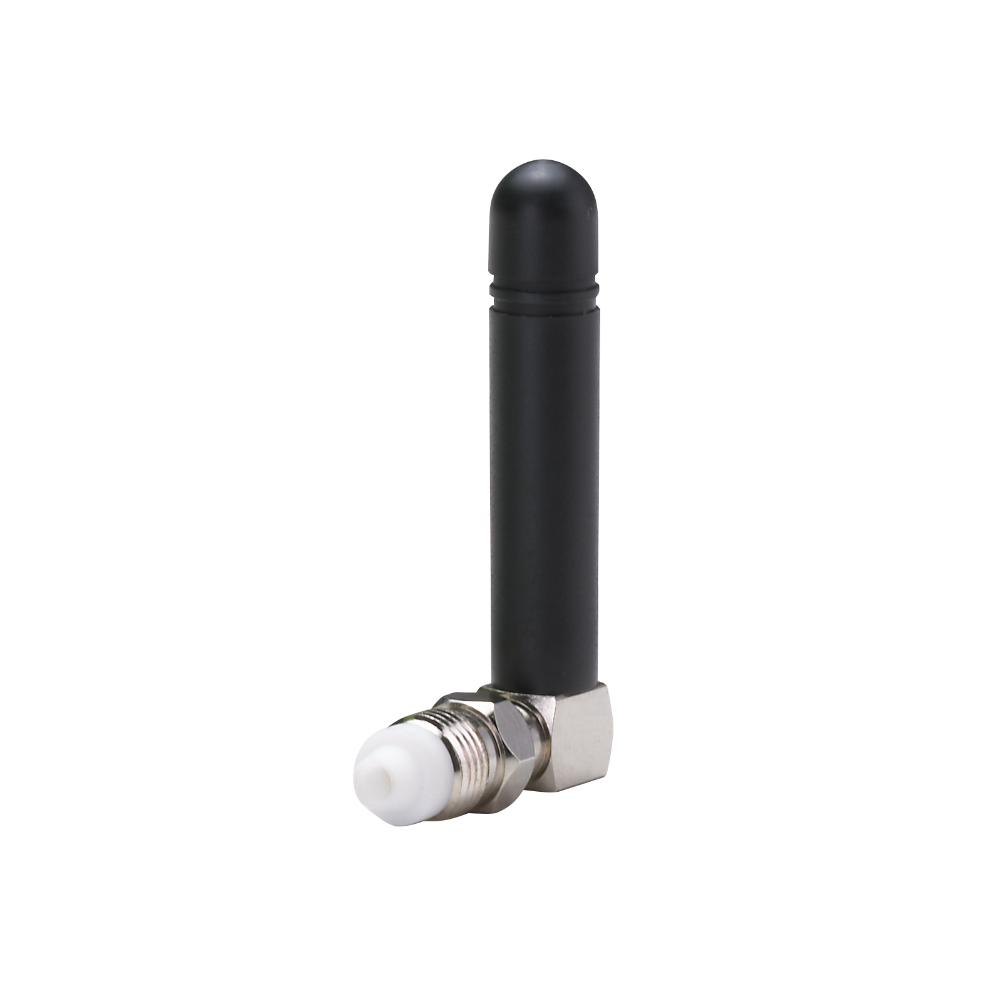

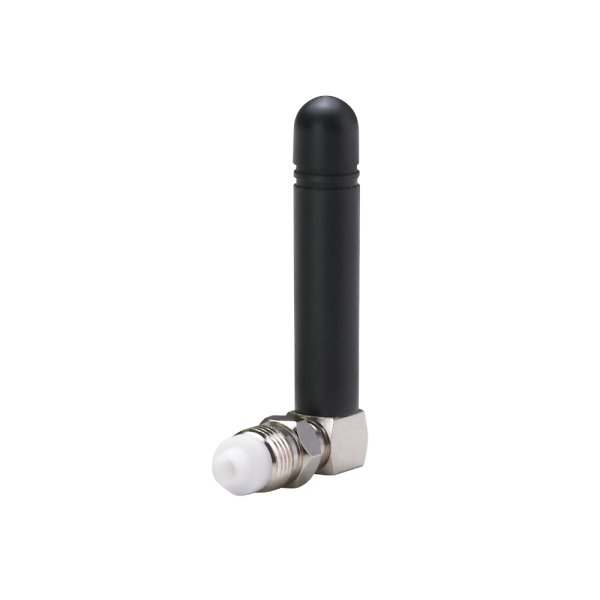

3G/2G Monopole Helical Antenna
824~896/880~960/1710~1880/1850~1990/1710~2170MHz
0dBi Gain; Efficiency >37%
FME(F)RA Fixed connector
Dims: 45*25mm, Ø: 7.8mm
Suitable for Non-Terrestrial Network applications
TG.22 3G/2G Cellular Connector Mount Monopole, FME(F)RA
TG.22.0222
TG.22.0222
TG.22 3G/2G Cellular Connector Mount Monopole, FME(F)RA
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Cellular, NTN/SatCom |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | SMB |
| Length (mm) | 7.8 |
| Width (mm) | 24.7 |
| Height (mm) | 45 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 824MHz - 2170MHz |
| Connector Polarity | Normal |
| VSWR | <3.5 |
| Weight (g) | 50 |
| RoHS | Yes |
| Gain (Max) | 3 |
