TG.22 3G/2G Cellular White Connector Mount Monopole, SMA(M)

TG.22.0111W

3dBi Penta-Band Monopole Helical Antenna
GSM-DCS-PCS-UMTS-CDMA-GPRS-EDGE-HSPA
824~896/880~960/1710~1880/1850~1990/1710~2170MHz
>30% Efficiency
SMA(M) Straight Plug
White Housing
Dimensions: H:48mm Ø:8mm

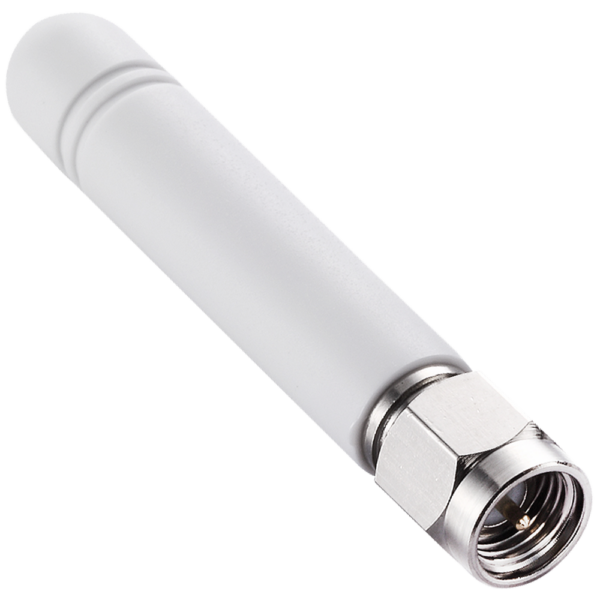

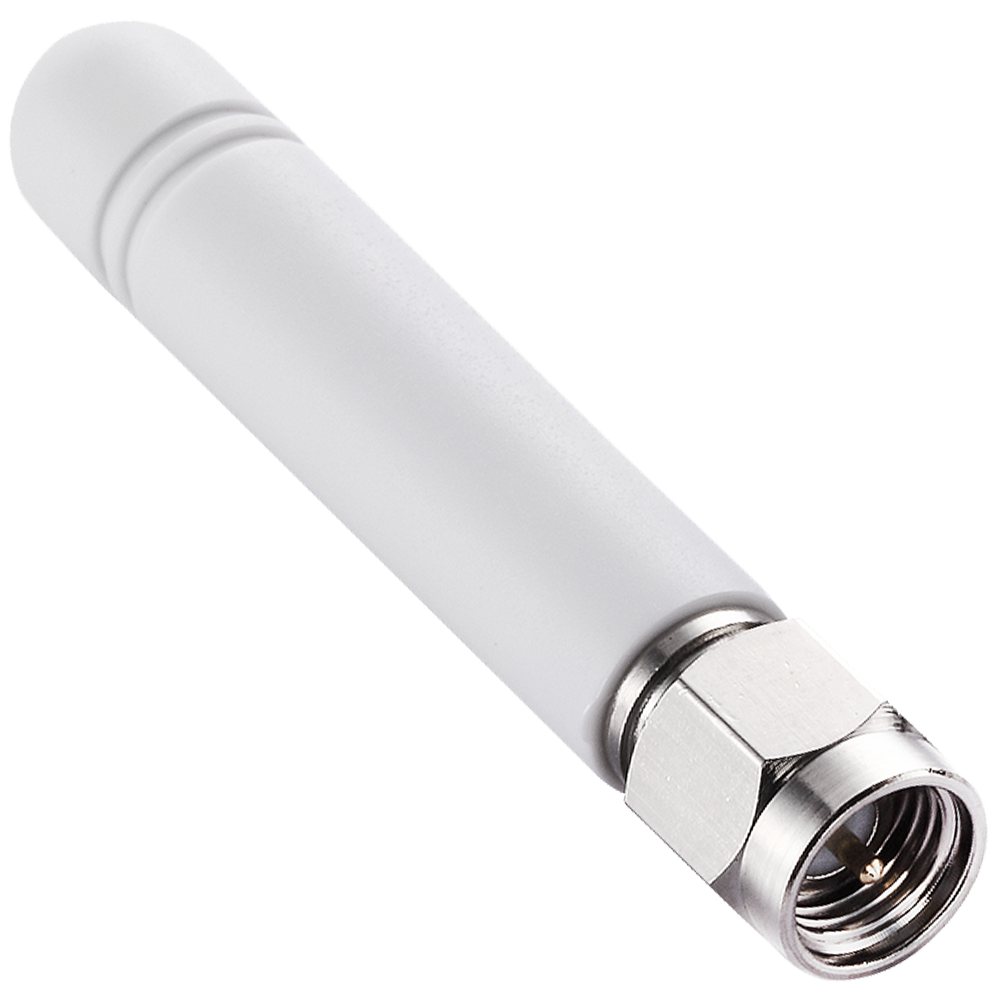

Image TG.22.0111W

TG.22.0111W

TG.22 3G/2G Cellular White Connector Mount Monopole, SMA(M)

Overview

The TG.22.0111W 2G/3G monopole helical antenna operates from 824MHz to 2170MHz on GSM-DCS-PCS-UMTS-CDMA-GPRS-EDGE-HSPA. Once mounted to an adequate ground-plane it is a compact robust terminal antenna with high gain and stable efficiency in a small form factor. Connection is made via straight SMA(M) connector.

Typical applications
  • Remote monitoring

At only 49mm in height, with a hardened TPEE casing, this antenna is the ideal GPRS/UMTS antenna for telematics devices where larger antennas cannot be used. Like all small monopole antennas, it must be mounted on a ground-plane to radiate efficiently. The antenna should be mounted at the edge of the ground-plane of the mainboard of the device. See below charts for analysis of performance. A larger ground-plane of more than 100mm is needed for stable performance on all bands. Also no metal should be used near the antenna, with at least 20mm of clearance required, the more clearance the better. For devices with ground-planes smaller than 100mm in length or where metal clearance is not adequate, alternative larger antennas should be considered such as the TG.30. If small size is needed, a custom-tuned solution or a new design may also be necessary. Contact your Taoglas regional sales office for support.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Connector Body Style Straight
Polarity Linear
Frequency Range 824 - 1990MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging PE Bag, Carton
VSWR 0
RoHS Yes
Gain (Max) 0.1
Length (mm) 7.8
Width (mm) 7.8
Height (mm) 48
Weight (g) 6
