TG.31.8113W Hinged Wideband 5G/4G White Antenna

TG.31.8113W

Highest efficiency for worldwide 5G/4G and Wi-Fi
4G LTE / CAT-M1 / NB-IoT / GPS / Wi-Fi
Compatible also with 2G/3G Applications
5G NR Sub 6GHz
600MHz – 6000MHz Band 71 Applicable
Dipole Swivel Terminal Antenna
Hinged 90° termination with SMA(M) Connector
Enhanced hinge structure for Vibration Environments
RoHS & REACH Compliant

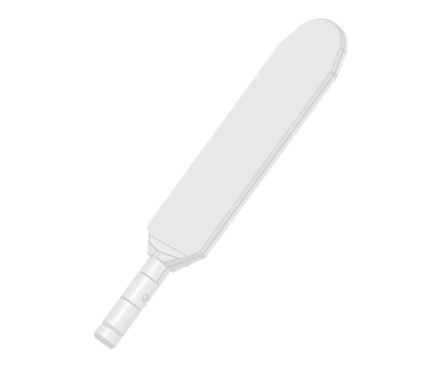

Image TG.31.8113W

TG.31.8113W

TG.31.8113W Hinged Wideband 5G/4G White Antenna

Overview

Wideband 5G/4G Antenna

The Taoglas TG.31.8113 has been expertly designed to meet the requirements of the next generation of 5G modules, gateways and routers. The TG.31 was created from the existing TG.30, meaning the already excellent TG.30 has been leveraged to create the TG.31. The antenna is a ground plane independent (Dipole) antenna with a SMA (M) connector and swivel mechanism that allows the antenna part to be rotated. The TG.31 exhibits high efficiency across the 600-6000MHz cellular spectrum.

Typical Applications Include:
– POS Kiosks
– Robotics and Autonomous
– Gateways and Routers
With very high efficiency on every cellular band globally, it is an ideal solution for any device requiring high, reliable performance. It is also guaranteed to meet any type of approval or carrier certification requirements from an RF standpoint. It is an omni-directional antenna, and the radiation patterns display this and are stable across all bands.

It has a quality robust UV resistant housing for use with wireless terminals. The swivel and hinge mechanism allows the antenna part itself to be orientated in different directions and can help avoid touching off other antennas or objects close by as well as helping with isolation by orientating the antenna in different directions in MIMO systems.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Connector Body Style Straight
Polarity Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging PE Bag, Carton
VSWR 0
RoHS Yes
Gain (Max) 3.94
Length (mm) 210
Width (mm) 45
Height (mm) 13
Weight (g) 60
