TG.42.0112 – LTE Wideband Terminal Mount Monopole Antenna


Small Form Factor Enclosure
LTE 600-3000MHz
SMA Male Right Angle Connector
Perfect for 4G routers
Dimensions: 62.5 x 17.5 x 8 mm
RoHS & Reach Compliant

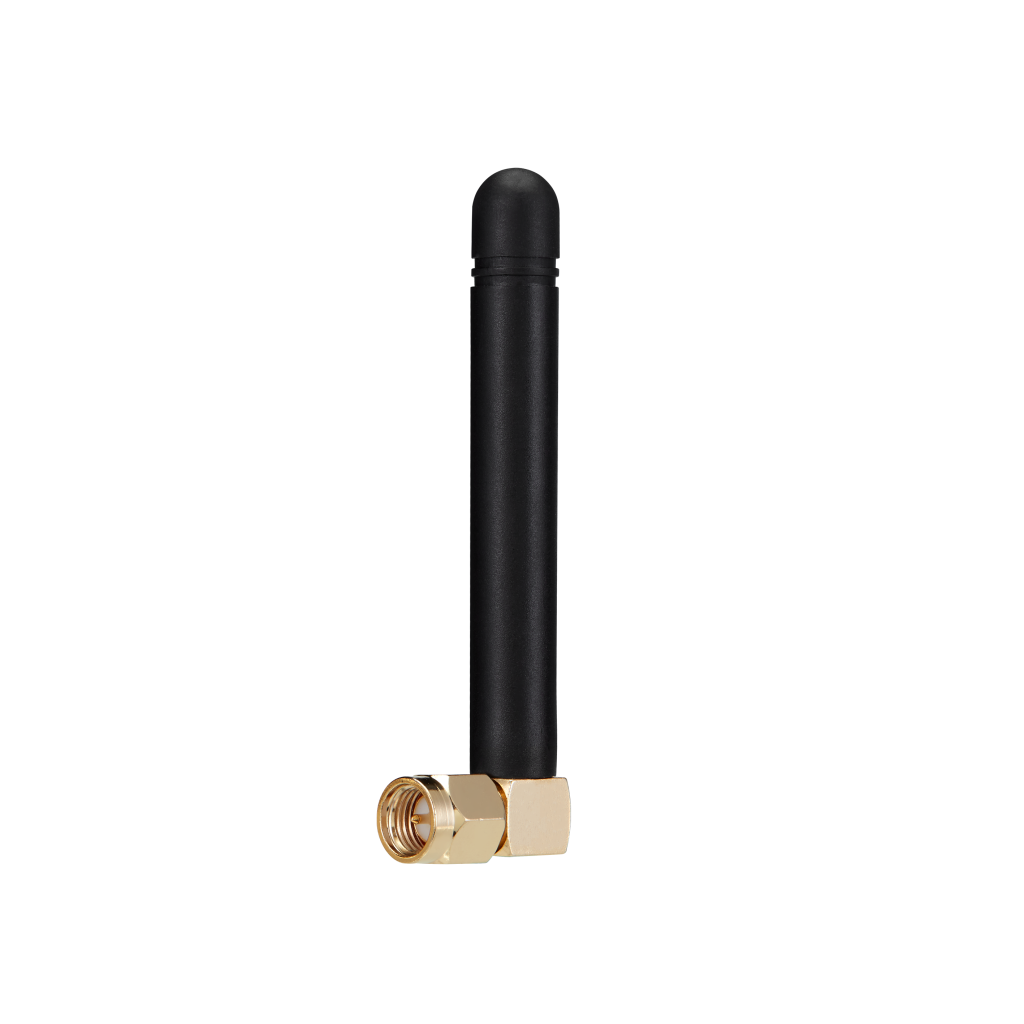

Image TG.42.0112


TG.42.0112 – LTE Wideband Terminal Mount Monopole Antenna


The Taoglas TG.42.0112 is a small terminal mount antenna designed to be directly mounted onto devices using the SMA Male right angle connector at the base of the enclosure. The TG.42 has been expertly designed to cover all major worldwide 4G LTE bands in a miniature form factor, with high efficiency and optimum peak gain.

The TG.42.0112 weighs just 8g so it is perfect for applications that may be weight sensitive such as UAVs and robotics. With the capability to cover Band 71, the TG.42 is one of the smallest wide bandwidth(600-3000MHz) terminal antennas on the market.

Typical Applications Include:
– Gateways and Routers
– Remote Monitoring
– Industrial IoT
– Smart Meters

For further information please contact your regional Taoglas customer support team.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Polarity Linear
Frequency Range 600 - 3000MHz
Connector Polarity None
Cable Length (mm) n/a
Packaging PE Bag, Carton
RoHS Yes
Gain (Max) 3.62
Length (mm) 63
Width (mm) 17
Height (mm) 45
Weight (g) n/a
