- Integrated Wideband 5G/4G Directional Antenna for DIGI IX10
- Wideband 5G/4G, covering 600-6000 MHz
- 2x 5G/4G Antennas
- Wall / Pole mount antenna
- IP67 rated waterproof enclosure
- Connector: RJ45
- Dimensions: 269 x 269.5 x 177 mm
- RoHS and Reach Compliant
Thunder THDR10PP Integrated Wideband 5G/4G Directional Antenna for DIGI IX10 including PoE Passive
THDR10PP
THDR10PP
Thunder THDR10PP Integrated Wideband 5G/4G Directional Antenna for DIGI IX10 including PoE Passive
Contact for Pricing/Information
Reach out to our Public Safety & Critical Infrastructure Team for more information and pricing.
Overview
Integrated Wideband 5G/4G Directional Antenna for DIGI IX10

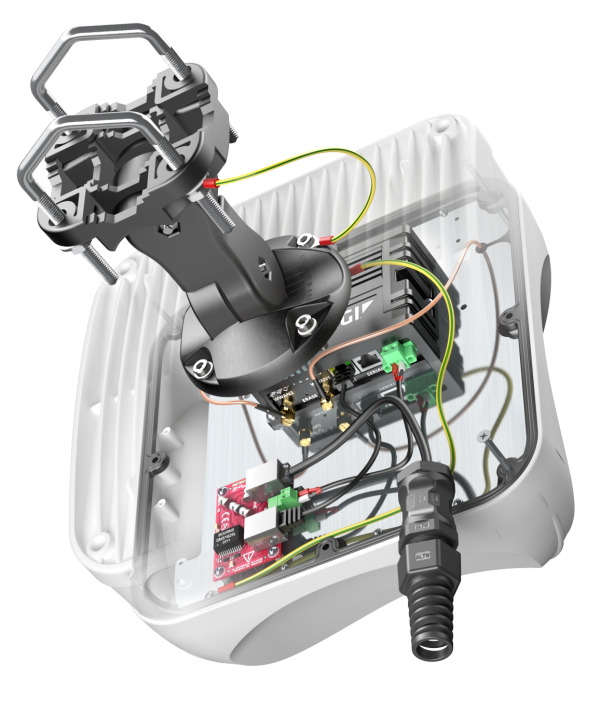

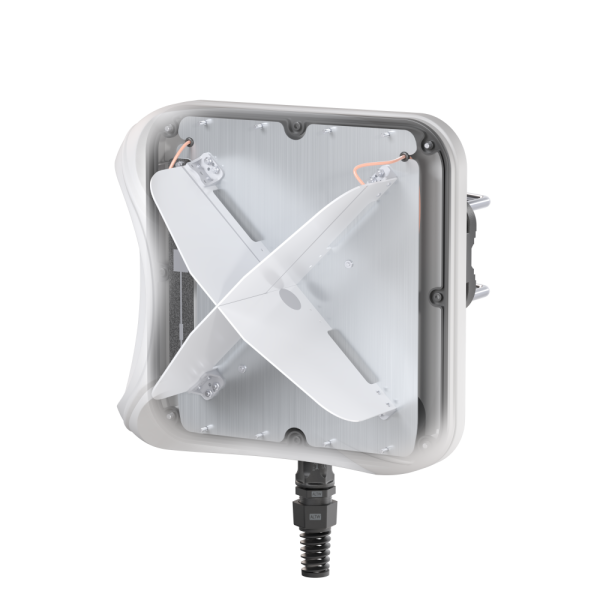

The Taoglas THDR10PP for DIGI IX10 Routers is a revolutionary outdoor antenna solution that combines minimized dimensions with exceptional antenna performance. It delivers reliable, high-speed wireless connectivity in even the most demanding environments. This all-in-one unit integrates high-gain directional 5G/4G antennas with DIGI routers into a compact, rugged IP67-rated enclosure. Integration reduces installation complexity while enabling rapid deployment of advanced outdoor 5G solutions.
Typical applications include:
- Remote and Hybrid Work Environments
- Branch and Retail Locations
- Industrial and Rugged Environments
- High-Bandwidth Applications
- Critical Communications and Public Safety
The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-6000 MHz, the THDR10PP is a fantastic solution for wideband cellular applications.
The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. NOTE: should only be used with a 24V (or lower voltage) Passive PoE power supply it is not compatible with an 802.3af/at power source.
Contact your regional Taoglas customer support team for more information.
Video
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 80 |
| Mounting Style | Pole, Wall |
| Termination Style | Connector Mount |
| Connector Type | RJ45 |
| Length (mm) | 269 |
| Width (mm) | 269.5 |
| Height (mm) | 177 |
| Cable Type | n/a |
| Connector Body Style | Straight |
| Polarization | Vertical |
| Frequency Range | 600 - 6000 MHz |
| Connector Polarity | Normal |
| VSWR | <3 |
| Weight (g) | 2800 |
| RoHS | Yes |
| Gain (Max) | 7 |
