- Integrated Multi-Band 5G/4G Omnidirectional Antenna for DIGI IX10
- Multi-band 5G/4G Antennas covering 600-6000 MHz
- 2 x 5G/4G Antenna
- Wall / Pole mount antenna
- IP67 rated waterproof enclosure
- Connector: RJ45
- Dimensions: 157 x 158 x 158 mm
- RoHS and REACH Compliant
Thunder Lite THOR10LPA Integrated Wideband 5G/4G Omnidirectional Antenna for DIGI IX10 including PoE Active
THOR10LPA
THOR10LPA
Thunder Lite THOR10LPA Integrated Wideband 5G/4G Omnidirectional Antenna for DIGI IX10 including PoE Active
Contact for Pricing/Information
Reach out to our Public Safety & Critical Infrastructure Team for more information and pricing.
Overview
Integrated Wideband 5G/4G Lite Omnidirectional Antenna for DIGI IX10

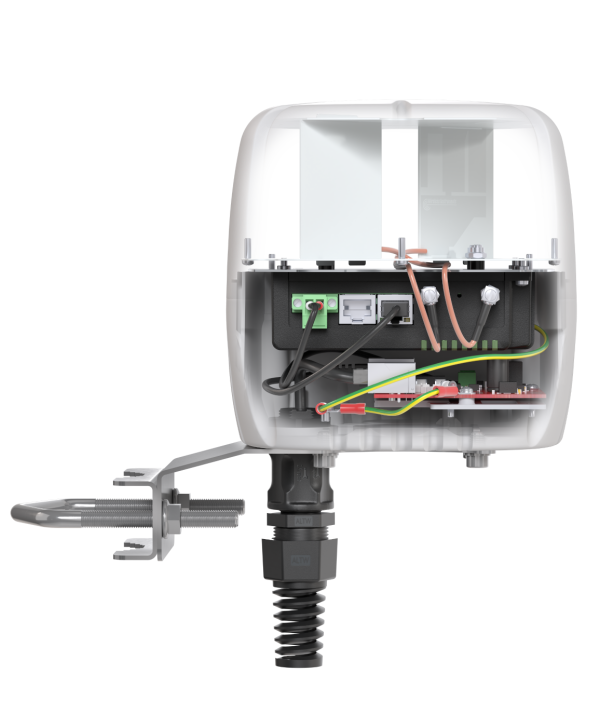

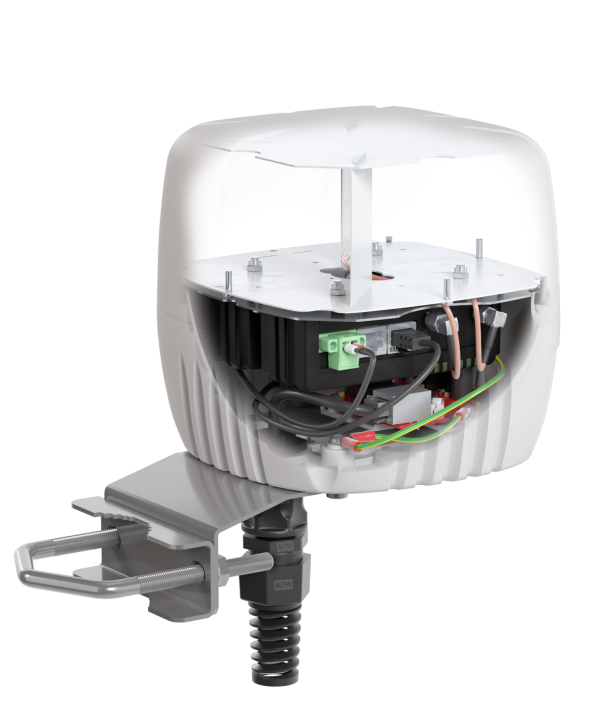

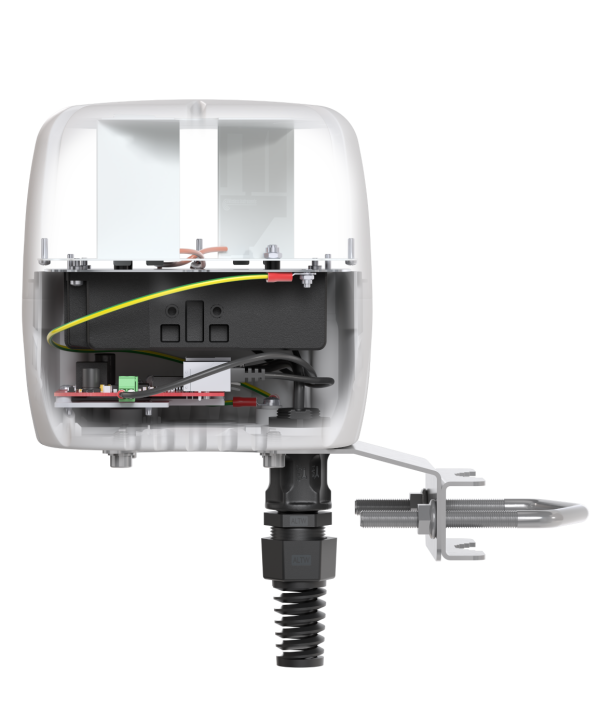

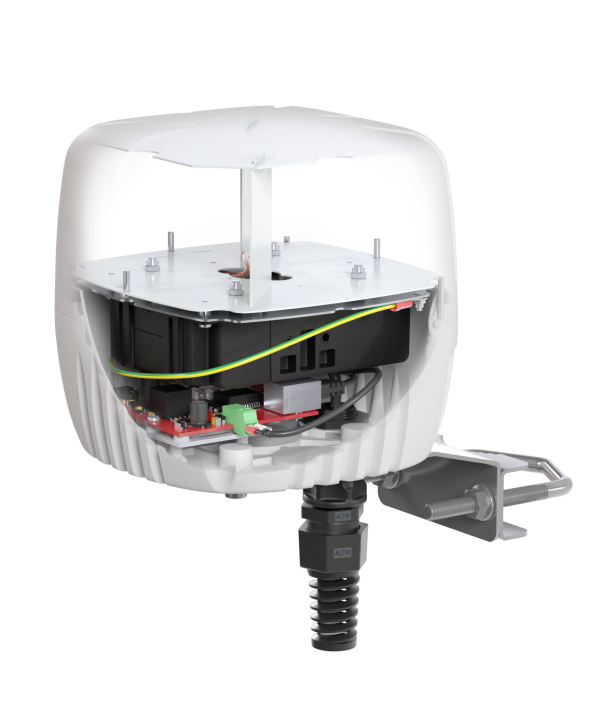

The Taoglas THOR10LPA for DIGI IX10 Routers is a revolutionary outdoor antenna solution that combines minimized dimensions with exceptional antenna performance. It delivers reliable, high-speed wireless connectivity in even the most demanding environments. This all-in-one unit integrates high-gain omnidirectional 5G/4G antennas with DIGI routers into a compact, rugged IP67-rated enclosure. Integration reduces installation complexity while enabling rapid deployment of advanced outdoor 5G solutions.
Typical applications include:
- Remote and Hybrid Work Environments
- Branch and Retail Locations
- Industrial and Rugged Environments
- High-Bandwidth Applications
- Critical Communications and Public Safety
The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-6000 MHz, the THOR10LPA is a fantastic solution for wideband cellular applications.
The set contains a Active 802.3af PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. Using Taoglas splitter provides 3KA surge and lightning protection.
Contact your regional Taoglas customer support team for more information.
Video
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 80 |
| Mounting Style | Pole, Wall |
| Termination Style | Connector Mount |
| Connector Type | RJ45 |
| Length (mm) | 158 |
| Width (mm) | 158 |
| Height (mm) | 157 |
| Cable Type | n/a |
| Connector Body Style | Straight |
| Polarization | Vertical |
| Frequency Range | 600 - 6000 MHz |
| Connector Polarity | Normal |
| VSWR | <2.5 |
| Weight (g) | 1500 |
| RoHS | Yes |
| Gain (Max) | 4 |
