- Integrated 5G/4G Omni Antenna for Ericsson (Cradlepoint) R980
- Wideband 5G, Wi-Fi®, and GNSS. covering 600-6000 MHz
- 1 x GNSS, 2 x Wi-Fi®, and 4 x 5G/4G Antennas
- Wall / Pole mount antenna
- IP67 rated waterproof enclosure
- Connector: RJ45
- Dimensions: 272 x 276 x 100 mm
- RoHS and REACH Compliant
Thunder THOR98PA Integrated Wideband 5G/4G Omnidirectional Antenna for Ericsson R920 including PoE Active
THOR98PA
THOR98PA
Thunder THOR98PA Integrated Wideband 5G/4G Omnidirectional Antenna for Ericsson R920 including PoE Active
Contact for Pricing/Information
Reach out to our Public Safety & Critical Infrastructure Team for more information and pricing.
Overview
Integrated Multi-Band 5G/4G Omnidirectional Antenna for Ericsson (Cradlepoint) R980

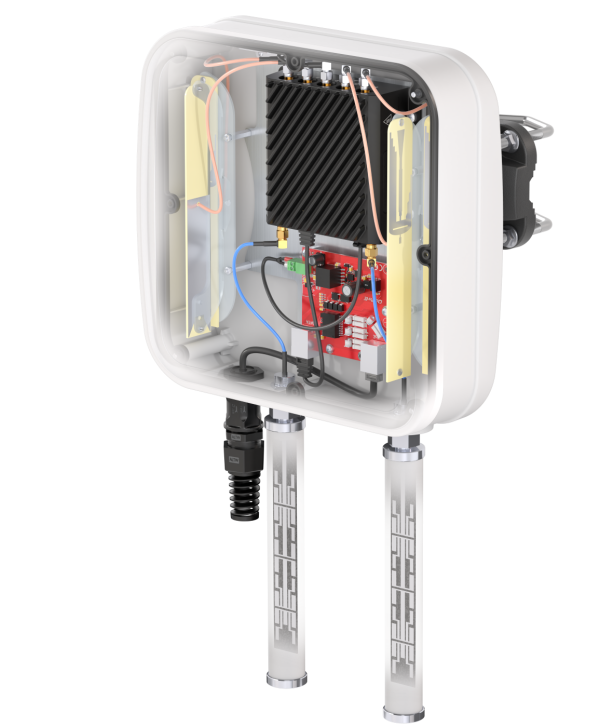

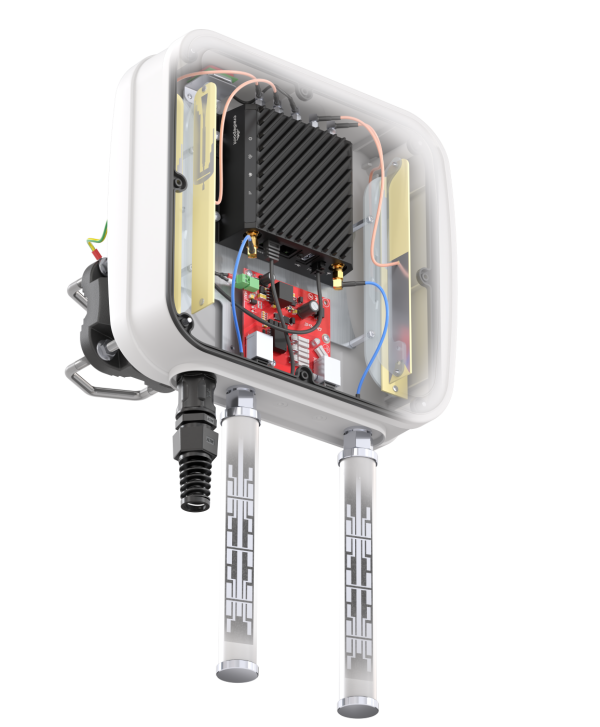

The Taoglas THOR98PA is an all-in-one antenna for Ericsson (Cradlepoint) R980 routers is a perfect outdoor device for mobile and fixed installations like industrial, public, CCTV, hotspots, and yachts. It has embedded omnidirectional 5G, Wi-Fi®, and GNSS antennas. If you use the Ericsson (Cradlepoint) R980 router with the THOR98PA Thunder omnidirectional antenna, you get a complete integrated solution with embedded router and multi-band antennas in one enclosure.
Typical applications include:
- Critical Communications and Public Safety
- Transportation & Fleet Management
- Industrial and Rugged Environments
- Enterprise & IoT Deployments
The heavy-duty, fully IP67 rated external ASA enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-6000 MHz, the THOR98PA is a fantastic solution for 5G, Wi-Fi®, and GNSS applications.
The set contains an Active PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.
Contact your regional Taoglas customer support team for more information.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 75 |
| Mounting Style | Pole, Wall |
| Termination Style | Connector Mount |
| Connector Type | RJ45 |
| Length (mm) | 276 |
| Width (mm) | 272 |
| Height (mm) | 100 |
| Cable Type | n/a |
| Connector Body Style | Straight |
| Polarization | Vertical |
| Frequency Range | 600 - 6000 MHz |
| Connector Polarity | Normal |
| VSWR | <2 |
| Weight (g) | 1800 |
| RoHS | Yes |
| Gain (Max) | 7.5 |
