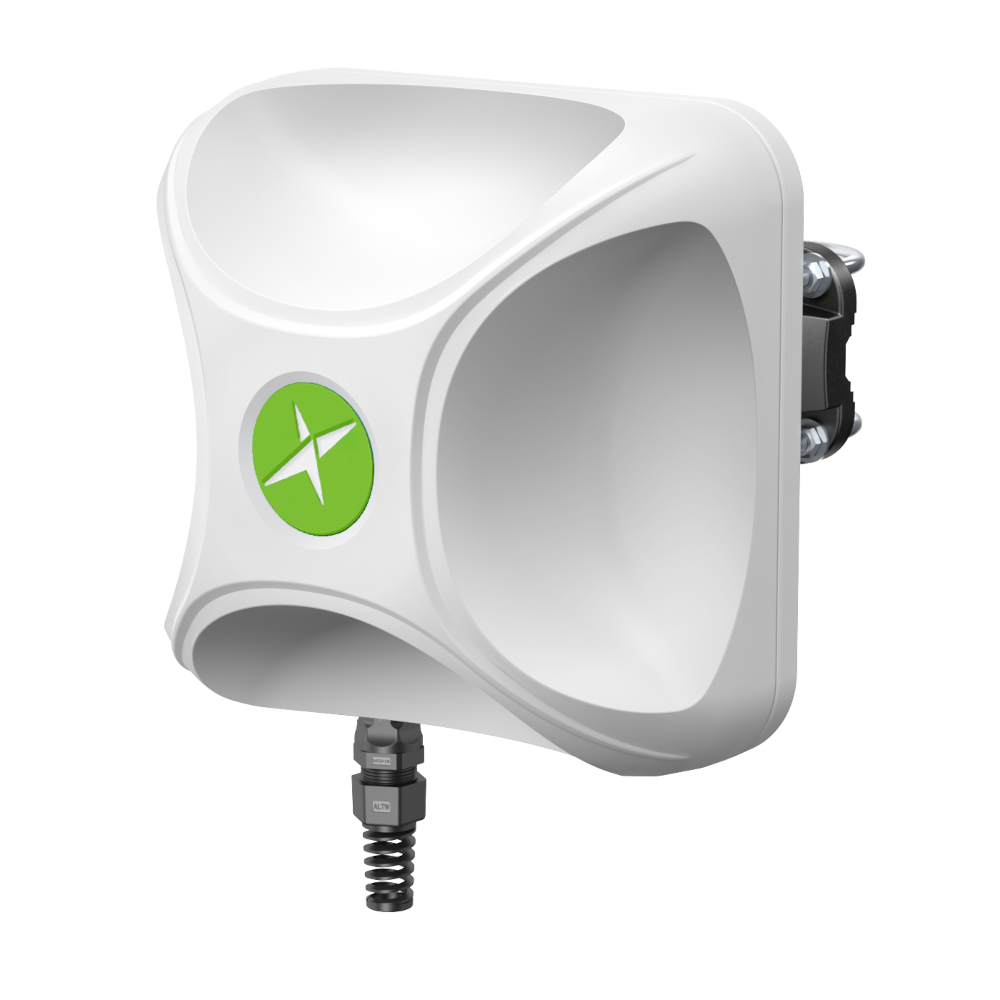

Integrated Multi-Band 5G/LTE Directional Antenna for Ericsson S400
Multi-band 5G, Wi-Fi®, and GNSS, covering 600-7125 MHz
1* GNSS, 1* Wi-Fi®, & 2* 5G/LTE Antennas

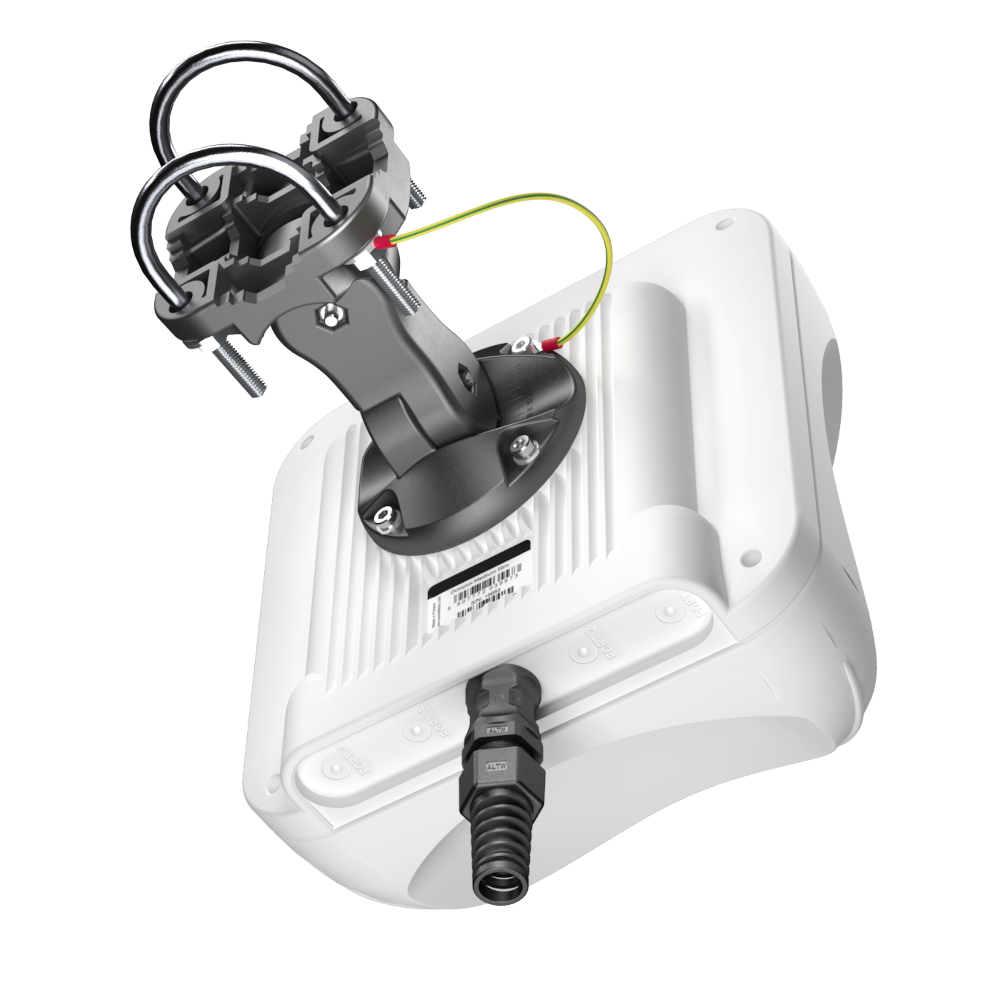

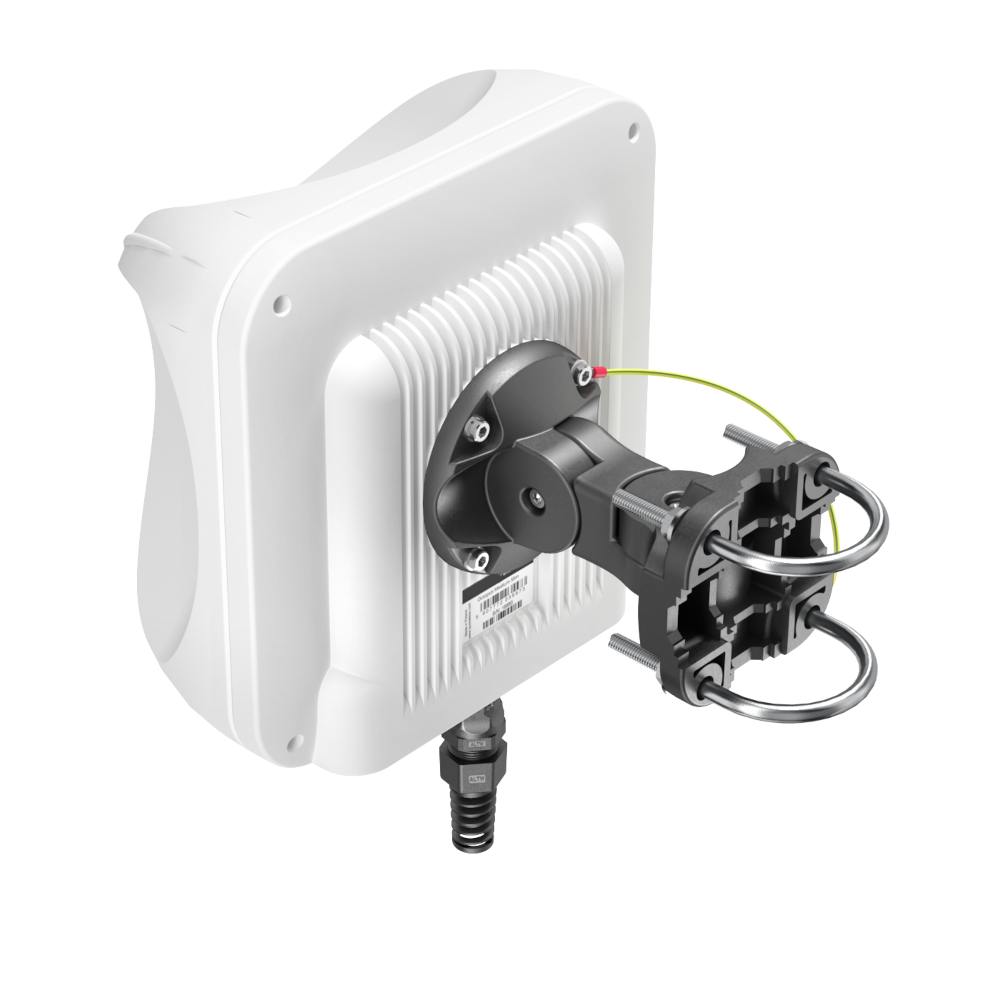

Wall / Pole mount antenna
IP67 rated waterproof enclosure
Connector: RJ45
Dimensions: 269 x 270 x 177 mm
RoHS and Reach Compliant
Integrated Multi-Band 5G/LTE Directional Antenna for Ericsson (Cradlepoint) S400

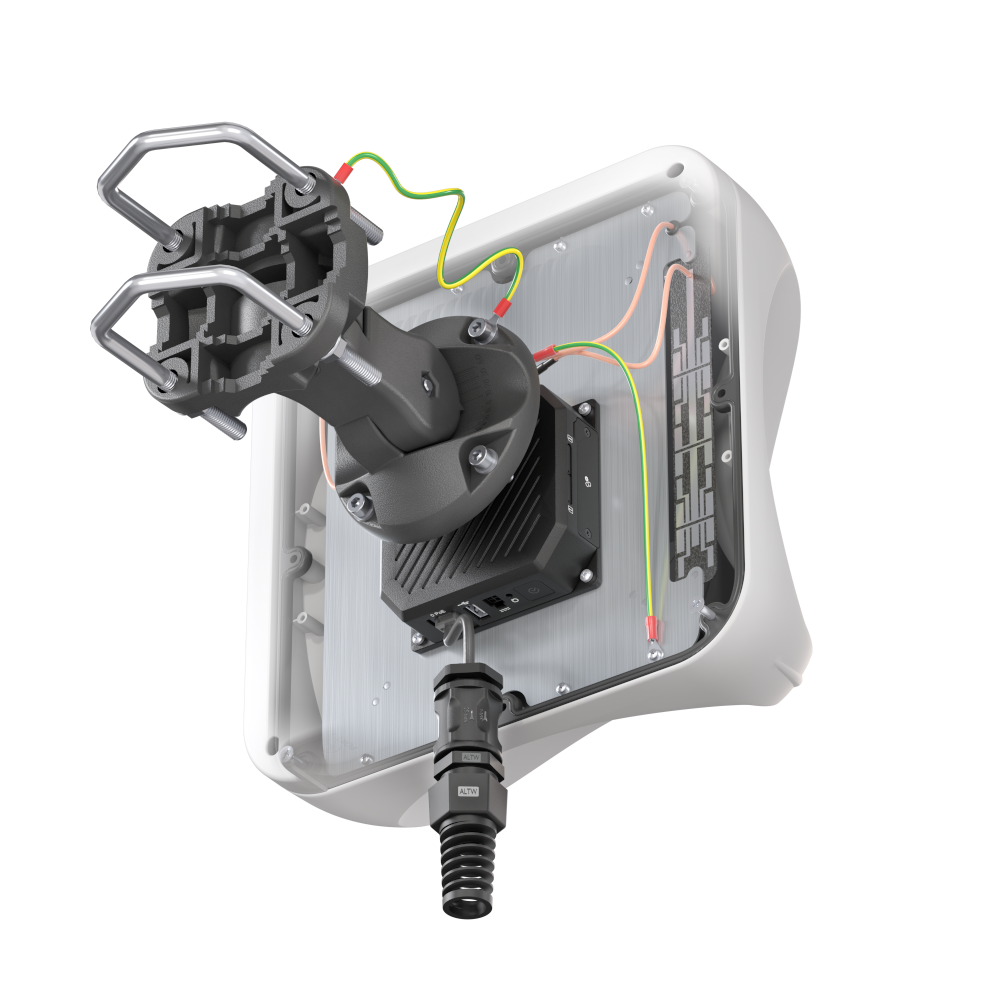

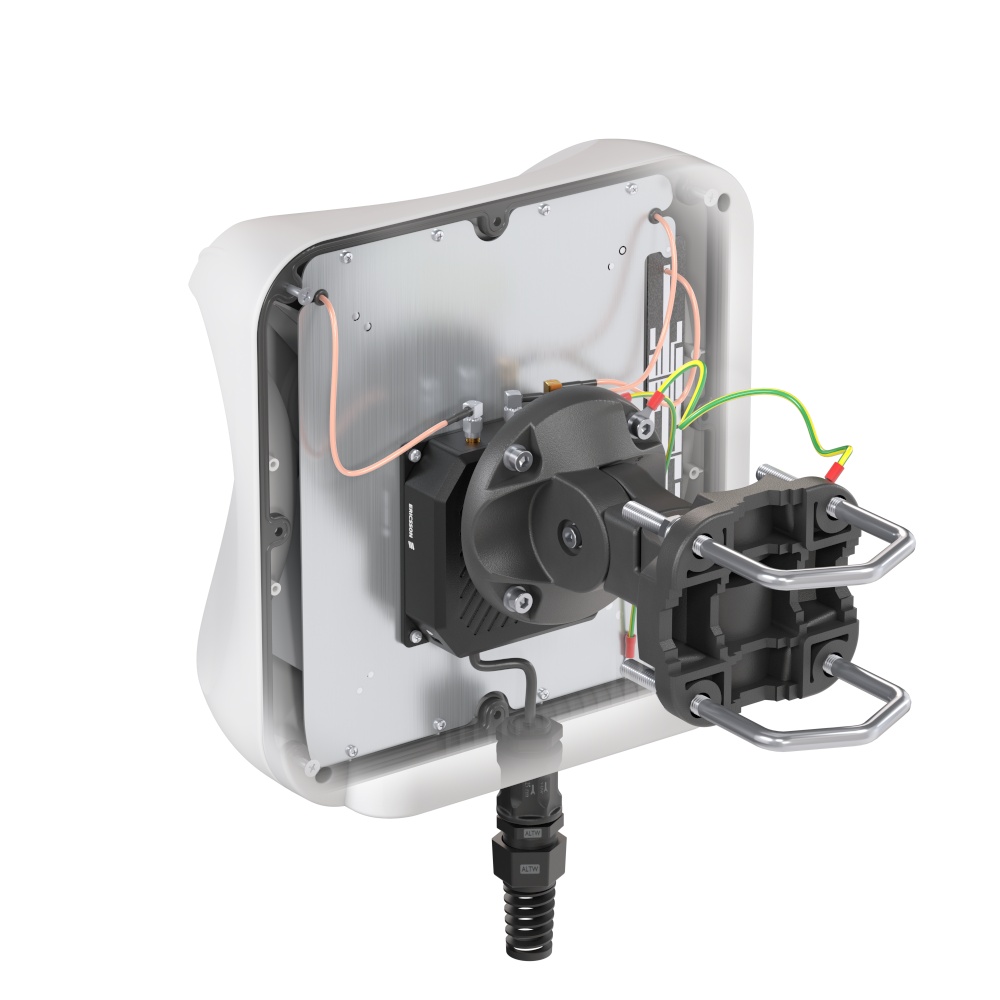

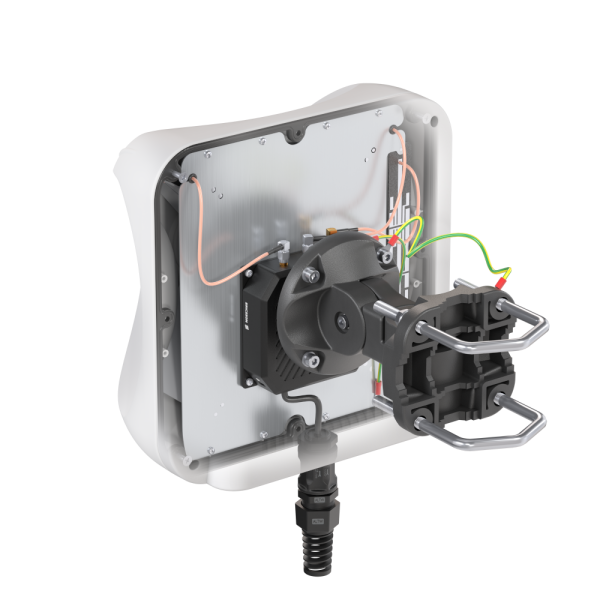

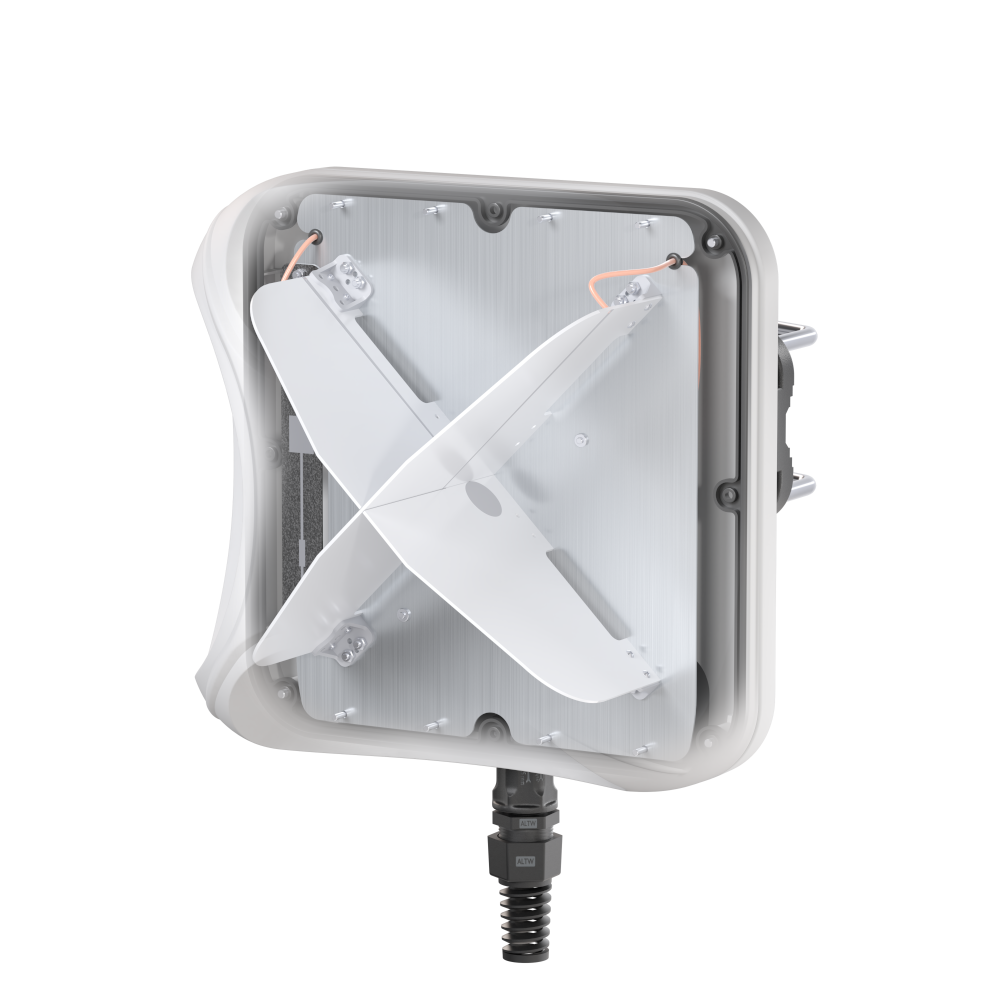

The Taoglas THDR40 is an outdoor antenna for Ericsson (Cradlepoint) S400 routers is a perfect outdoor device for improving the signal in rural/suburban and locations where the mobile signal is weak. It has embedded directional 5G and Wi-Fi® antennas. If you use the Ericsson S400 router with the THDR40 Thunder Integrated Directional antenna you get a complete integrated solution with embedded router and multi-band antennas in one enclosure.
Typical applications include:
– Critical Communications and Public Safety
– Transportation & Fleet Management
– Industrial and Rugged Environments
– Enterprise & IoT Deployments
The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-7125 MHz, the THDR40 is a fantastic solution for 5G, Wi-Fi®, and GNSS applications.
Contact your regional Taoglas customer support team for more information.
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 80 |
| Mounting Style | Wall/Pole |
| Termination Style | Connector |
| Antenna Connector Type | RJ45 |
| Length (mm) | 269 |
| Width (mm) | 270 |
| Height (mm) | 177 |
| Cable Type | n/a |
| Connector Body Style | Straight |
| Polarity | RHCP, Vertical |
| Frequency Range | 600MHz - 7125MHz |
| Connector Polarity | Normal |
| VSWR | <3 |
| Weight (g) | 2800 |
| RoHS | Yes |
| Gain (Max) | 7.5 |
