868-915MHz LoRA Band
Omni-Directional Radiation Pattern
Robust, Lightweight TPEE Enclosure
Dimensions: Ø7 x 54mm
Connector: SMA Male
RoHS & Reach Compliant

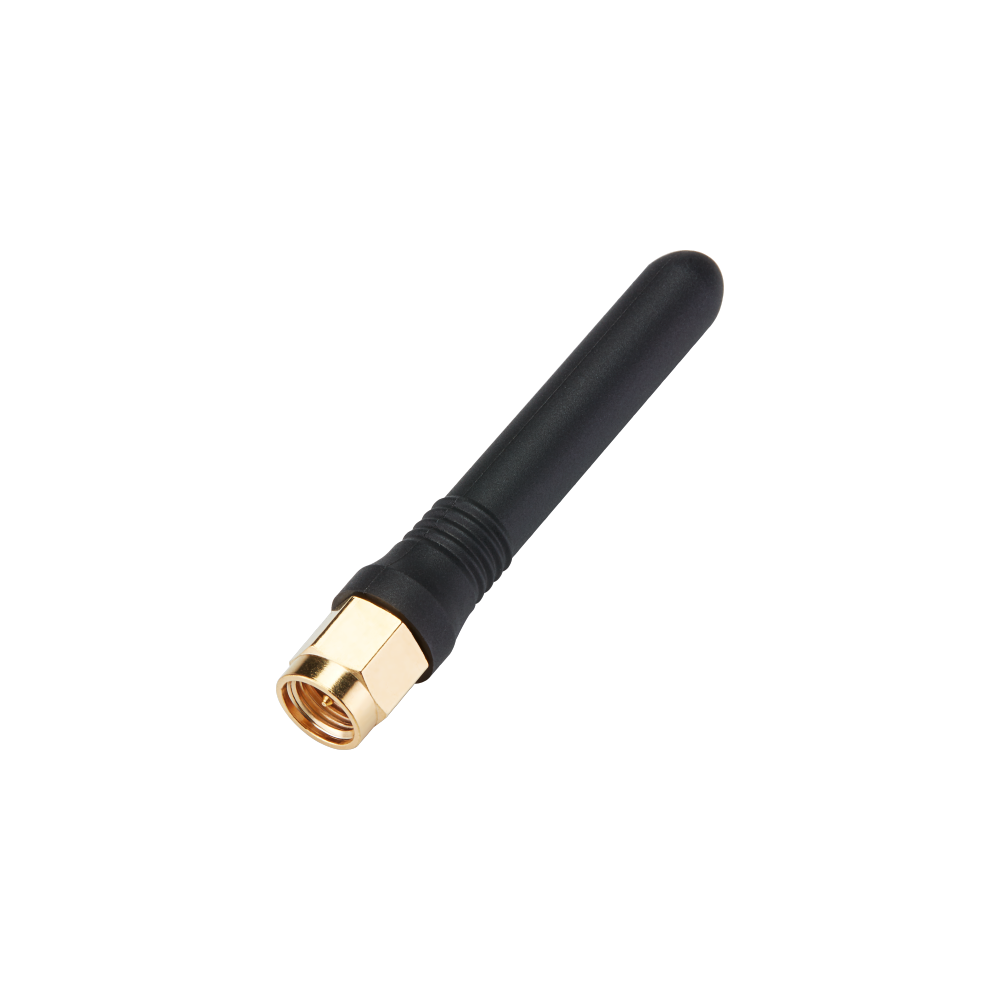

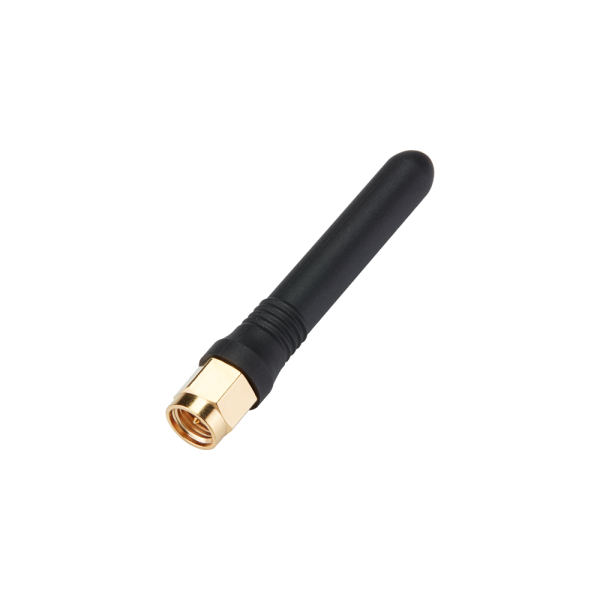

TI.08.C.0111 – 868-915MHz ISM Band Terminal Antenna
TI.08.C.0111
TI.08.C.0111
TI.08.C.0111 – 868-915MHz ISM Band Terminal Antenna
Overview
868-915MHz ISM Band Terminal Antenna
The TI.08.C.0111 is a powerful ISM band terminal mount antenna for emerging 868-915MHz LPWA technologies including LoRa and Helium. It has 25% efficiency in free space but performs best, with an efficiency of up to 78%, when mounted on a ground plane.
It easily attaches externally to a user device via an SMA male straight connector and is therefore a quick and easy solution, ready for immediate deployment. The robust and ruggedized TPEE housing makes it ideal in even the most demanding of applications.
Typical applications include:
– Remote Monitoring
– Smart Metering
– Mesh Networks
– Helium Networks
– Smart Home
For further information or support with integrating this antenna into your device, please contact your regional Taoglas customer support team.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, ISM/LoRA |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 7 |
| Width (mm) | 7 |
| Height (mm) | 54 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 860MHz - 928MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | n/a |
| VSWR | 1.5:1 |
| Weight (g) | 7 |
| RoHS | Yes |
| Gain (Max) | 0.1 |
