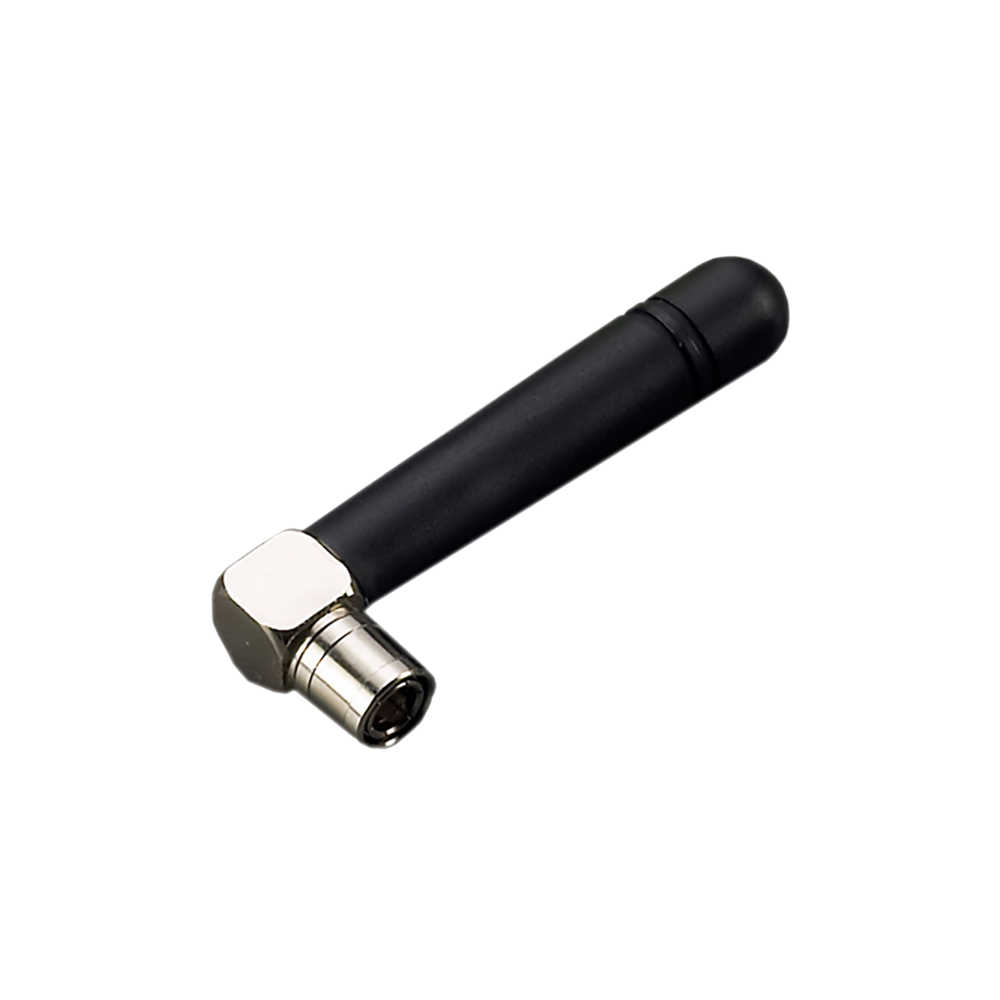

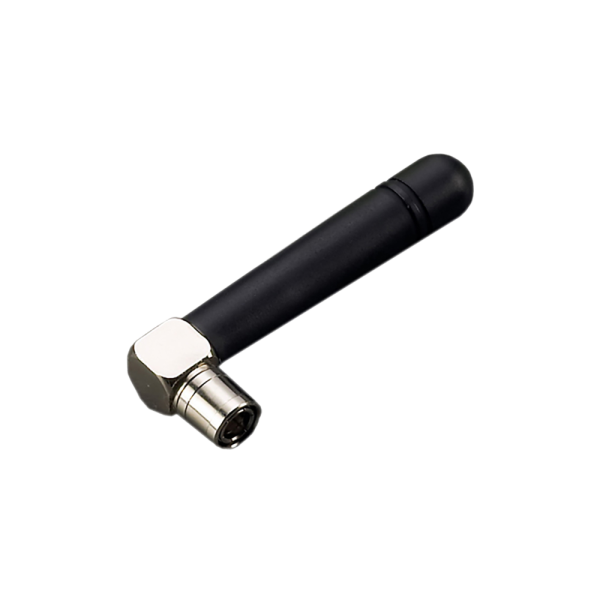

0dBi 433MHz Terminal Antenna
SMB(F)RA Connector
Dims:45*14.7mm Ø8mm
TI.10 433MHz Terminal Antenna SMB(F)RA
TI.10.0422
TI.10.0422
TI.10 433MHz Terminal Antenna SMB(F)RA
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, ISM/LoRA |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | SMB |
| Length (mm) | 7.8 |
| Width (mm) | 14.7 |
| Height (mm) | 45 |
| Connector Body Style | Right Angle |
| Polarity | Linear |
| Frequency Range | 433MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | n/a |
| VSWR | 1.5:1 |
| Weight (g) | 8.5 |
| RoHS | Yes |
| Gain (Max) | 1.31 |
