- Terminal Mount Waterproof Antenna
- Covering 860-930MHz Bands
- Dipole Structure with Real Omni-Directional Radiation Pattern
- Ground Independent
- IP67 Rated Enclosure Design
- Dims: Ø 13 x 180mm
- Connector: Standard SMA(M)
- RoHS & Reach Compliant
TI.89.B ISM/LoRa (860-930 MHz) Terminal Mount Antenna 2dBi SMA(M) Fixed Straight Waterproof Enclosure
TI.89.B.2111
TI.89.B.2111
TI.89.B ISM/LoRa (860-930 MHz) Terminal Mount Antenna 2dBi SMA(M) Fixed Straight Waterproof Enclosure
Overview
TI.89.B ISM/LoRa (860-930 MHz) Terminal Mount Antenna 2dBi SMA(M) Fixed Straight Waterproof Enclosure

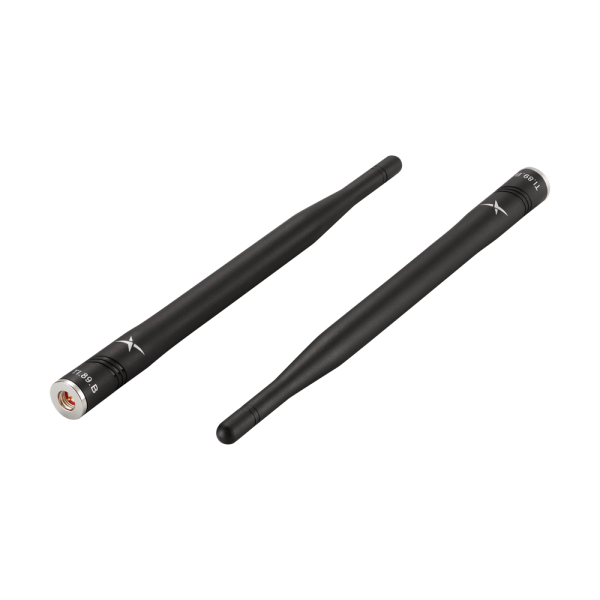

The Taoglas TI.89.B is a high-performance 860-930MHz terminal antenna designed for reliable long-range wireless communication in ISM, LoRaWAN, Sigfox, and RFID applications. The standard dipole structure design featuring a 2dBi peak gain, omnidirectional radiation pattern and ground independent, this antenna ensures stable and consistent signal coverage across a wide frequency band. Its enclosure is designed to be IP67 rated when installed correctly making it suitable for use in hard environments.
Typical Applications:
- LoRaWAN Gateways and Nodes
- Smart Metering
- Industrial IoT (IoT)
- Smart Agriculture
- Asset and Fleet Tracking
- Environmental Monitoring
- Smart Cities
- Security and Access Control
Engineered with a robust, durable TPEE housing, the TI.89.B is ideal for both indoor and outdoor deployments where environmental resistance and signal integrity are critical. Its SMA(M) fixed straight connector allows for easy installation directly onto terminals, gateways, or IoT devices, ensuring a secure and reliable RF connection.
The antenna connector type can be customizable, please contact your regional Taoglas customer support team for installation guidelines or additional support to integrate and test this antenna’s performance in your device.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, ISM/LoRA |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal Mount |
| Termination Style | Connector Mount |
| Connector Type | SMA |
| Length (mm) | 13 |
| Width (mm) | 13 |
| Height (mm) | 180 |
| Connector Body Style | Straight |
| Polarization | Linear |
| Frequency Range | 860 - 930 |
| Connector Polarity | Normal |
| VSWR | <2.5 |
| Weight (g) | 23 |
| RoHS | Yes |
| Gain (Max) | 3.79 |
