TI.92.2113 – 2dBi 915MHz Terminal Mount Hinged Dipole Antenna

TI.92.2113

ISM 915MHz Band Operation
High Efficiency up to 80%
Hinged SMA (M) Connector
Height: 198mm
Diameter: 13mm
RoHS & Reach Compliant

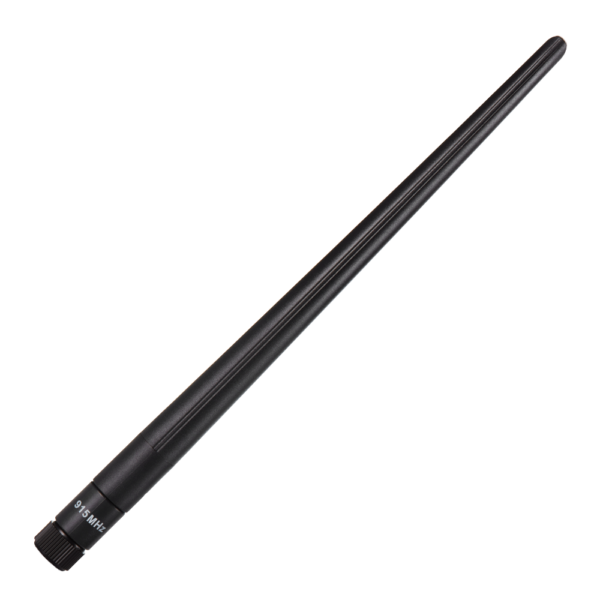

Image TI.92.2113

TI.92.2113

TI.92.2113 – 2dBi 915MHz Terminal Mount Hinged Dipole Antenna

Overview

915MHz Terminal Mount Dipole Antenna

The TI.92.2113 is a high performance 915MHz Terminal mount Dipole antenna, it is 198mm tall and 13mm in diameter and can be mounted straight or right angled due to its hinged SMA(M) connector which comes as standard. This antenna performs very well in free space, making it an ideal solution in areas where there may be no ground plane.

Typical Applications include:

• Smart Metering
• Remote Monitoring
• Industrial IoT
• Connected Enterprise

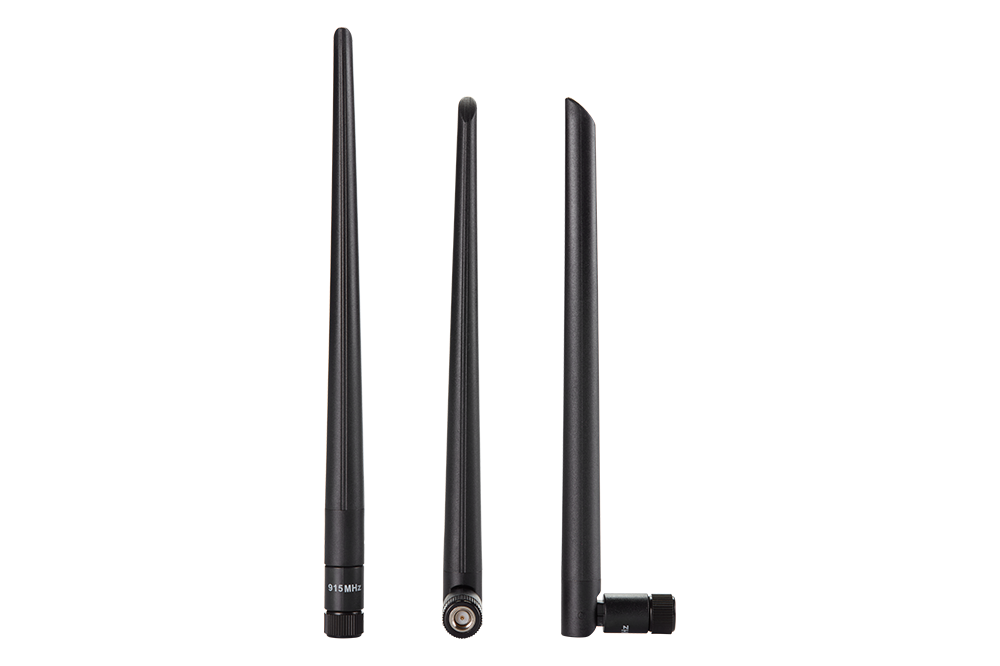

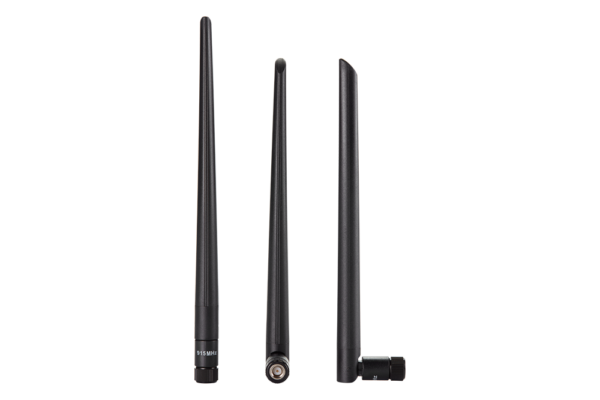

The TI.92 is manufactured using TPEE which makes it very lightweight at just 22.5g. The swivel and hinge mechanism allows the antenna to be orientated in different directions which helps to avoid other antennas or objects. The antenna connector type can be customizable, please contact your regional Taoglas customer support team for installation guidelines or additional support to integrate and test this antenna’s performance in your device.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Connector Body Style Hinged
Polarity Vertical
Frequency Range 860-880MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Box, Carton
VSWR 0
RoHS Yes
Gain (Max) 2.9
Length (mm) 13
Width (mm) 13
Height (mm) 198
Weight (g) 22.5
