LAN Transformer 10/100 Base-T

TM42430ANL

10/100 Base-T LAN Transformer.
Single Port and 24pin SMT.



Features:

  • 3Wire/Cable
  • Industrial grade

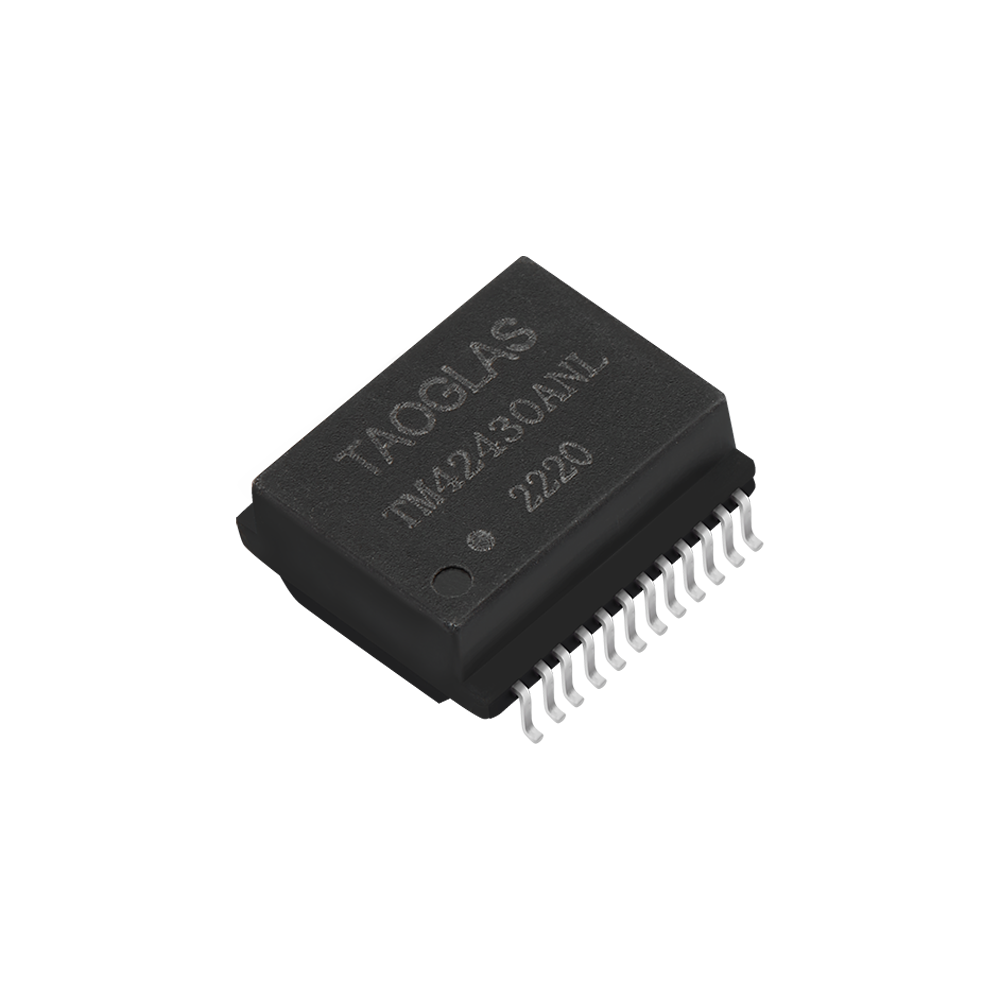

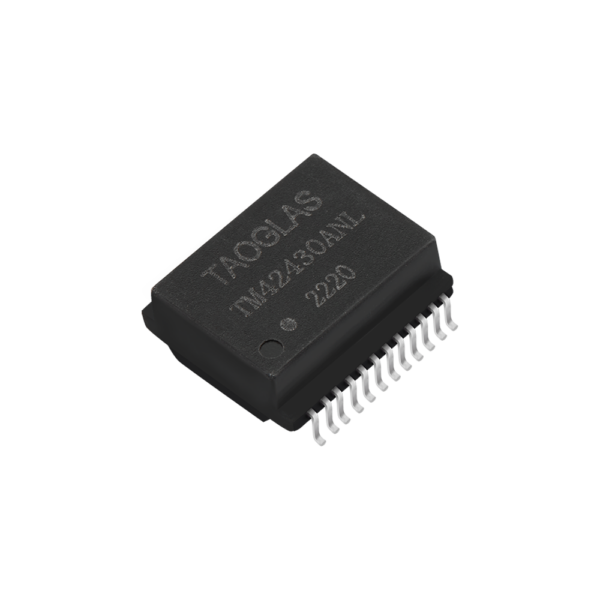

Image TM42430ANL

TM42430ANL

LAN Transformer 10/100 Base-T

Overview

10/100 Base-T LAN Transformers

Featuring compatible footprint with industry LAN transformers and designed to work in industrial environmental conditions, the Toaglas TM42430ANL is a 10/100 Base-T Single Port of 24pin with 3 wire Common Mode Choke on the cable side to offer better EMI performance.

Typical Applications of 10/100 Base-T LAN Transformers Include:

  • Industrial Automation
  • Hubs
  • Routers
  • Switches
  • Wireless Access Points

The Taoglas Magnetics Product Team has over fifteen years of LAN magnetics design and high-quality manufacturing. With an ever-expanding portfolio, we provide trusted products and services to customers within a wide range of applications such as: Networking and Interconnect Devices, Servers, Switches, Router, Communication systems and any Digital Consumer electronics.

The Taoglas Exos Series offer an extensive product line of LAN Transformers designed for commercial and industrial grade applications, supporting 10/100 Base-T (Exos100 Series), 1G Base-T (Exos1G Series) and 10G Base-T (Exos10G Series). These products include Single, Dual, and Quad configurations not only for standard applications but also for Power over Ethernet (PoE, PoE+, PoE++).

For more information on the range of products or for assistance with integration, contact your regional Taoglas customer support team.

All Taoglas magnetic products are UL Certified.

Video
Technical Specification
Name Value
Speed 10/100 Base-T
Turns Ratio - Primary Secondary 1CT:1CT
Inductance 350 µH min
Number of Ports 1
PoE rating Non-Poe
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Type SMT/SMD
Length (mm) 13.6
Width (mm) 15.2
Height (mm) 5.7
Weight (g) n/a
