LAN Transformer Dual 1G Base-T PoE

TM5020NLR

Dual 1000 Base-T/1G LAN Transformer.
Dual Port and 50pin SMT with PoE.



Features:

  • PoE
  • Industrial grade
  • AutoMDIX

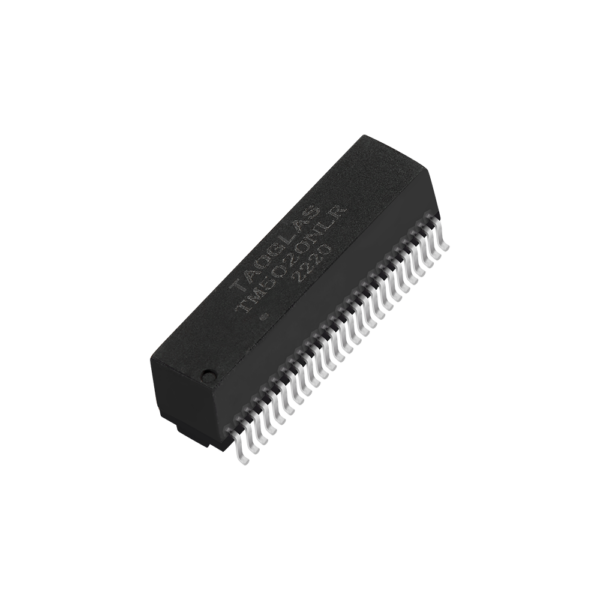

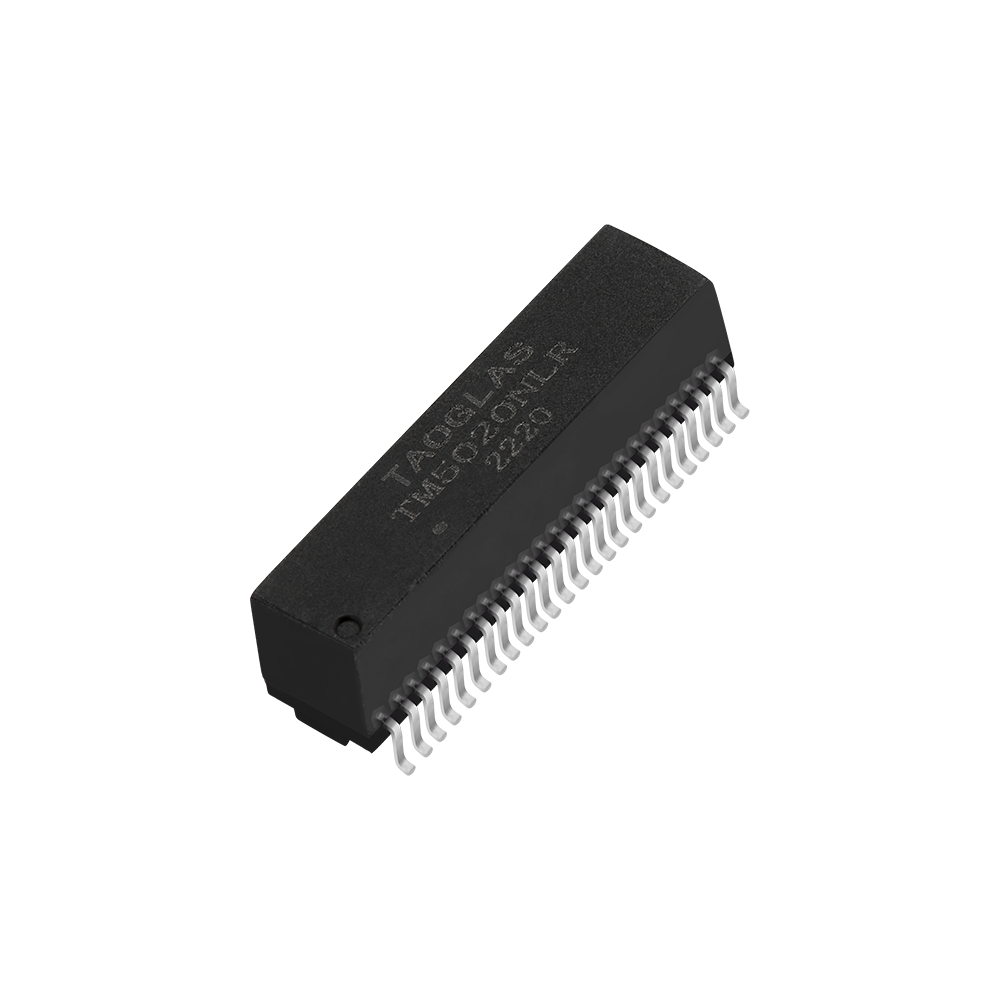

Image TM5020NLR

TM5020NLR

LAN Transformer Dual 1G Base-T PoE

Overview

Dual 1G Base-T LAN Transformers

Featuring PoE capabilities and designed to work in industrial environmental conditions, the Taoglas TM5020NLR is an LAN Transformer Dual 1G Base-T Dual Port of 50pin and capable of AutoMDIX feature.

Typical Applications of Dual 1G Base-T LAN Transformers Include:

  • Industrial Automation
  • Hubs
  • Routers
  • Switches
  • Wireless Access Points

The Taoglas Magnetics Product Team has over fifteen years of LAN magnetics design and high-quality manufacturing. With an ever-expanding portfolio, we provide trusted products and services to customers within a wide range of applications such as: Networking and Interconnect Devices, Servers, Switches, Router, Communication systems and any Digital Consumer electronics.

The Taoglas Exos Series offer an extensive product line of LAN Transformers designed for commercial and industrial grade applications, supporting 10/100 Base-T (Exos100 Series), 1G Base-T (Exos1G Series) and 10G Base-T (Exos10G Series). These products include Single, Dual, and Quad configurations not only for standard applications but also for Power over Ethernet (PoE, PoE+, PoE++).

For more information on the range of products or for assistance with integration, contact your regional Taoglas customer support team.

All Taoglas magnetic products are UL Certified.

Video
Technical Specification
Name Value
Speed Dual 1G Base-T
Turns Ratio - Primary Secondary 1CT:1CT
Inductance 350 µH min
Number of Ports 2
PoE rating PoE (350mA)
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Type SMT/SMD
Length (mm) 27.94
Width (mm) 10.92
Height (mm) 8.66
Weight (g) n/a
