TMJ166323B10NL – RJ45 ICM 10/100 Base-T PoE

RJ45 connector with integrated magnetics 10/100Base-T.
Single Port Tab-UP with right angle THT mount and LEDs.



  • Short Body
  • 3Wire + TransformeR
  • PoE (350 mA)
  • Shielded
  • Board lock
  • Industrial grade

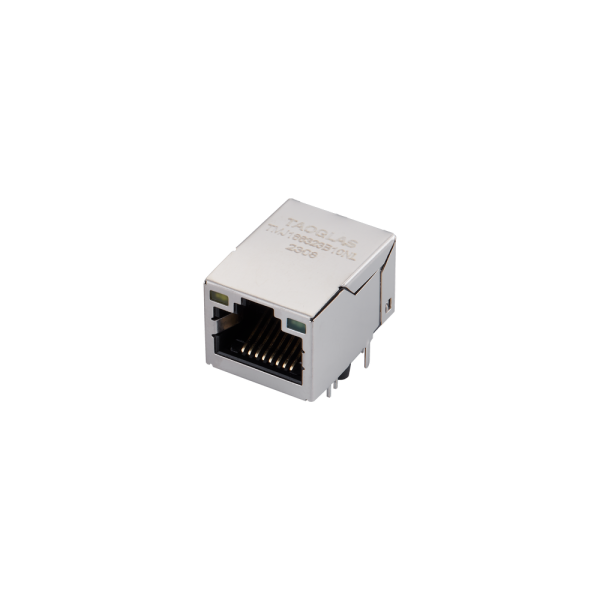

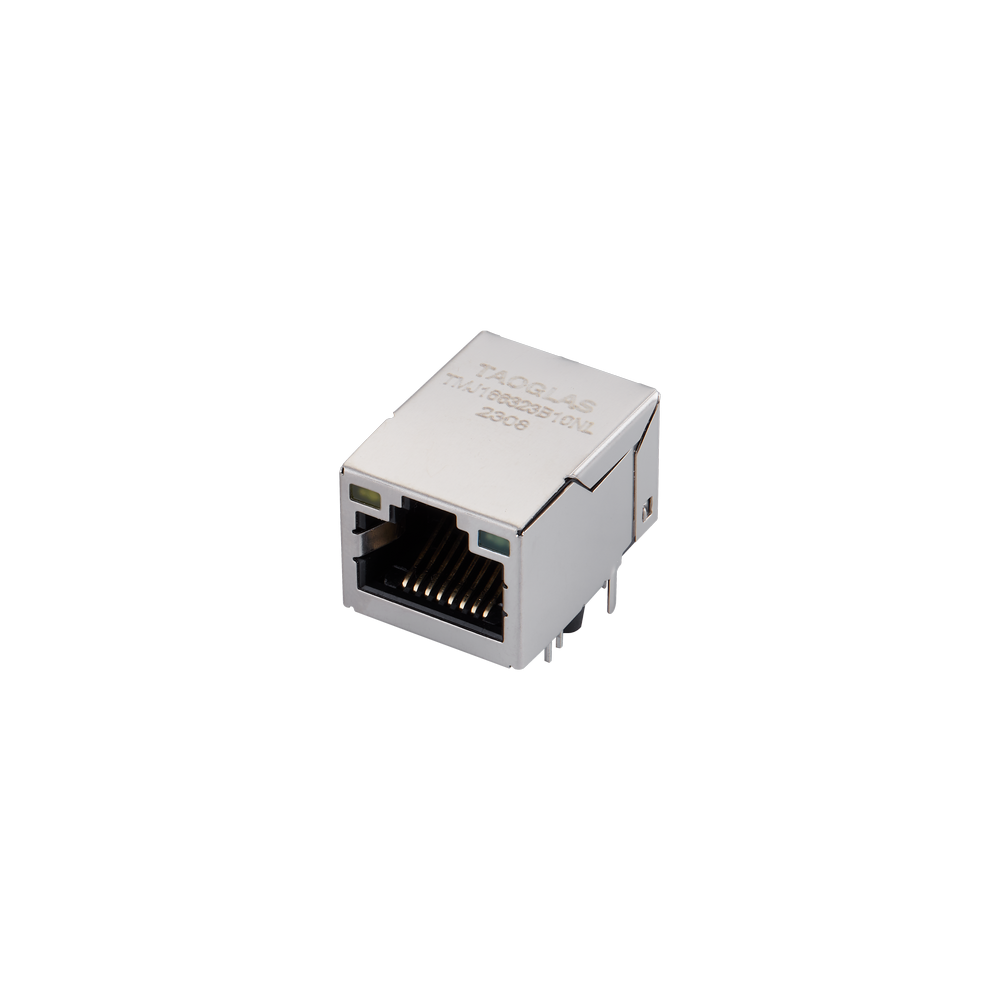

Image TMJ166323B10NL


TMJ166323B10NL – RJ45 ICM 10/100 Base-T PoE


Right Angle (90 Degree) RJ45 Connector with Integrated Magnetics

Featuring a popular footprint and compatible package to industry RJ45 Integrated Connectors standards, the Taoglas TMJ166323B10NL is an RJ45 Integrated Connector 10/100 Base-T Single Port Tab-UP with shielded short body design that offers extra space and with PoE technology of 350mA.

Typical Applications of Right Angle 10/100 Base-T RJ45 Connector with Integrated Magnetics Include:

  • Industrial Automation
  • Hubs
  • Routers
  • Switches
  • Wireless Access Points

Taoglas Magnetics offer an extensive product line of RJ45 Integrated Connectors designed for commercial and industrial grade applications, supporting 10/100 Base-T (Atmos100 Series) and 1G Base-T (Atmos1000 series). These surface mount or through-hole components provide reliable performance and maintain signal integrity that meets IEEE 802.3 standards, and they are UL certified. The Power over Ethernet options are also available including PoE, PoE+ and PoE++.

The majority of Taoglas RJ45 ICMs are manufactured with fully automated winding, assembly & testing to ensure consistent performance, quality and reliability while ensuring cost competitiveness for its customers. These products are fully compliant with the REACH and RoHS directive, and compatible with all major PHY vendors.

For customized products or support with integration, contact your regional Taoglas customer support team for further information.

All Taoglas magnetic products are UL Certified.

Technical Specification
Name Value
Speed 10/100 Base-T
Turns Ratio -
Primary Secondary
Inductance 350µH
Configuration 1x1
Tab Direction Up
PoE rating PoE (350mA)
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Shielding Shielded
Mounting Angle Right Angle
Gold Plating Thickness 30 µ"
Mounting Style THT
Length (mm) 21.25
Width (mm) 15.95
Height (mm) 13.45

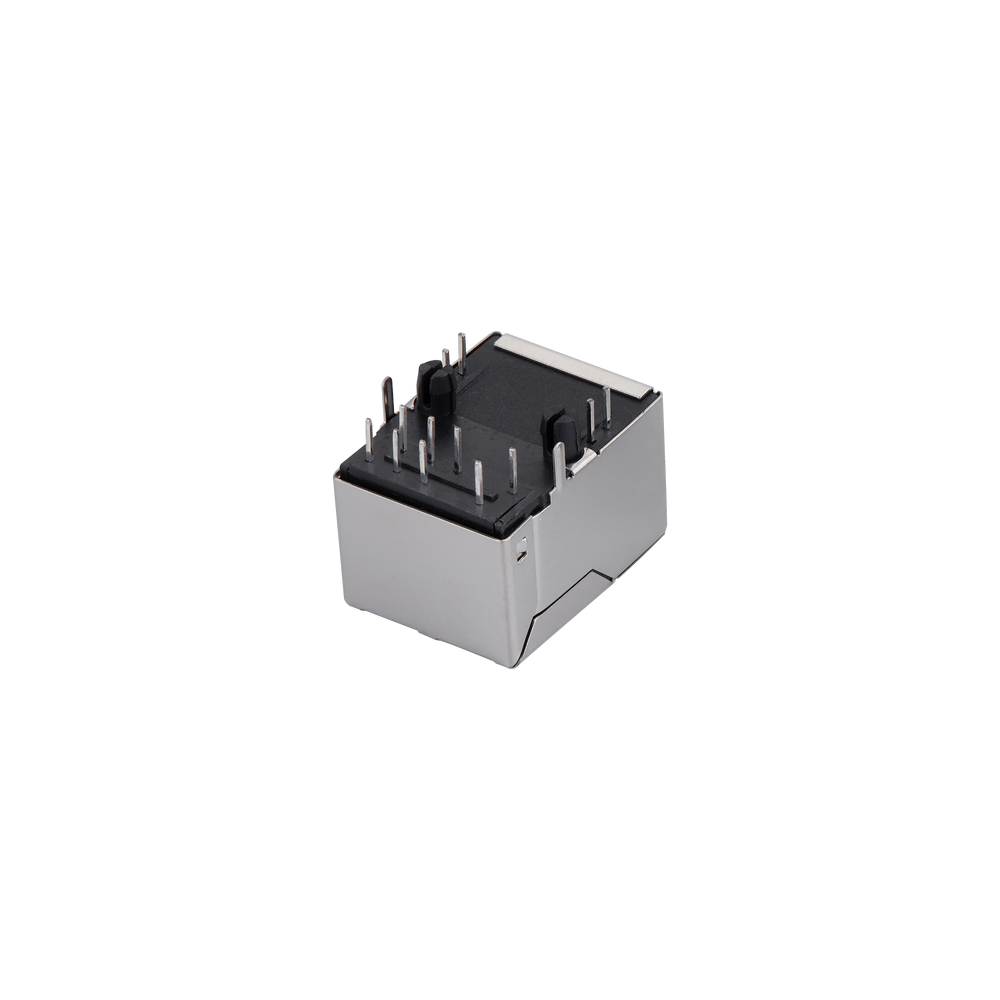

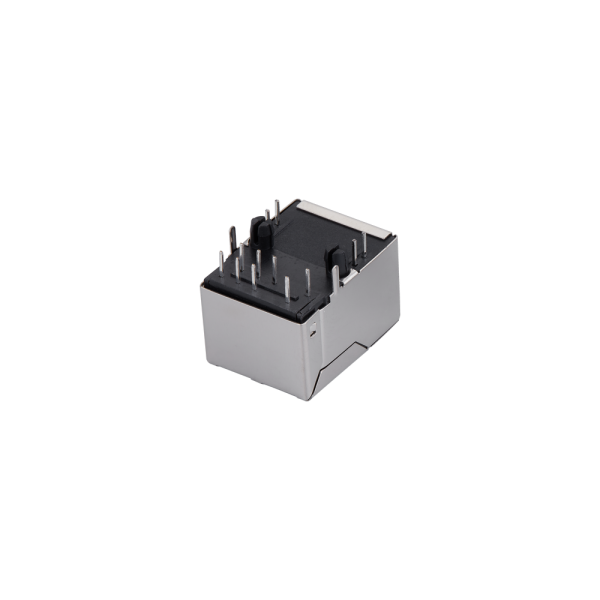

Image TMJ166323B10NL
