RJ45 ICM 1G Base-T Vertical

TMJD4622BDNL
RJ45 connector with integrated magnetics 1G Base-T.
Vertical Single Port with THT mount and LEDs.



Features:

  • Vertical
  • Industrial grade

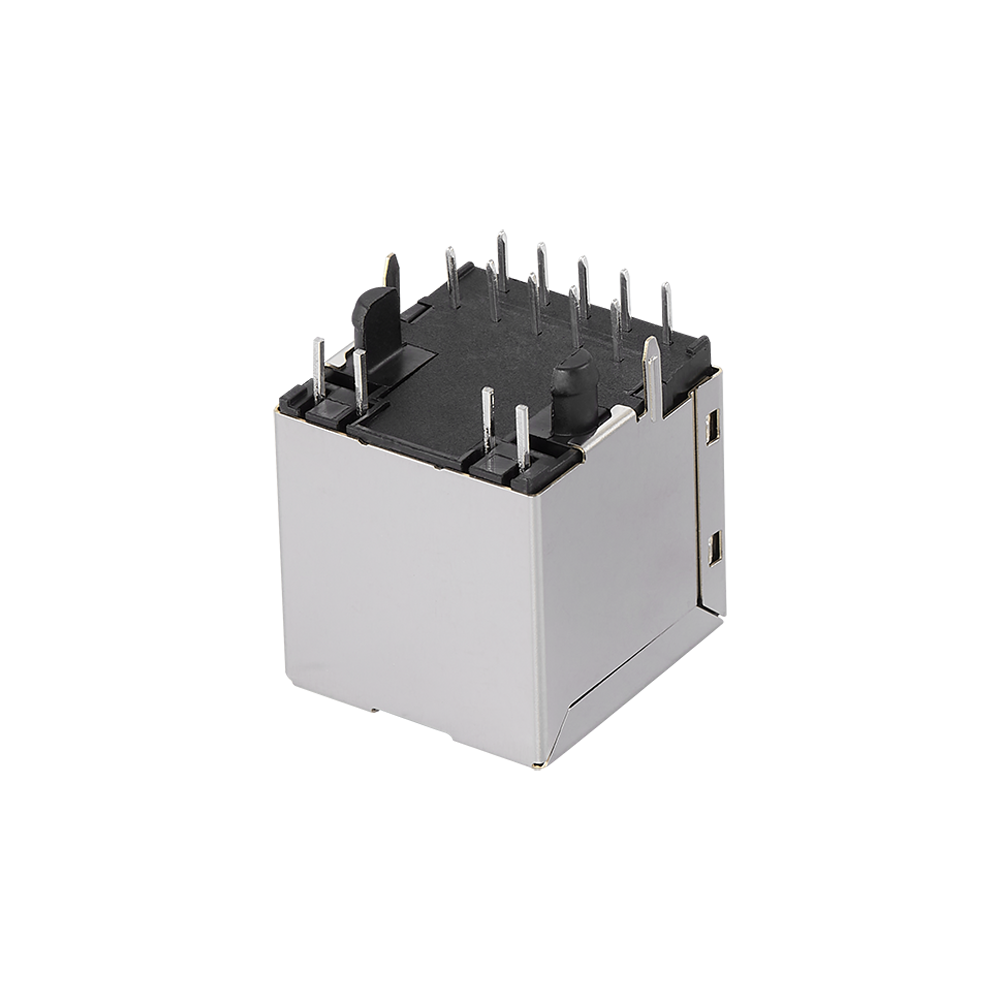

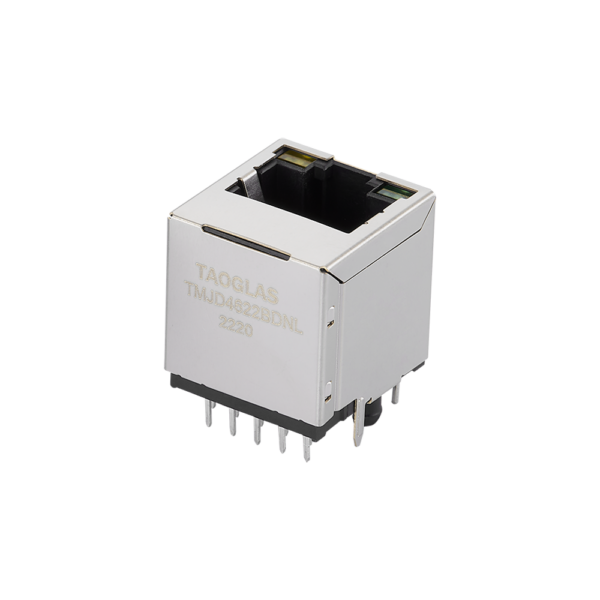

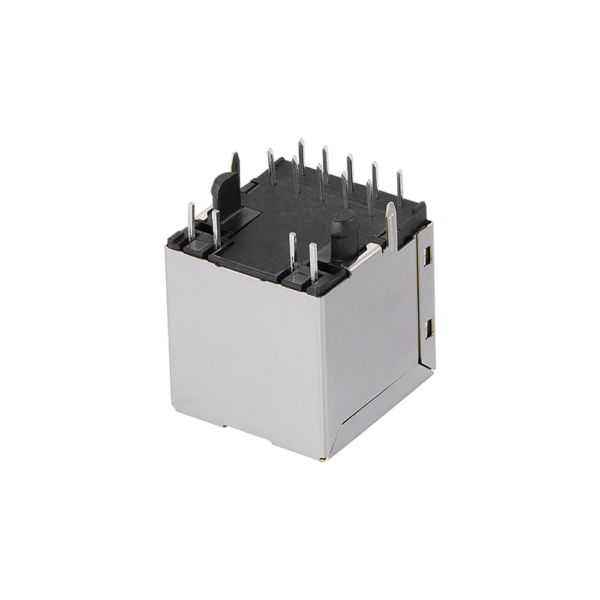

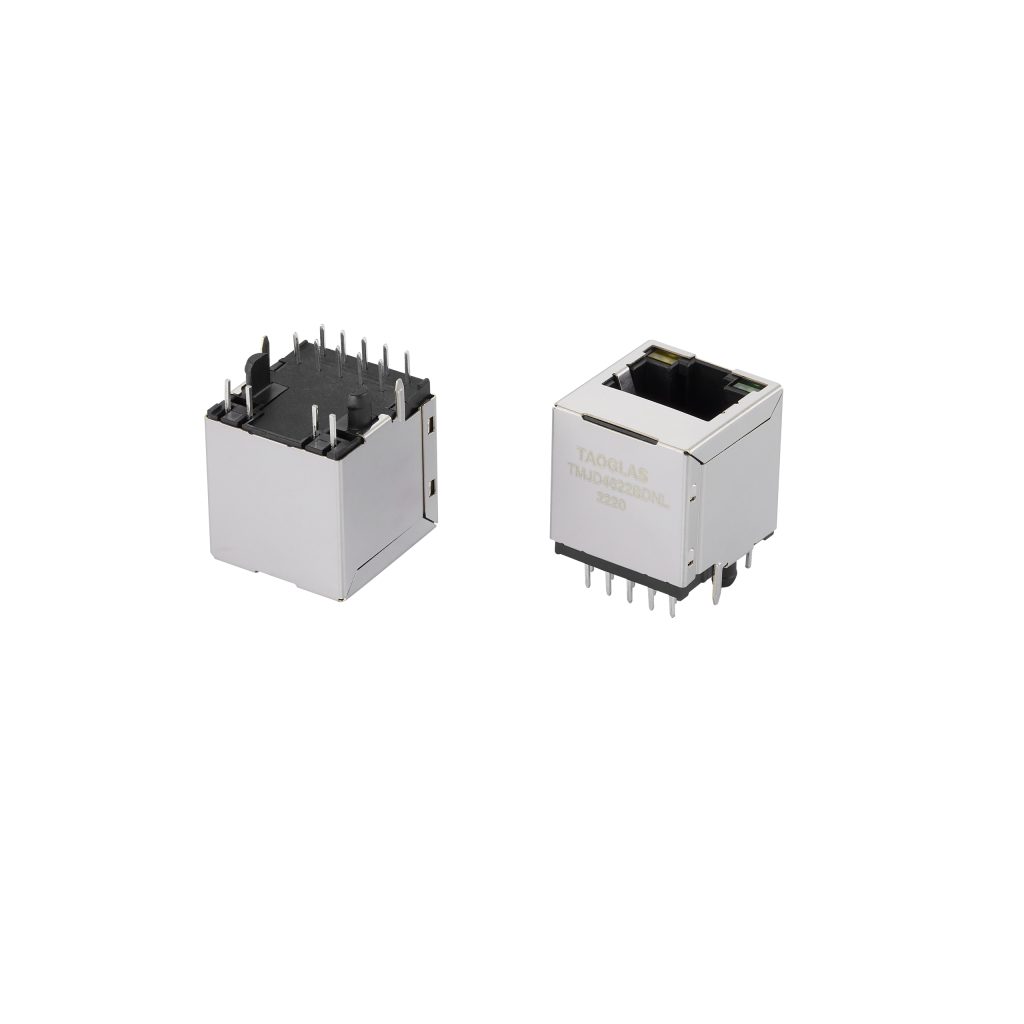

Image TMJD4622BDNL

TMJD4622BDNL

RJ45 ICM 1G Base-T Vertical

Overview

Vertical RJ45 Connector with Integrated Magnetics

Featuring popular footprint and designed to work in industrial environmental conditions, the Taoglas TMJD4622BDNL is an RJ45 Integrated Connector 1G Base-T Single Port Vertical with LED and shielded body.

Typical Applications of Vertical 1G Base-T RJ45 Connectors Include:

  • Industrial Automation
  • Hubs
  • Routers
  • Switches
  • Wireless Access Points

Taoglas Magnetics offer an extensive product line of RJ45 Integrated Connectors designed for commercial and industrial grade applications, supporting 10/100 Base-T (Atmos100 Series) and 1G Base-T (Atmos1000 series). These surface mount or through-hole components provide reliable performance and maintain signal integrity that meets IEEE 802.3 standards, and they are UL certified. The Power over Ethernet options are also available including PoE, PoE+ and PoE++.

The majority of Taoglas RJ45 ICMs are manufactured with fully automated winding, assembly & testing to ensure consistent performance, quality and reliability while ensuring cost competitiveness for its customers. These products are fully compliant with the REACH and RoHS directive, and compatible with all major PHY vendors.

For customized products or support with integration, contact your regional Taoglas customer support team for further information.

All Taoglas magnetic products are UL Certified.

Video
Technical Specification
Name Value
Speed 1G Base-T
Turns Ratio -
Primary Secondary
1CT:1CT
Inductance 350µH
Configuration 1x1
Tab Direction Vertical/User Select
PoE rating Non-Poe
Minimum Operating Temperature -40°C°C
Maximum Operating Temperature 85°C°C
Shielding Shielded
Mounting Angle Vertical
Gold Plating Thickness 6µ"
Mounting Style THT
Length (mm) 16.15
Width (mm) 16.9
Height (mm) 16.7
Weight (g) n/a
