Right Angle (90 Degree) RJ45 Connector with Integrated Magnetics

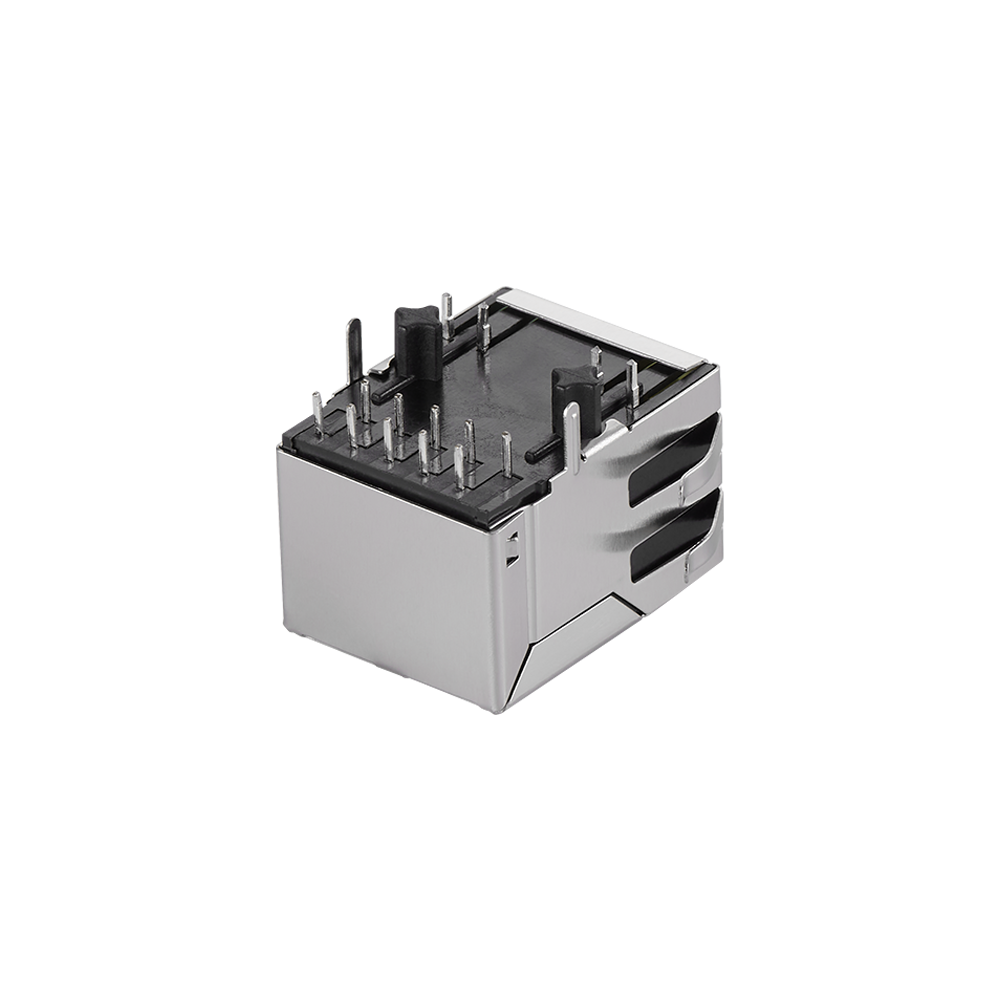

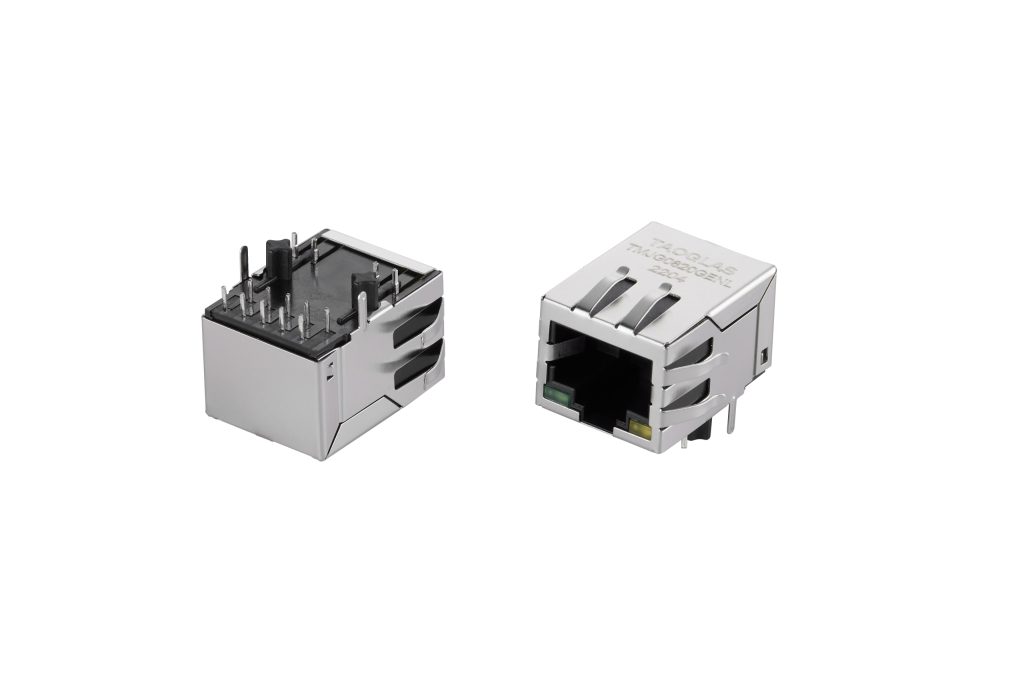

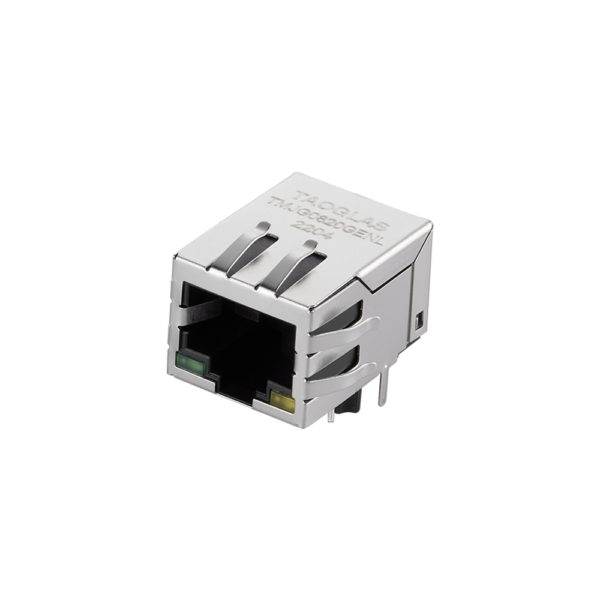

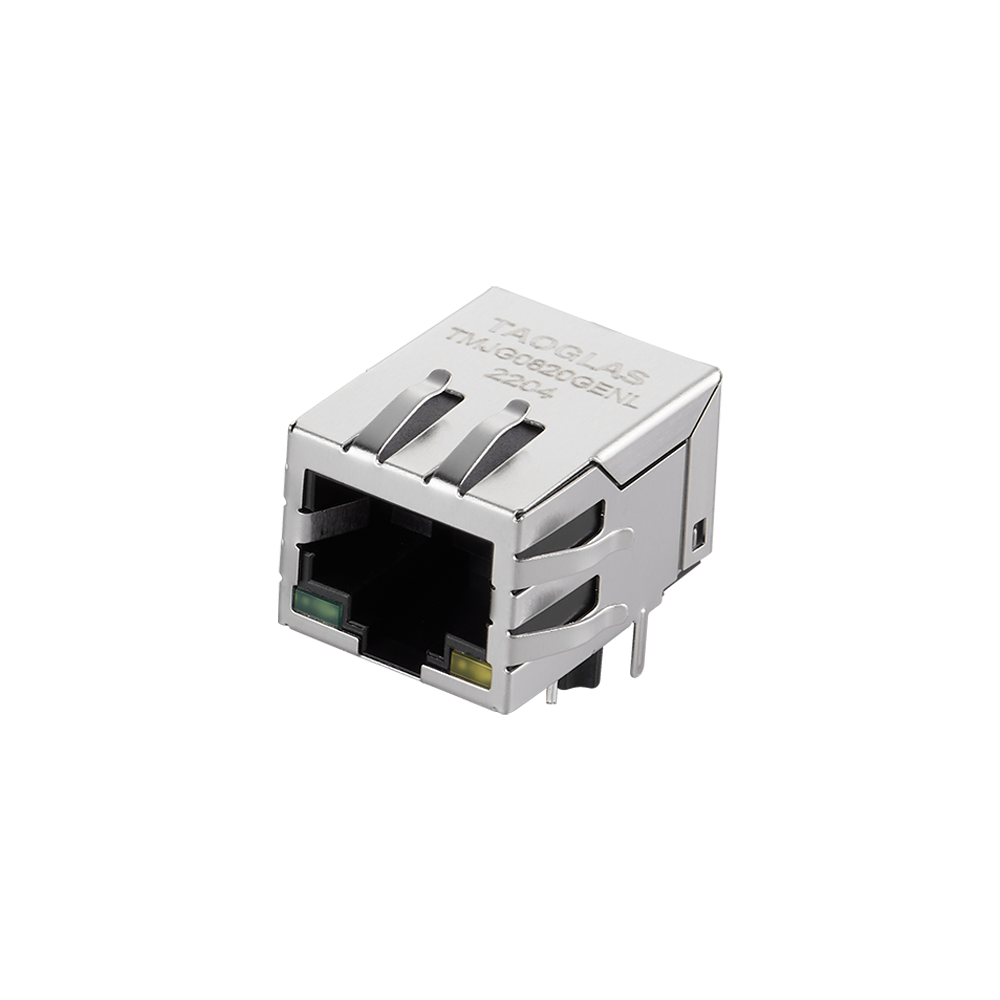

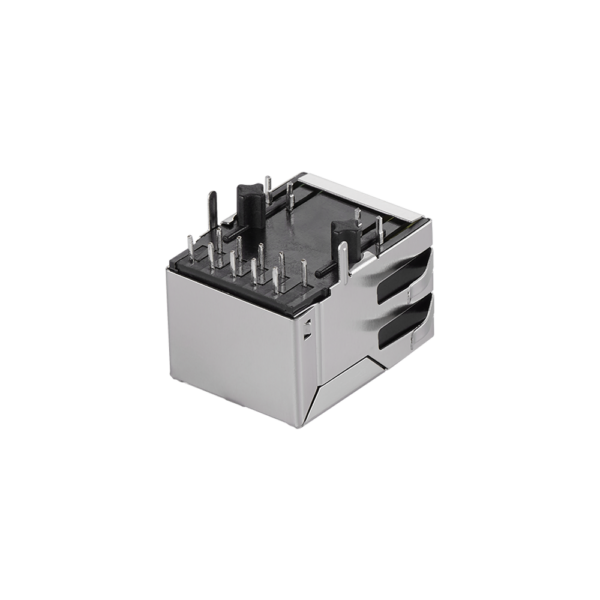

Featuring popular footprint and compatible package with industry RJ45 Integrated Connectors standards, the Taoglas TMJG0820GENL is an RJ45 Integrated Connector 1G Base-T Single Port Tab Down with EMI Finger, its shielded short body design offers extra space, and with a schematic that enables AutoMDIX feature.
Typical Applications of Right Angle 1G Base-T RJ45 Connector with Integrated Magnetics Include:
- Industrial Automation
- Wireless Access Points
Taoglas Magnetics offer an extensive product line of RJ45 Integrated Connectors designed for commercial and industrial grade applications, supporting 10/100 Base-T (Atmos100 Series) and 1G Base-T (Atmos1000 series). These surface mount or through-hole components provide reliable performance and maintain signal integrity that meets IEEE 802.3 standards, and they are UL certified. The Power over Ethernet options are also available including PoE, PoE+ and PoE++.
The majority of Taoglas RJ45 ICMs are manufactured with fully automated winding, assembly & testing to ensure consistent performance, quality and reliability while ensuring cost competitiveness for its customers. These products are fully compliant with the REACH and RoHS directive, and compatible with all major PHY vendors.
For customized products or support with integration, contact your regional Taoglas customer support team for further information.
All Taoglas magnetic products are UL Certified.
