RJ45 ICM 5G Base-T Short Body

TMJUTVW0021192448

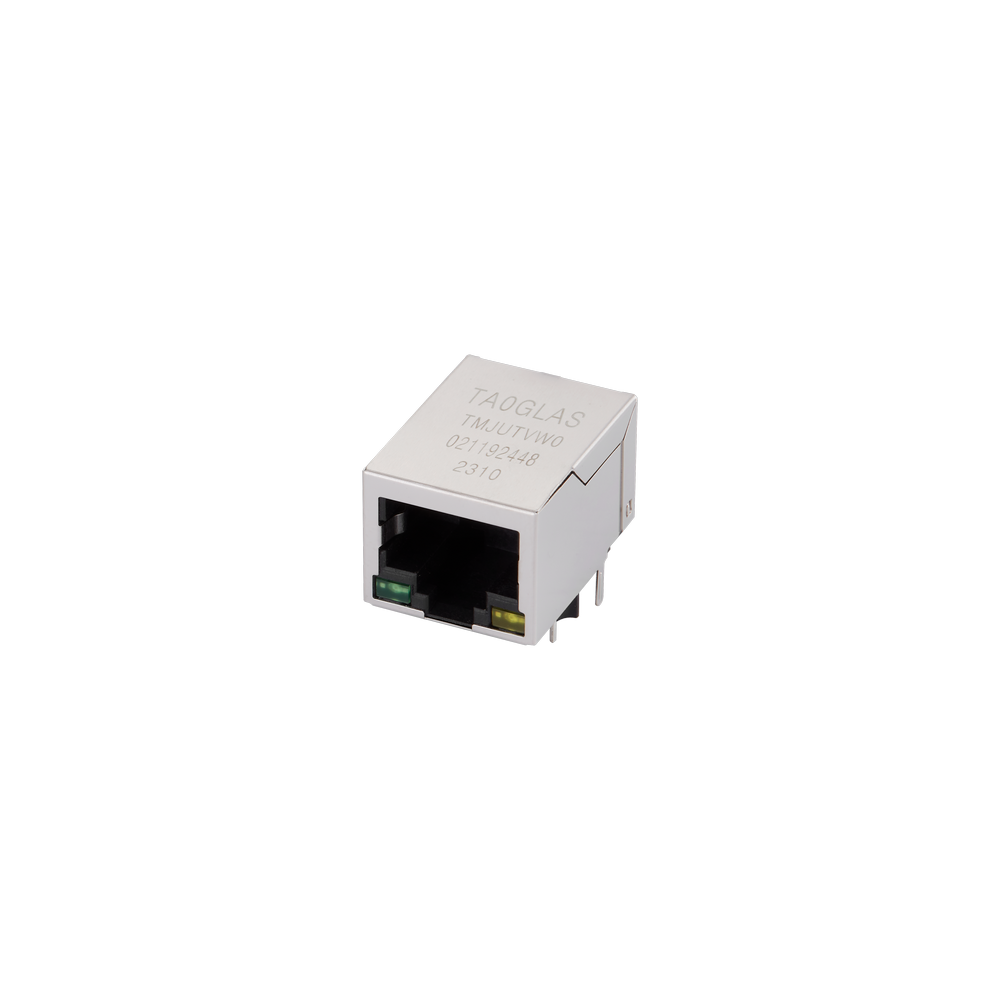

RJ45 connector with integrated magnetics 5G Base-T.
Single Port Tab-DOWN with THT mount and LEDs.



Features:

  • Short Body
  • 3 Wire + Transformer
  • Shielded
  • Board guide
  • Industrial grade
Image TMJUTVW0021192448

TMJUTVW0021192448

RJ45 ICM 5G Base-T Short Body

Overview

Right Angle (90 Degree) RJ45 Connector with Integrated Magnetics

Featuring a popular footprint and compatible package to industry RJ45 Integrated Connectors standards, the Taoglas TMJUTVW0021192448 is an RJ45 Integrated Connector 5G Base-T Single Port Tab-DOWN with shielded short body design that offers capabilities in Industrial environments.

Typical Applications of Right Angle 5G Base-T RJ45 Connectors Include:

  • Industrial Automation
  • Hubs
  • Routers
  • Switches
  • Wireless Access Points

Taoglas Magnetics offer an extensive product line of RJ45 Integrated Connectors designed for commercial and industrial grade applications, supporting 10/100 Base-T (Atmos100 Series) and 1G Base-T (Atmos1000 series). These surface mount or through-hole components provide reliable performance and maintain signal integrity that meets IEEE 802.3 standards, and they are UL certified. The Power over Ethernet options are also available including PoE, PoE+ and PoE++.

The majority of Taoglas RJ45 ICMs are manufactured with fully automated winding, assembly & testing to ensure consistent performance, quality and reliability while ensuring cost competitiveness for its customers. These products are fully compliant with the REACH and RoHS directive, and compatible with all major PHY vendors.

For customized products or support with integration, contact your regional Taoglas customer support team for further information.

All Taoglas magnetic products are UL Certified.

Video
Technical Specification
Name Value
Speed 5G Base-T
Turns Ratio -
Primary Secondary
1CT:1CT
Inductance 350µH
Configuration 1x1
Tab Direction Down
PoE rating Non-PoE
Minimum Operating Temperature -40°C°C
Maximum Operating Temperature 85°C°C
Shielding Shielded
Mounting Angle Right Angle
Gold Plating Thickness 30 µ"
Mounting Style THT
Length (mm) 21.1
Width (mm) 16
Height (mm) 13.45
Weight (g) n/a
