LAN Transformer 2.5G Base-T

TMU24C04

2.5G Base-T LAN Transformer.
Single Port and 24pin SMT.



Features:

  • CMC + Transformer

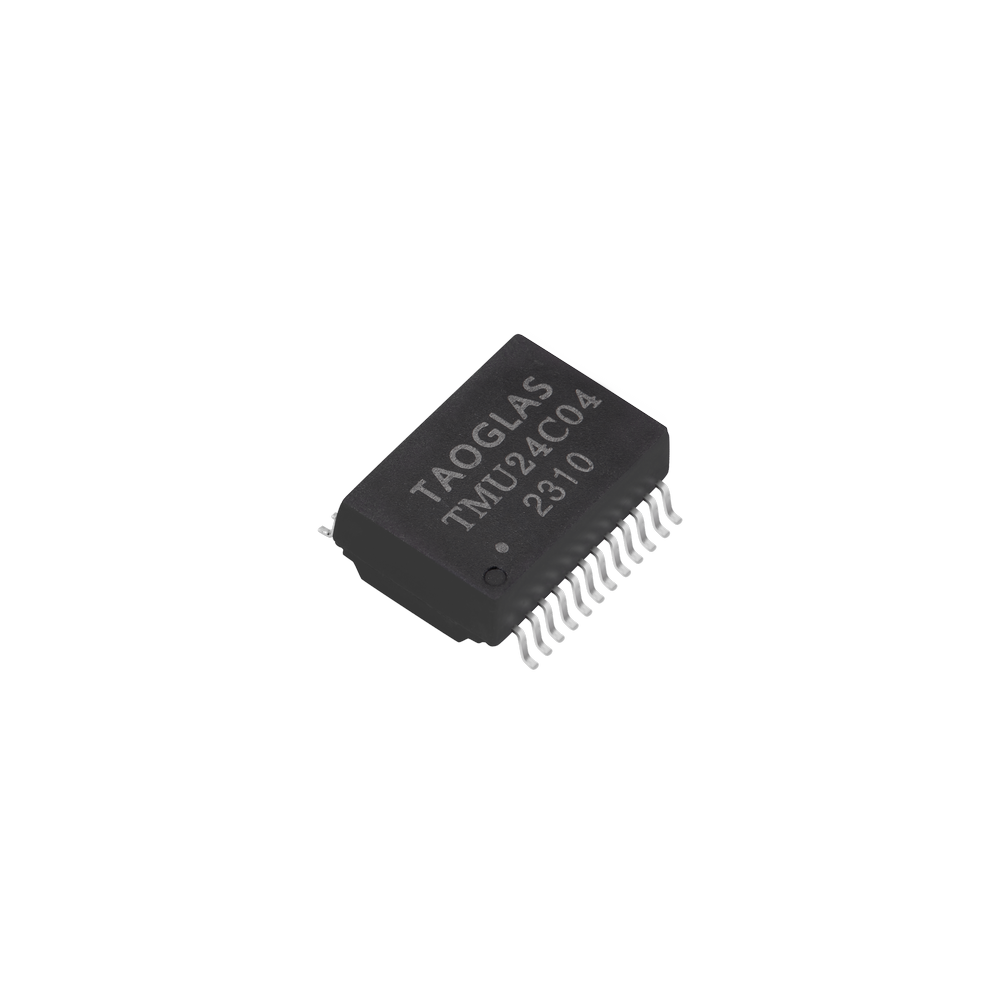

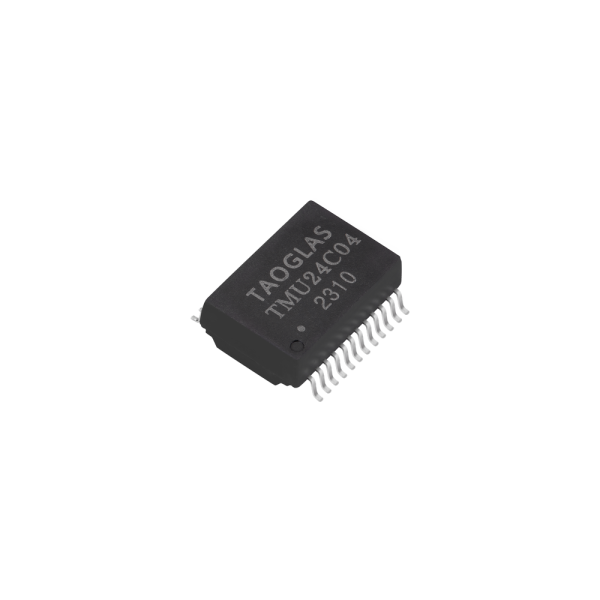

Image TMU24C04

TMU24C04

LAN Transformer 2.5G Base-T

Overview

2.5G Base-T LAN Transformers

Featuring a compatible footprint with industry LAN transformers, and designed to work in demanding industrial environmental conditions, the Taoglas TMU24C04 is a 2.5G Base-T Single Port of 24pin with Common Mode Choke and Transformer.

Typical Applications of 2.5G Base-T LAN Transformers Include:

  • Industrial Automation
  • Hubs
  • Routers
  • Switches
  • Wireless Access Points

The Taoglas Magnetics Product Team has over fifteen years of LAN magnetics design and high-quality manufacturing. With an ever-expanding portfolio, we provide trusted products and services to customers within a wide range of applications such as: Networking and Interconnect Devices, Servers, Switches, Router, Communication systems and any Digital Consumer electronics.

The Taoglas Exos Series offer an extensive product line of LAN Transformers designed for commercial and industrial grade applications, supporting 10/100 Base-T (Exos100 Series), 1G Base-T (Exos1G Series) and 10G Base-T (Exos10G Series). These products include Single, Dual, and Quad configurations not only for standard applications but also for Power over Ethernet (PoE, PoE+, PoE++).

For more information on the range of products or for assistance with integration, contact your regional Taoglas customer support team.

All Taoglas magnetic products are UL Certified.

Video
Technical Specification
Name Value
Speed 2.5G Base-T
Turns Ratio - Primary Secondary 1CT:1CT
Inductance 180 µH min
Number of Ports 1
PoE rating Non-Poe
Minimum Operating Temperature 0°C
Maximum Operating Temperature 70°C
Mounting Type SMT/SMD
Length (mm) 17.6
Width (mm) 16
Height (mm) 6
