LAN Transformer 1G Base-T PoE Ultra

TMU24C14U

1G Base-T LAN Transformer.
Single Port and 24pin SMT.



Features:

  • PoE Ultra (1100mA)
  • 3Wire + Transformer
  • Industrial grade

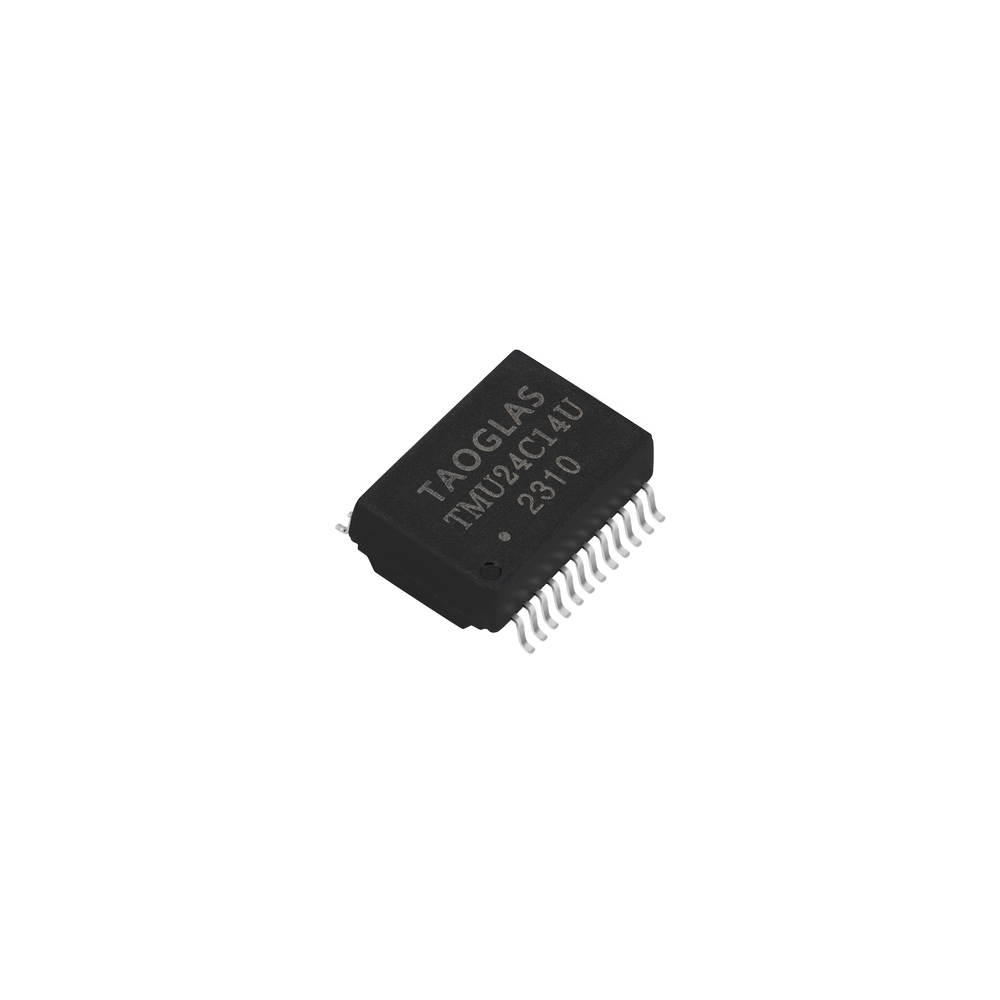

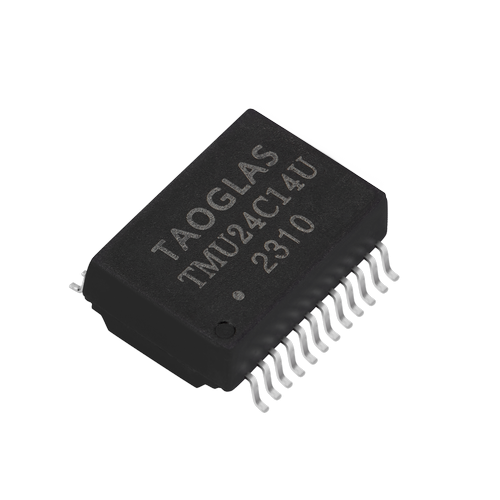

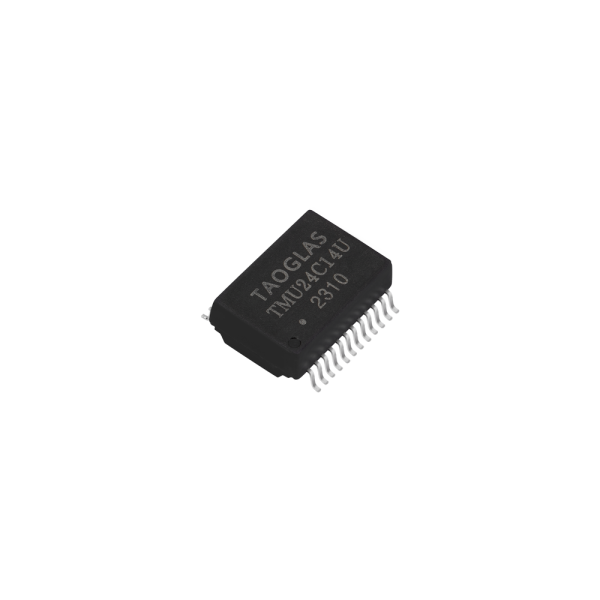

Image TMU24C14U

TMU24C14U

LAN Transformer 1G Base-T PoE Ultra

Overview

1G Base-T LAN transformers

Featuring a compatible footprint with industry LAN transformers, and designed to work in demanding industrial environmental conditions, the Taoglas TMU24C14U is a 1G Base-T Single Port of 24pin with 3Wire and Transformer which makes it suitable for PoE Ultra (1100mA) applications in Industrial environments.

Typical Applications of 1G Base-T LAN transformers Include:

  • Industrial Automation
  • Hubs
  • Routers
  • Switches
  • Wireless Access Points

The Taoglas Magnetics Product Team has over fifteen years of LAN magnetics design and high-quality manufacturing. With an ever-expanding portfolio, we provide trusted products and services to customers within a wide range of applications such as: Networking and Interconnect Devices, Servers, Switches, Router, Communication systems and any Digital Consumer electronics.

The Taoglas Exos Series offer an extensive product line of LAN Transformers designed for commercial and industrial grade applications, supporting 10/100 Base-T (Exos100 Series), 1G Base-T (Exos1G Series) and 10G Base-T (Exos10G Series). These products include Single, Dual, and Quad configurations not only for standard applications but also for Power over Ethernet (PoE, PoE+, PoE++).

For more information on the range of products or for assistance with integration, contact your regional Taoglas customer support team.

All Taoglas magnetic products are UL Certified.

Video
Technical Specification
Name Value
Speed 1G Base-T
Turns Ratio - Primary Secondary 1CT:1CT
Inductance 350 µH min
Number of Ports 1
PoE rating PoE Ultra (1.1A)
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Type SMT/SMD
Length (mm) 17.6
Width (mm) 16
Height (mm) 6
Weight (g) n/a
