Ultima A.30 Permanent Mount GPS/GLONASS/Galileo

A.30.A.301111

Ultima GPS/GLONASS/GALILEO Antenna
Permanent Mount
GPS/GLONASS/GALILEO –Total Gain 27dB at 3.0V
GPS/GLONASS/GALILEO – 3M RG174 – SMA(M)
No Ground Plane Required
Dimensions: 55.23*55.23*19.6mm
Waterproof IP67 Rated

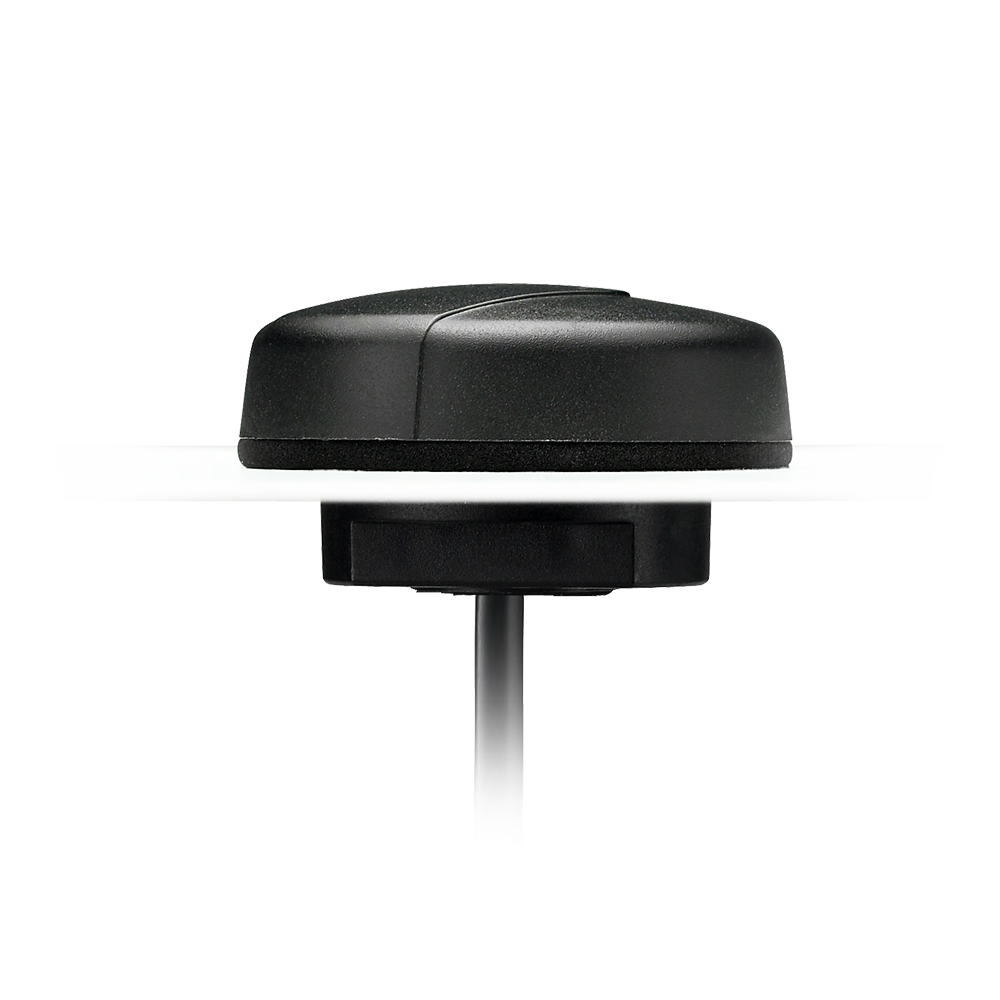

Image A.30.A.301111

A.30.A.301111

Ultima A.30 Permanent Mount GPS/GLONASS/Galileo

Overview
Lowest Profile External Antenna on the Market

The A.30 Ultima Series GPS/GLONASS/GALILEO Antenna is a low profile combination high-performance GPS/GLONASS/GALILEO antenna solution for professional telematics applications. At only 22 mm height it is one of the lowest profile antenna in the market, with a diameter of 55 mm. Durable UV resistant PC housing, thread, and nut withstands vandalism and direct attack. The IP67 waterproof robust plastic body makes it extremely light, economical for shipping and with minimum weight impact on vehicles. This also makes it ideal for use in humid environments such as water pits or marine applications as there are no external metal parts to corrode. The additional IP69K rating means it is suitable to undergo industrial high-pressure water cleaning. The closed-cell foam with double-sided adhesive provides a permanent waterproof seal and can adjust to different curvatures, stopping water from leaking under the antenna into the mounting hole.

Technical Specification
Name Value
Antenna Type External Antennas, GNSS
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 1575.42-1610MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain 3.99
GNSS Bands Active Single Band
Length (mm) 55.4
Width (mm) 55.4
Height (mm) 20.6
Weight (g) 89
