Ultima MA111 2in1 GPS/GLONASS/GALILEO & 3G/2G Permanent Mount Antenna, 3M RG-174 Ø55*20mm

MA111.C.LB.001

Ultima Permanent Mount GPS/GLONASS/GALILEO and Cellular
GPS/GLONASS/Galileo –Total Gain 27dB at 3.0V
Cellular Peak Gain 2dBi
GPS/GLONASS/Galileo – 3m RG174 – SMA(M)
Cellular – 3m CFD200 – SMA(M)
Dimensions: 55*55*20mm
Waterproof IP67 Rated
RoHS and REACH Compliant

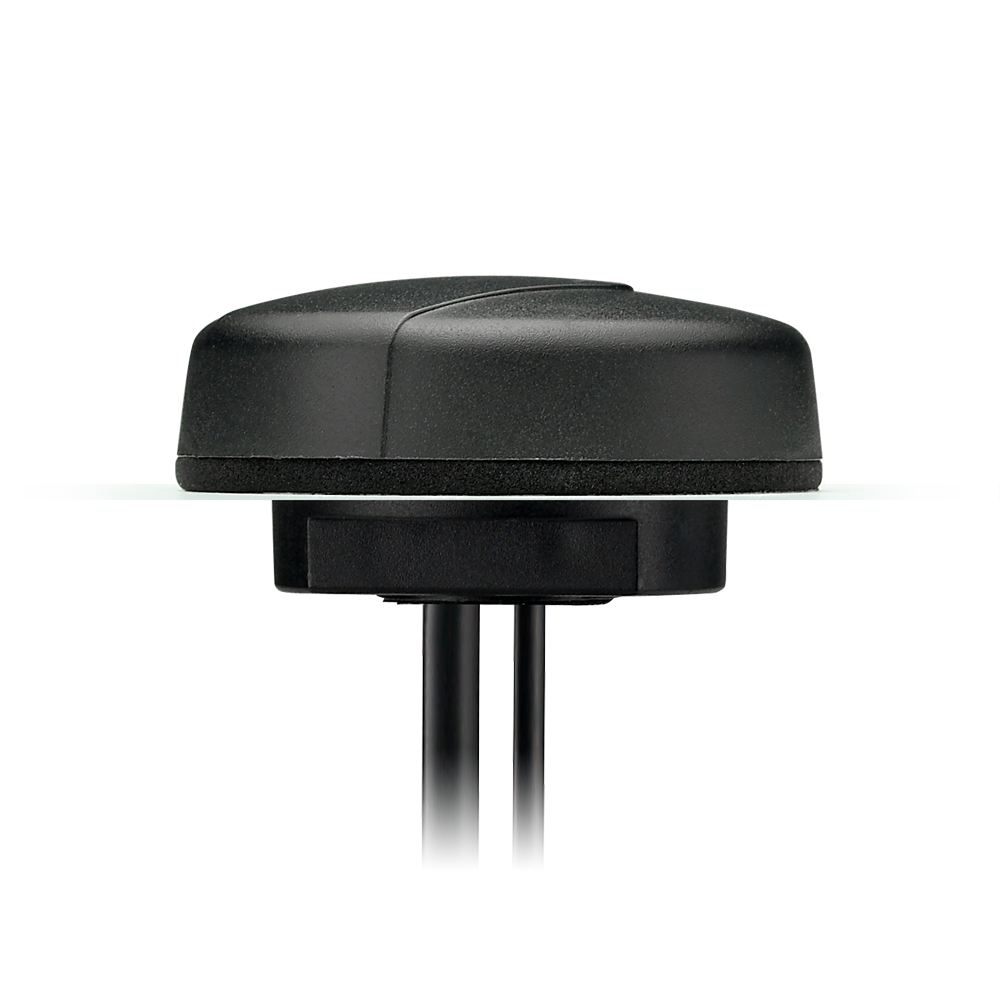

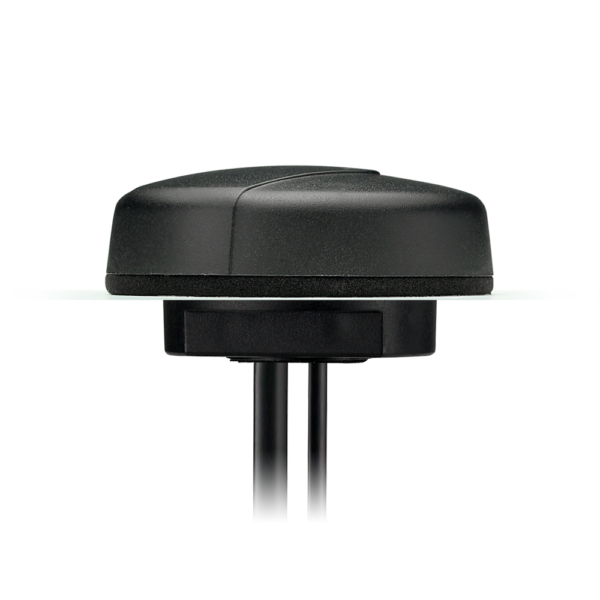

Image MA111.C.LB.001

MA111.C.LB.001

Ultima MA111 2in1 GPS/GLONASS/GALILEO & 3G/2G Permanent Mount Antenna, 3M RG-174 Ø55*20mm

Overview

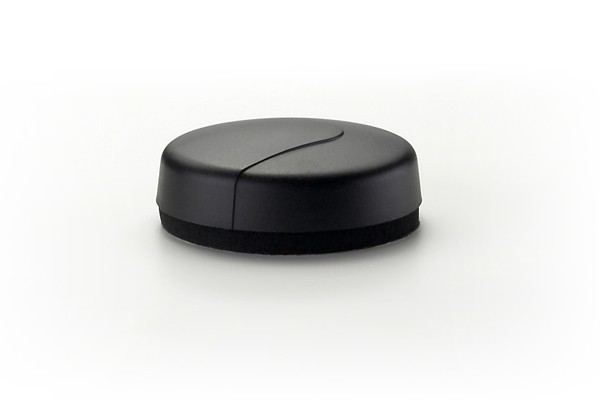

The MA.111 Ultima Series 2in1 GPS/GLONASS/GALILEO & Cellular Combination Antenna is an extremely low profile combination high-performance GPS/GLONASS/GALILEO and pentaband cellular antenna solution for professional telematics applications. At only 22 mm height it is the lowest profile antenna in the market, with a diameter of 55 mm.

It is designed to be mounted and coupled to the metal structures it attaches to radiate. Durable UV ABS housing, thread and nut is resistant to vandalism and direct attack. The IP67 waterproof robust plastic body makes it extremely light, economical for shipping and minimum weight impact on vehicles. This also makes it ideal for use in humid environments such as water pits or marine applications as there are no external metal parts to corrode. The closed-cell foam with double-sided adhesive provides a permanent waterproof seal and can adjust to different curvatures, stopping water from leaking under the antenna into the mounting hole.

For applications that require mounting on non-metal structures, we recommend the Hercules MA.105. The cables and connectors are fully customizable, contact your regional Taoglas Sales Office for more information.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 824 - 2170MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 5.7
Length (mm) 55
Width (mm) 55
Height (mm) 20
Weight (g) 210
