Wide-Band LTE/Cellular/CDMA SMD Antenna
LTE / GSM / CDMA / DCS / PCS / WCDMA / UMTS / HSDPA / GPRS / EDGE
698-960MHz, 1400-2700MHz
High Efficiency Wide-Band SMD Antenna
Dims: 40 x 6 x 5mm
First Tier Automotive TS16949 Approved
Samurai PA.700J 4G/3G/2G SMD PIFA Antenna
PA.700.J
PA.700.J
Samurai PA.700J 4G/3G/2G SMD PIFA Antenna
Overview

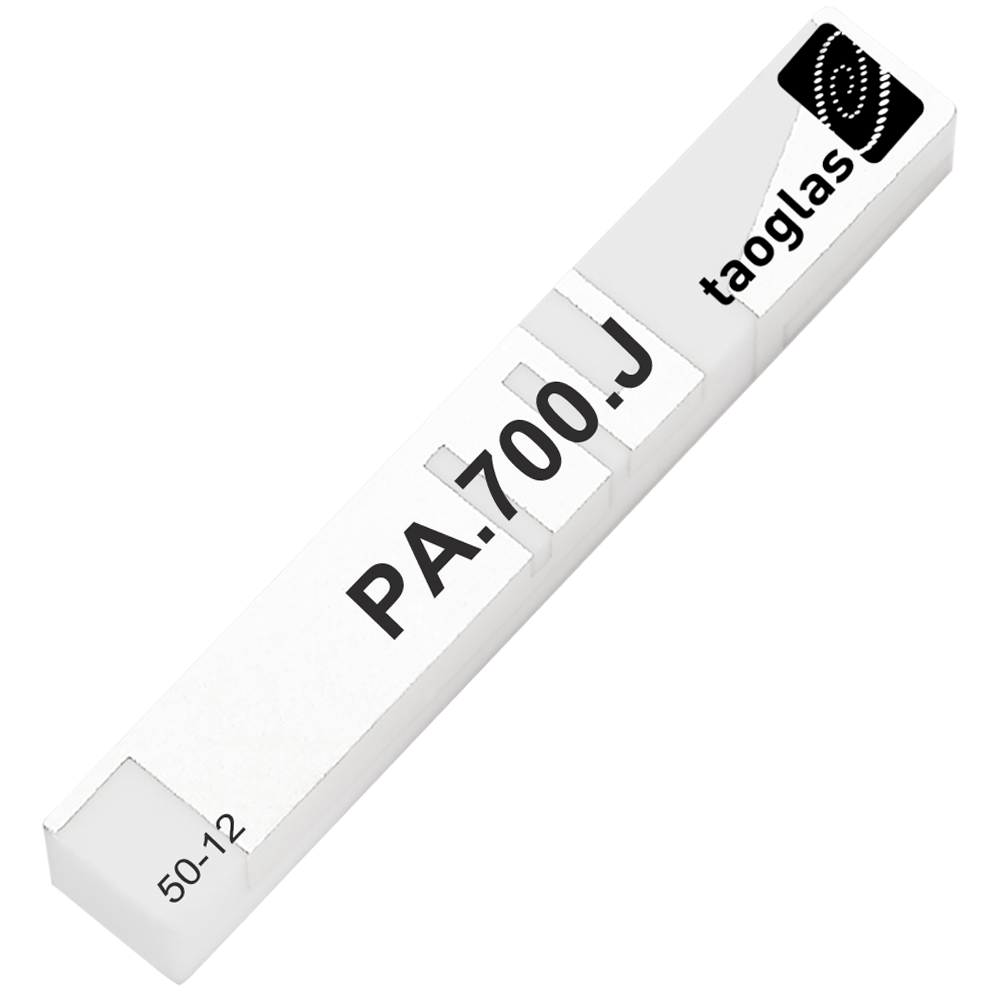

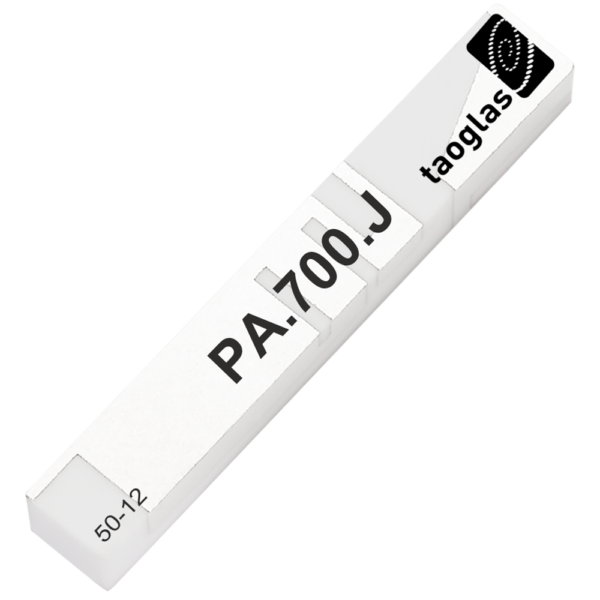

This revolutionary patent-pending Samurai PA.700.J is a 4G/3G/2G high-efficiency SMD ceramic antenna operating at 700MHz to 960MHz, 1400MHz to 2600MHz to cover all LTE frequency bands applied in Japan. It uses high-grade ceramics to deliver the highest efficiencies on all bands on the shortest device ground-plane lengths possible. The exceptional wide-band response means it covers all standardly used operation bands around the globe.
Technical Specification
| Name | Value |
|---|---|
| Technology | Embedded Antennas, Cellular |
| Mechanical Style | PCB |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | SMD/SMT |
| Termination Style | SMD/SMT |
| Antenna Connector Type | N/A |
| Length (mm) | 40 |
| Width (mm) | 6 |
| Height (mm) | 5 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 698MHz - 2700MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | None |
| VSWR | 2:1 |
| Weight (g) | 3 |
| RoHS | Yes |
| Gain (Max) | -1 |
