Barracuda OMB.868.B08F21 868MHz 8dBi Omnidirectional Outdoor Antenna

OMB.868.B08F21

Omni-Directional Radiation
Collinear
ISM 868 MHz Band
8dBi Peak gain
Robust design for all-weather operation
IP65 waterproof
1474mm in length, 720g in weight
N type Female connector
Wall/Pole mount bracket included
RoHS compliant

Image OMB.868.B08F21

OMB.868.B08F21

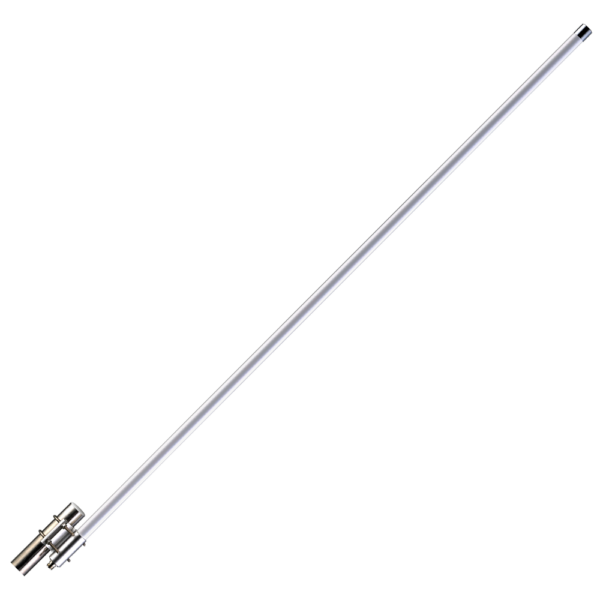

Barracuda OMB.868.B08F21 868MHz 8dBi Omnidirectional Outdoor Antenna

Overview
Outdoor Antenna for LoRa Basestations

The OMB.868.B08F21 is a fiberglass omnidirectional outdoor antenna, operating in the MHz ISM band. Is an ideal outdoor antenna for LoRa Basestations. The antenna has an 8dBi high peak gain, providing the largest area for Low Power Radio (UNB Sigfox, LPRN, LoRA) and mesh networks. applications are in IoT, metering, industrial/environmental monitoring, and asset monitoring. OMB.868 operates at 868MHz, one of the most widely used license-free ISM bands, an 8dBi peak gain. The omnidirectional antenna collinear dipole design means it uniformly in the azimuth with a high gain, providing coverage over long distances, thus minimizing the number of cells or nodes needed in a network.

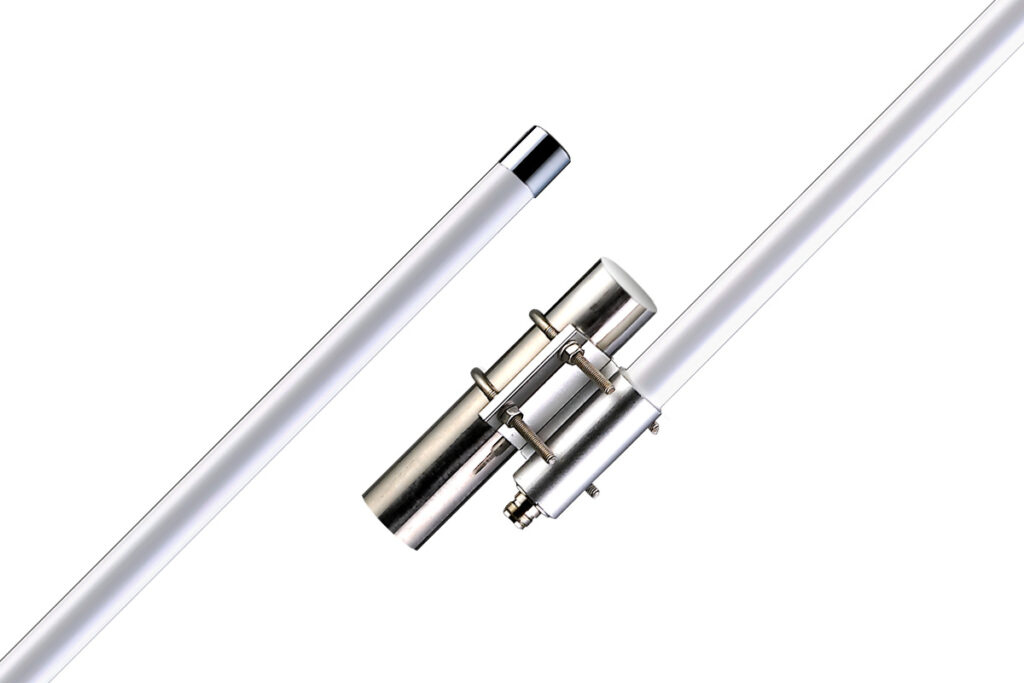

The UV resistant fiberglass housing enables the OMB antenna to be weathered in all harsh environments, making it more robust and safer than the traditional whip. It has been designed to withstand high wind load. The integrated aluminum bracket is perfect for directly mounting the antenna onto a pole or a wall. The connector is the industry standard N-type female. The connector can be customized to MOQ. Other frequencies and gains are available. Contact Taoglas regional office for more details.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall/Pole
Termination Style Connector
Antenna Connector Type N Type
Connector Body Style Straight
Polarity Vertical
Frequency Range 860-880MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Tube, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 3.5
Length (mm) 26
Width (mm) 26
Height (mm) 1474.16
Weight (g) 720
