ISPC.86A 868MHz 5dBi Ceramic Patch Antenna, 92mm RG-178 49.5*49.5*7.5mm

ISPC.86A.09.0092E

5dBi ISM Band 868MHz Embedded Ceramic Patch Antenna with Cable and Connector
865MHz to 870MHz ISM band
5dBi Peak Gain (30*30cm Ground Plane)
92mm RG-178 Coaxial Cable – MMCX(M)RA Connector
Dims: 49.5*49.5*7.5mm

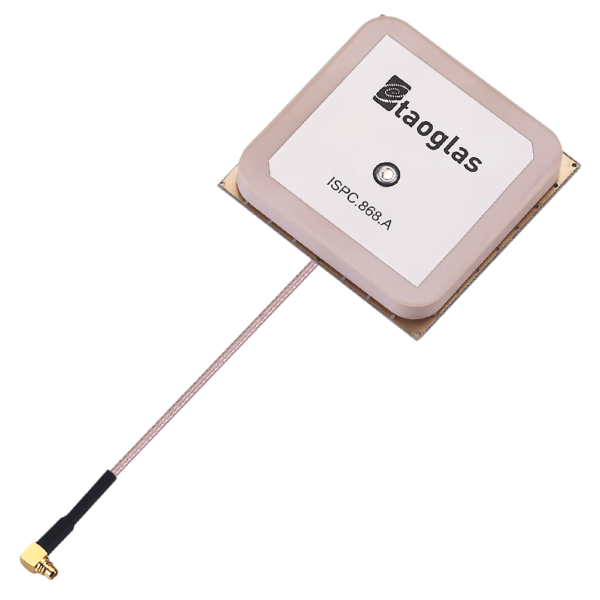

Image ISPC.86A.09.0092E

ISPC.86A.09.0092E

ISPC.86A 868MHz 5dBi Ceramic Patch Antenna, 92mm RG-178 49.5*49.5*7.5mm

Overview
Automotive Antenna for LoRa and Sigfox

The 5dBi ISPC.86A an automotive antenna for LoRa and Sigfox. It is designed primarily for compact fixed wireless applications in Europe for the 865MHz to 870MHz frequency range where extra coverage range is required. The antenna functions best when the backside is placed on a metal panel. When placed on a reference 30cm square ground-plane, the antenna has an excellent directional hemispherical radiation pattern up to 5dBi on the zenith and an efficiency of 65%. Even without a ground-plane underneath the antenna achieves 1dBi and efficiency of 40~50%, with an omnidirectional pattern. This ceramic patch antenna with RG178 and MMCX male right angle connector is a great solution for the following typical applications:

  • RFID Readers
  • Short range 868MHz mesh networks
  • Automotive ISM Applications

Cable type, length, and connector can be customized. Mechanical customization can also be done for a minimum order quantity.

Please contact your regional Taoglas office for more details.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, ISM/LoRA
Mechanical Style Patch
Gain (Max) 1
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Pin/adhesive
Termination Style Connector
Antenna Connector Type MMCX-RA
Cable Type RG-178
Connector Body Style Straight
Polarity Linear
Frequency Range 865MHz - 870MHz
Connector Polarity Normal
Cable Length (mm) 92
Packaging Reel
VSWR 0
Length (mm) 49.5
Width (mm) 49.5
Height (mm) 7.5
Weight (g) 50
