PC104R Wideband Cellular FR4 PCB Antenna with Diagnostic Resistor, 165mm Ø1.37

PC104R.A.07.0165C

Covering 700-6000Mhz bands
High Efficiency – even at long cable lengths
164.9mm Φ1.37 coaxial cable with IPEX connector
Dims: 80mm*20.8mm*1mm
Low profile
AntD© Shunt 10k Ohm Chip Resistor Inside
With 3M adhesive
RoHS compliant

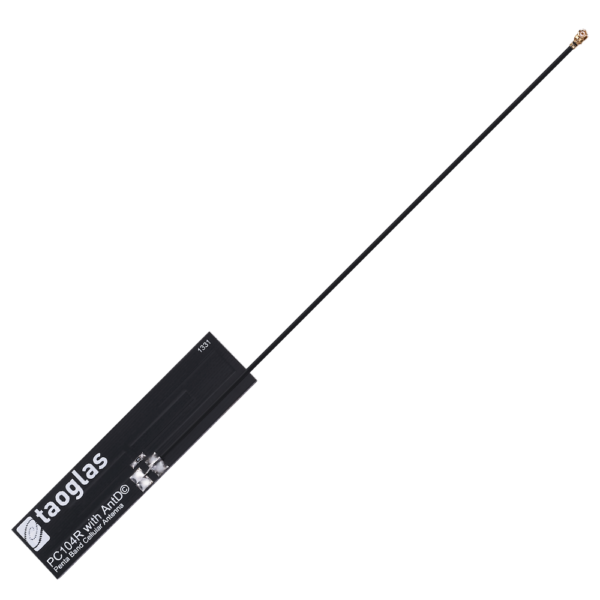

Image PC104R.A.07.0165C

PC104R.A.07.0165C

PC104R Wideband Cellular FR4 PCB Antenna with Diagnostic Resistor, 165mm Ø1.37

Overview

The high efficiency embedded PC104R Penta-band PCB Antenna with AntD© Resistor slim-line design allows for convenient installation inside the customer device. Omni-directional gain across all bands ensures constant reception and transmission. With its unique dipole design, the PC104R has exceptional industry performance characteristics considering its very low profile at 2.4mm and has a compact size 80mm*20mm. It is suitable for clients that appreciate the highest performance at a lower price. This antenna has 3M adhesive on the back, and is tuned and designed to be mounted on 2mm thickness plastic (not on metal).

Cable lengths and connectors are fully customizable and the antenna is suitable for long cable lengths out to 2 meters. For good efficiency performance, the shortest cable length should however not be less than 100mm, for requirements with shorter cable lengths the alternative product the FXP.14 can be used. AntD© allows connected radio products designed using the latest cellular modules from companies such as Telit and uBlox to perform diagnostics on the antenna. This includes detection that the proper antenna is connected and that the connection isn’t shorted or broken.

Contact Taoglas engineering for examples on how to implement AntD© antenna diagnostics in your product.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, Cellular
Mechanical Style PCB
Gain (Max) 2.13
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type I-PEX MHFI (U.FL)
Cable Type RG-316
Connector Body Style Straight
Polarity Linear
Frequency Range 824 - 2170MHz
Connector Polarity Normal
Cable Length (mm) 165
Packaging Carton
VSWR 0
Length (mm) 80
Width (mm) 20.8
Height (mm) 1
Weight (g) 10
