SPKM.2030.8.A – 20 x 30 mm Miniature Speaker 8 Ohm

SPKM.2030.8.A

8 Ohm Impedance
Rated Input Power 800mW RMS
Max Input Power 1W peak
Sensitivity 93 dB 0.5W @ 0.1m
Dimensions: 20 x 30 x 3.8mm
Connector: Wire Lead
RoHS & Reach Compliant

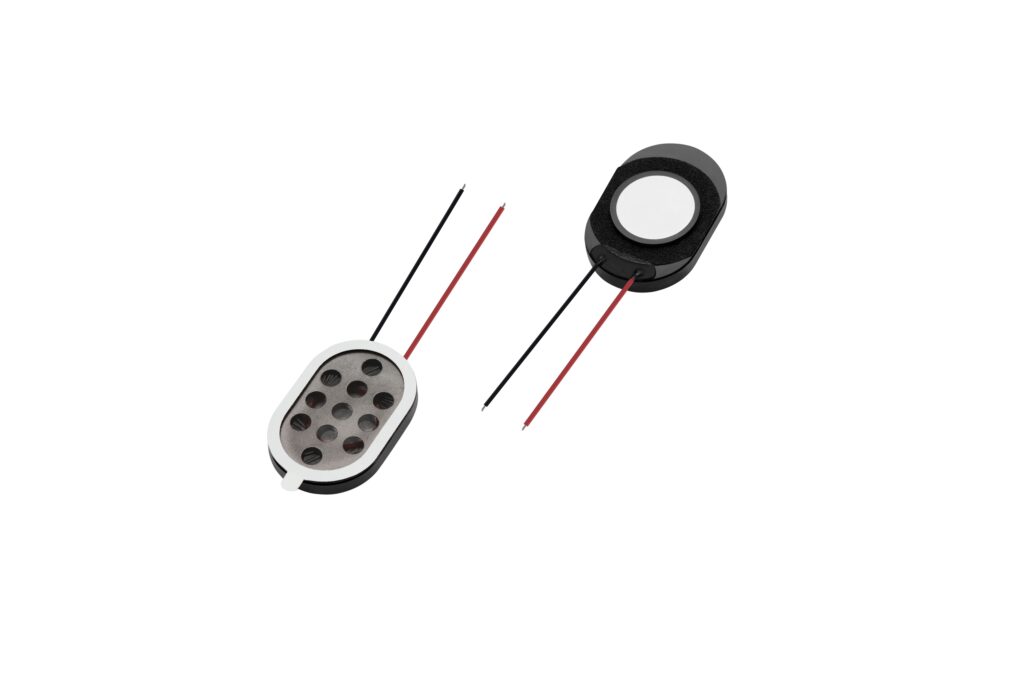

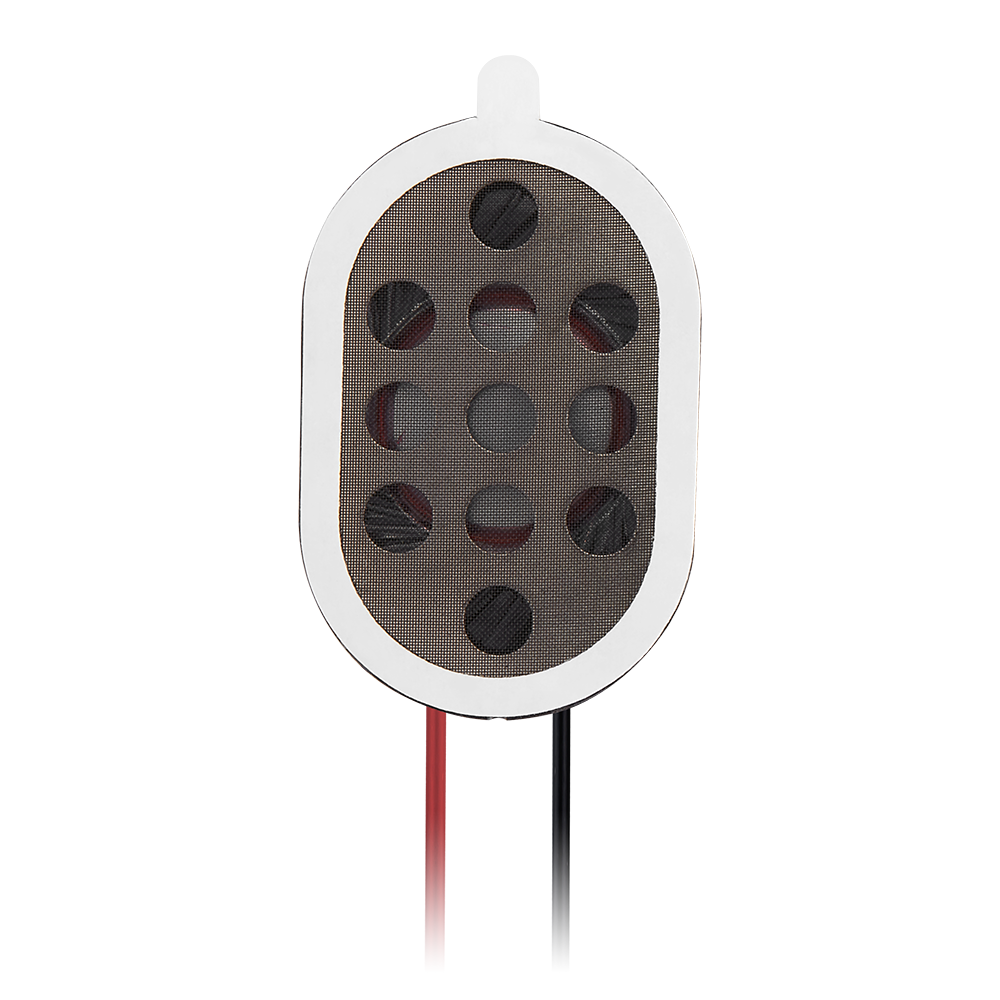

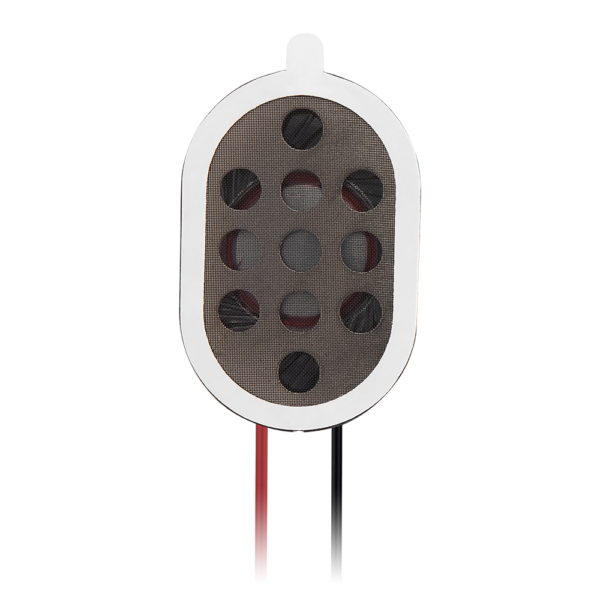

Image SPKM.2030.8.A

SPKM.2030.8.A

SPKM.2030.8.A – 20 x 30 mm Miniature Speaker 8 Ohm

Overview

20 x 30 mm Miniature Speaker 8 Ohm

Taoglas added miniature speakers to our product portfolio to provide both reliable connectivity and high-quality audio solutions from one trusted company. Featuring a compact design, enabling ease of integration in a wide range of electronics products, including IoT devices, with high levels of long-term reliability and best in class performance Taoglas products are known for. Our 20 x 30 mm Miniature Speaker offers a frequency response of 100 Hz – 10 kHz and high sensitivity, with 8 Ohm impedance and power handling of 0.5W RMS and 1W peak. They provide proven performance in demanding applications such as security alarm systems and IoT devices where the accurate reproduction of voice communications is required.

Contact your regional Taoglas customer service team for more information or to discuss our audio services or for customized solutions to suit your device.

Technical Specification
Name Value
Power - Rated 800mW
Power - Max 1W
Impedance 8
Sensitivity 93 dB Continuous @ 0.1 m
Length (mm) 30
Width (mm) 20
Height (mm) 5.1
Weight (g) n/a
