Dimension: 37.8*40.4*10mm
3.0M RG-174 SMA(M)
IP67 Rated
Custom cables and connectors available
RoHS and REACH Compliant & CE Certified

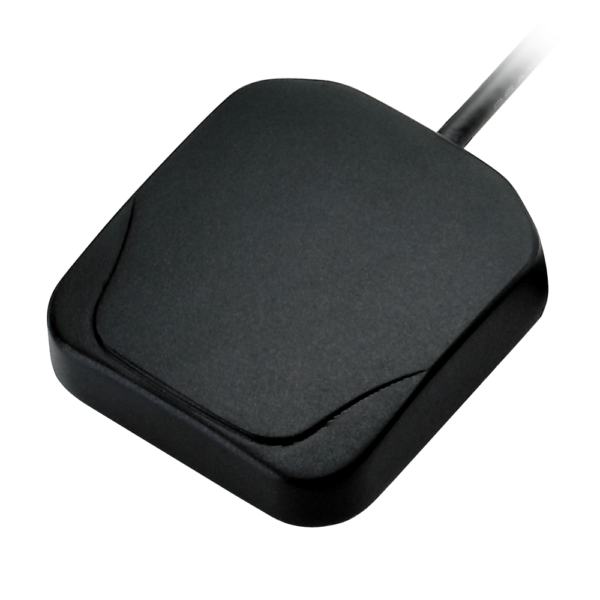

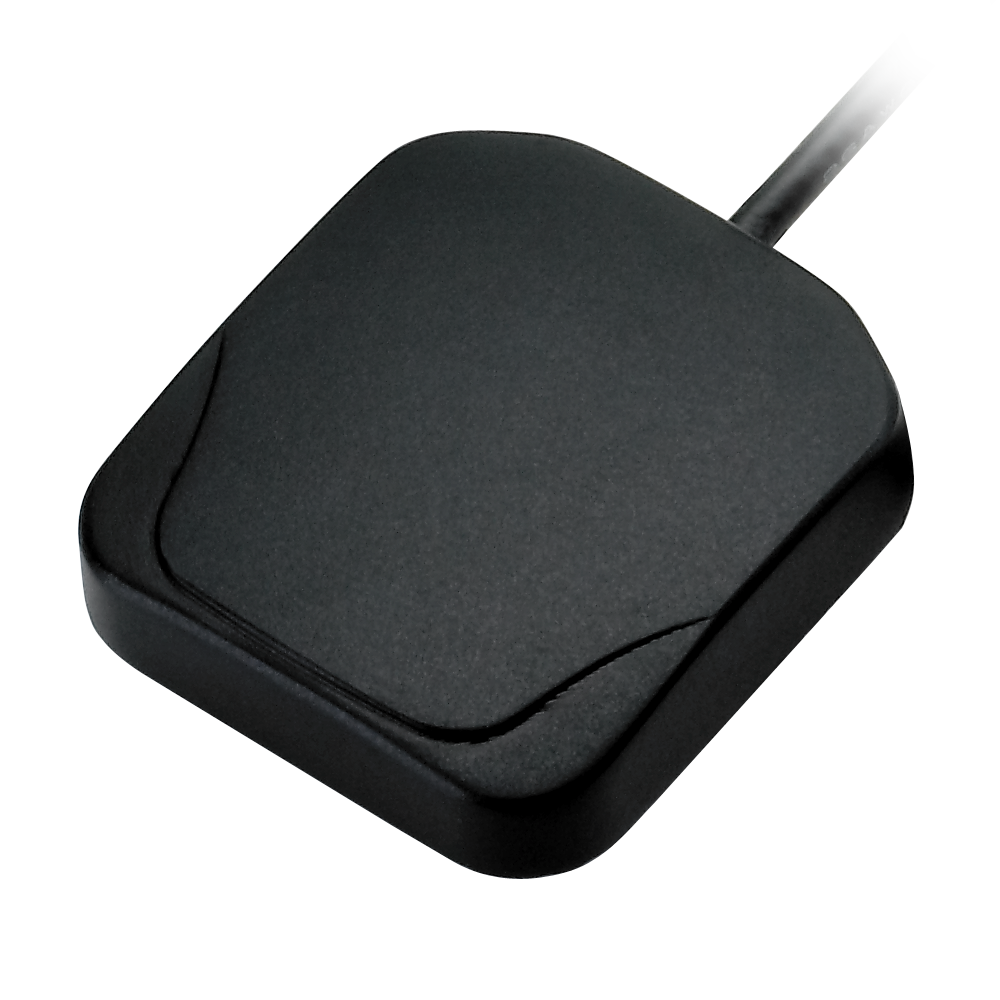

AA.166.A.301111 Ulysses Miniature Magnetic Mount Beidou/GPS/GLONASS/Galileo Antenna with 3000mm RG-174 SMA(M) 37.8*40.4*10mm
AA.166.A.301111
AA.166.A.301111
AA.166.A.301111 Ulysses Miniature Magnetic Mount Beidou/GPS/GLONASS/Galileo Antenna with 3000mm RG-174 SMA(M) 37.8*40.4*10mm
Overview
Triple GNSS System antenna – GPS, GLONASS, Galileo
The Ulysses miniature super low profile (only 10mm in height) is a Triple GNSS System antenna – GPS, GLONASS, Galileo antenna designed for applications which require high positioning accuracy by combining signals from GPS, GLONASS, and Galileo systems. A high gain wide-band patch antenna on an integral ground delivers reliable performance. Fully IP67 waterproof rating allows use in outdoor environments. Mid SAW filter configuration eliminates potential LNA burn-out from nearby out of band radiated power bursts from other antennas that may be co-located nearby. The antenna is manufactured to strict first-tier Automotive-quality controlled manufacturing process in an IATF16949 approved facility.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, GNSS |
| GNSS Type | Active GNSS |
| GNSS Bands | L1 |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Magnetic |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 40.4 |
| Width (mm) | 37.8 |
| Height (mm) | 10 |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1575.42MHz - 1610MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | <2 |
| Weight (g) | 65 |
| RoHS | Yes |
| Gain (Max) | 31.37 |
